6A–12 ENGINE MECHANICAL

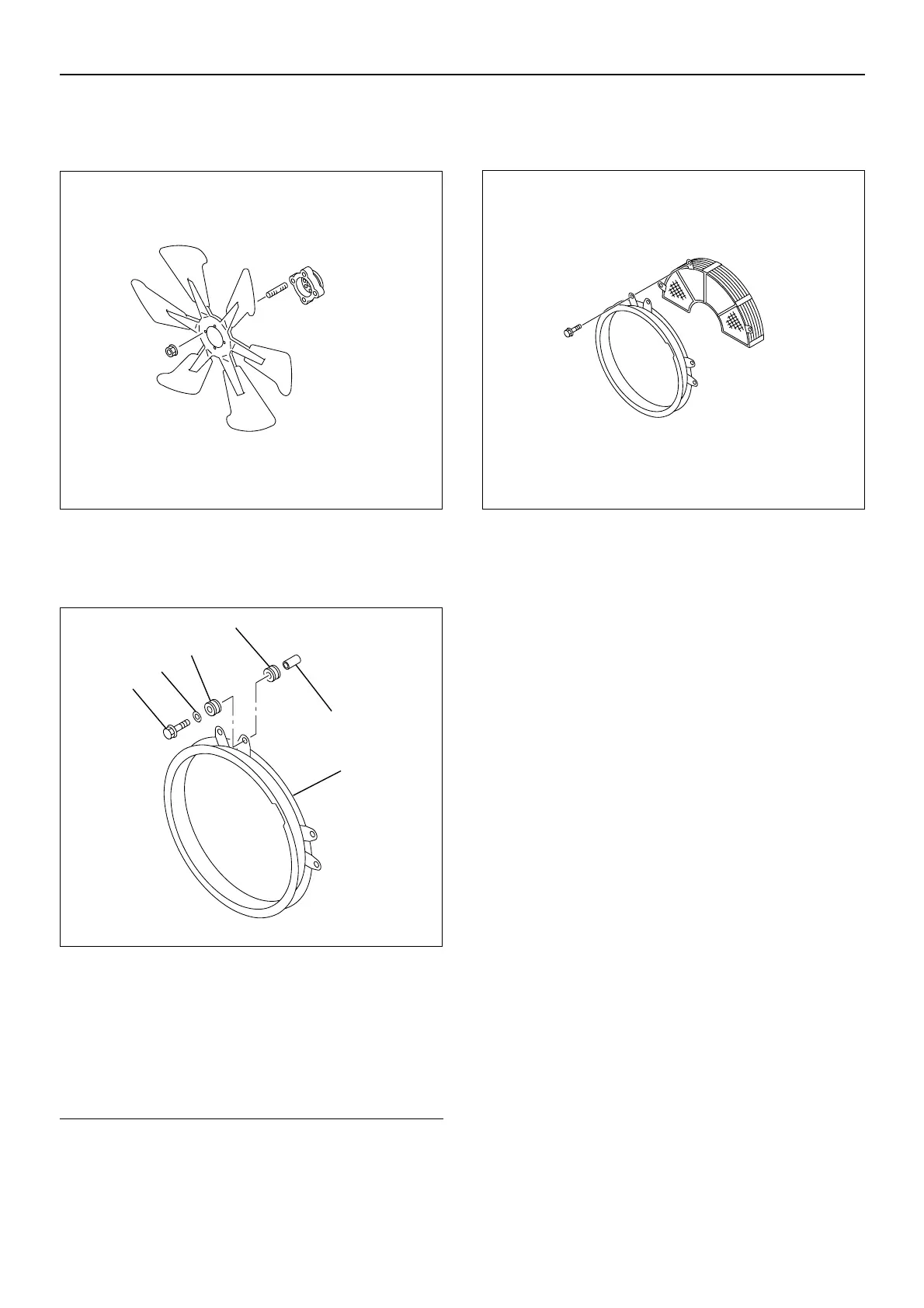

10.Install the cooling fan.
Tighten the fixing nuts to the specified torque.
Torque: 39 N·m (4.0 kgm/29 lbft)
11.Install the fan guide.
Tighten the fixing bolts to the specified torque.
Torque: 30 N·m (3.1 kgm/22 lbft)
Legend
(1) Bolt
(2) Washer
(3) Rubber mount
(4) Rubber mount
(5) Guide tube
(6) Fan guide
12.Install the fan guard.
Tighten the fixing bolts to the specified torque.
Torque: 40 N·m (4.1 kgm30 lbft)
13.Adjust the fan tip clearance.
Clearance: 7 - 13 mm (0.28 - 0.51 in)
033EY00003
1
2
4
5
3
6
033EY00029
033EY00007
