ENGINE MECHANICAL 6A–9
Water Pump
Removal

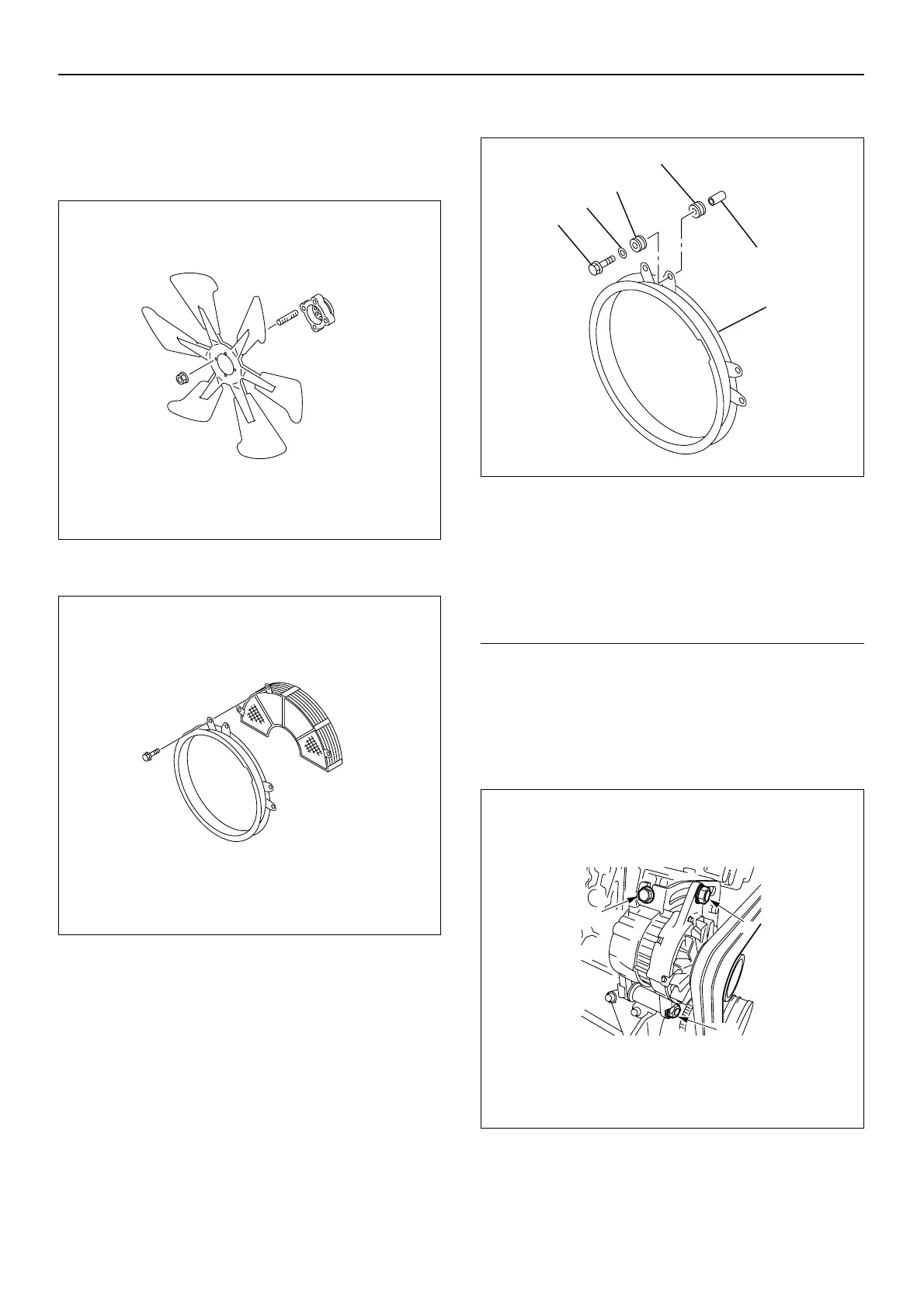

1. Loosen the fan fixing nuts to remove the cooling fan.
2. Remove the fan guard and fan guide.
Legend
(1) Bolt
(2) Washer
(3) Rubber mount
(4) Rubber mount
(5) Guide tube
(6) Fan guide
3. Loosen the fan pulley fixing bolts.
4. Remove the fan belt.
• Loosen the mounting bolt (2) and the sliding piece
nut (1).
• Pivot the alternator at the mounting bolt toward the
center of the engine.
033EY00003
033EY00007
1
2
4
5
3
6
033EY00029
1
3
2
066EY00003
