Power Supply Function

DIN40839

Evaluation of automotive starting

waveform

12V

Select the automotive

starting waveform with

a starting voltage of

12V.

24V

Select the automotive

starting waveform with

a starting voltage of

24V.

User-defined

The user customizes

the starting voltage of

the automotive starting

waveform.

V=8.00V

User-de-

fined volt-

age value

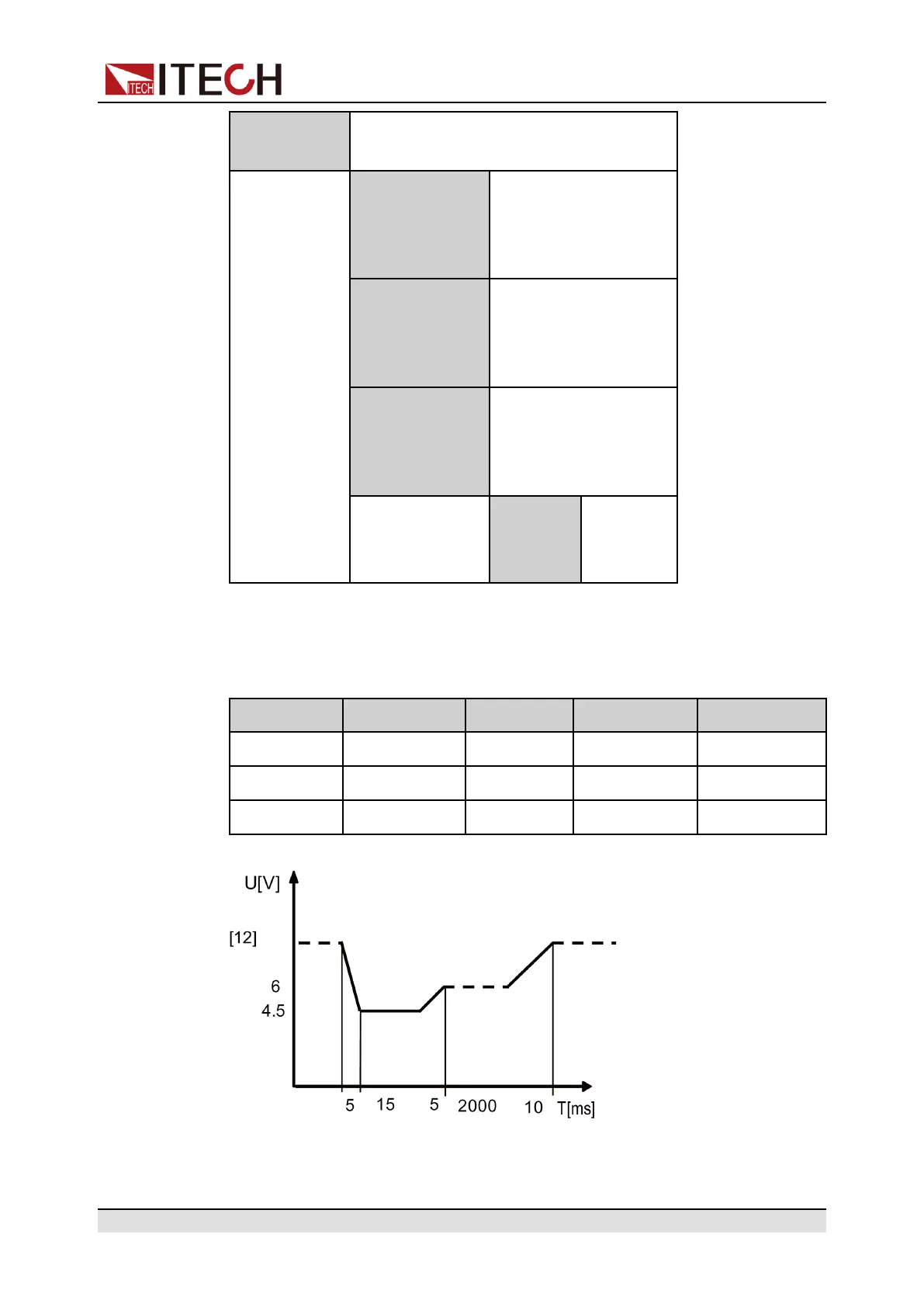

DIN40839 for 12V System

Steps Voltage (V) Current(A) Width(mS) Slope(mS)

1 4.5 60 15 5

2 6 60 2000 5

3 12 60 T 10

Warranty3
Limitation of Warranty3
Safety Symbols4
Safety Precautions4
Environmental Conditions6
Regulation Tag7
Waste Electrical and Electronic Equipment (WEEE) Directive8
Compliance Information9
Table of Contents10
Quick Reference13
Brief Introduction13
Front-Panel Overview15
Keyboard Introduction16
Push-On Knob18
Rear Panel Introduction19
VFD Indicator Lamps Description20
Configuration Menu Function21
System Menu Function23
Options Introduction27
Inspection and Installation30
Verifying the Shipment30
Instrument Size Introduction31
Connecting the Power Cord33
Connecting the Device under Test (DUT)37
Remote Interface Connection41
USB Interface41
LAN Interface42
CAN Interface46
GPIB Interface (Optional)48
Interface (Optional)49
Getting Started51
Power-On Self-Test51
Set Output Value55
Use the Front Panel Menu56
On/Off Control57
Power Supply Function58
Set the Output Voltage58
Set the Output Current58
Set the Output Power59
Config Menu for Power Supply59
Set the CC/CV Priority Mode59
Set the Internal Resistance63
Set the Output-On/Output-Off Delay63
Protection Function for Power Supply63
Set Over-Voltage Protection (OVP)66
Set Over-Current Protection (OCP)67
Set Over-Power Protection (OPP)68
Set Under-Current Protection (UCP)69
Set Under-Voltage Protection (UVP)70
Over-Temperature Protection (OTP)71
Sense Reverse Protection71
Function Menu for Power Supply72
LIST Function72
Battery Charging/Discharging Test Function79
Built-In Waveform Function82
Solar Photovoltaic Curve Simulation Function (SAS)115
Battery Simulation Function119
Basic Operation125
Local/Remote Mode Switch125
Key Lock Function125
Save and Recall Operations126
Save Operation127
Recall Operation127
Data Logging Function127
Set the Beeper Status (Beep)130
Set the Power-On State (Poweron)130
Sense Function (Sense)132
Select Trigger Source (Trig Source)133
Set the Communication Information (I/O Con)133
Set Parallel Operation Mode (Parallel)134
Digital I/O Function (Digital Port)138
IO-1. Ps-Clear, Not-Invert142
IO-2. Ps, Not-Invert144
IO-3. Off-Status, Not-Invert145
IO-4. Ext-Trig, Not-Invert147
IO-5. INH-Living, Not-Invert150
IO-6. Sync-On, Not-Invert153
IO-7. Sync-Off, Not-Invert155
Analogue Function (Ext-Program) (Optional)157
Restored to Factory Setting (System Reset)162
View the System Information (System Info)164
System Upgrade165
Technical Specification169
Main Specification169
158170
It6005C-80-150170
It6010C-80-300172
It6015C-80-450174
164176
It6006C-300-75176
It6012C-300-150178
It6018C-300-225180
170182
It6006C-500-40182
It6012C-500-80185
It6018C-500-120187
177189
It6006C-800-25189
It6012C-800-50191
It6018C-800-75193
1500V195
It6018C-1500-40195
2250V197
It6018C-2250-25197
Supplemental Characteristics200
Routine Maintenance201
Instrument Self-Test201
Cleaning and Maintenance201
Contact of ITECH Engineers202
Return for Repair203
A Appendix205
Specifications of Red and Black Test Cables205

Brand	ITech
Model	IT6012C-800-50
Category	Power Supply
Language	English

ITech IT6012C-800-50 User Manual
