1. Press the composite key [Shift] + [V-set] (Setup) to enter the Configuring
Menu.
2. Select “ Source” in the menu and press [Enter] for confirmation.
3. Select Limit with Left/Right key and press [Enter] for confirmation.
4. Set the V-Max with numeric key and press [Enter].
5. Set the V-Min with numeric key and press [Enter] for confirmation.
Or, select the maximum/minimum current or power with Arrow key.
6. Set maximum/minimum current or power with numeric key or press [Esc]
to exit menu setting.
After the maximum/minimum voltage is set, the output voltage can only be
set within this range. Vmax factory setting is the rated output voltage of
corresponding model of the power supply. V-Min is 0V.
3.14 Charge Protection
This power supply is applicable to battery charge test and provides charge
protection during battery charge test. Even when the internal load is activated,
the UUT will not be discharged. During charge protection, the power supply
switches off output as follows.
1. Power output is switched off ( On/Off key is lighted off) and power supply
will stop output.
2. The internal load discharges the capacity energy at power output through a
small current.
When abnormal capacity energy discharge is detected, the UUT connected
at the output terminal is a battery or other energy storage devices. Step 3
When capacity energy discharge of the power supply is normal, it means
that no energy storage device is found. Continue to discharge the current to
0V. End
3. The power supply will automatically switch off the internal load.
This protection function forbids UUT discharge to guarantee device safety.
It also avoids insufficient charge during battery charge test.
3.15 LIST Operation
IT6500D LIST mode comprises 10 files ( File1-File10) in total, and each has 10
waves. Each wave has 10 steps. You need to edit the voltage, current, pulse
width and rise/fall slope of each step. Each wave can set repetition, so does
each list file. Ten wave files can be linked in sequence under one list.

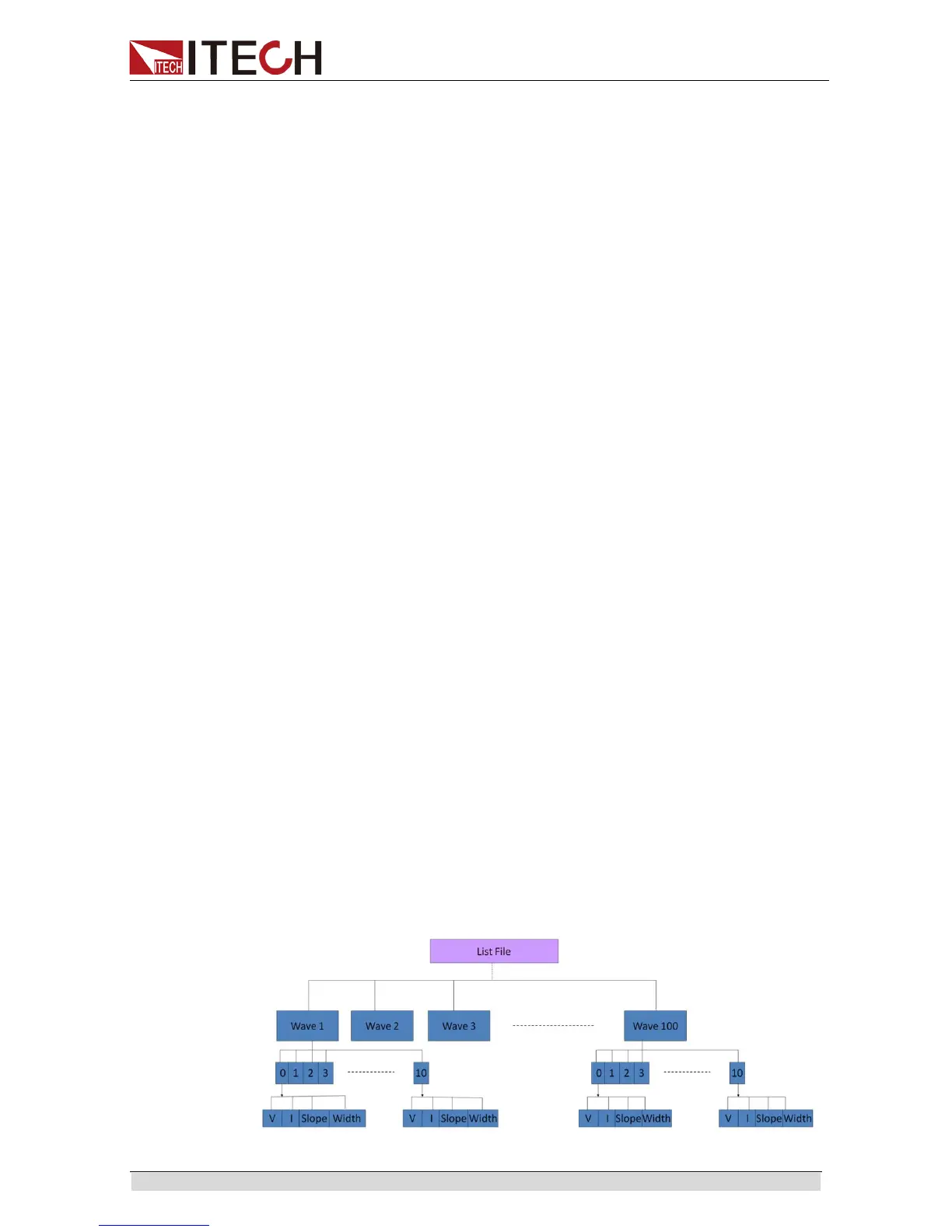

Relationship between List file and wave file is shown below.
