ITech IT6900 Series - 2.2 Introduction to Front Panel

Quick Start
Copyright ©ITECH Electronic Co., Ltd. 7
IT6933A
IT6933A(G)
150V
5A
200W
IT6942A
IT6942A(G)
60V
15A
360W
IT6952A
IT6952A(G)
60V
25A
600W
IT6953A
IT6953A(G)
150V
10A
600W
IT6922B
IT6922B(G)
60V
5A
100W
IT6932B
IT6932B(G)
60V
10A
200W
IT6933B
IT6933B(G)
150V
5A
200W
IT6942B
IT6942B(G)
60V
15A
360W
IT6952B
IT6952B(G)
60V
25A
600W
IT6953B
IT6953B(G)
150V
10A
600W
* IT6922B/IT6932B/IT6933B/IT6942B/IT6952B/IT6953B have standard RS485
communication interface and external Analog control Interface.
*IT6900(G) is the model with built-in GPIB, the function is the same as standard
model, please check with ITECH for availability.

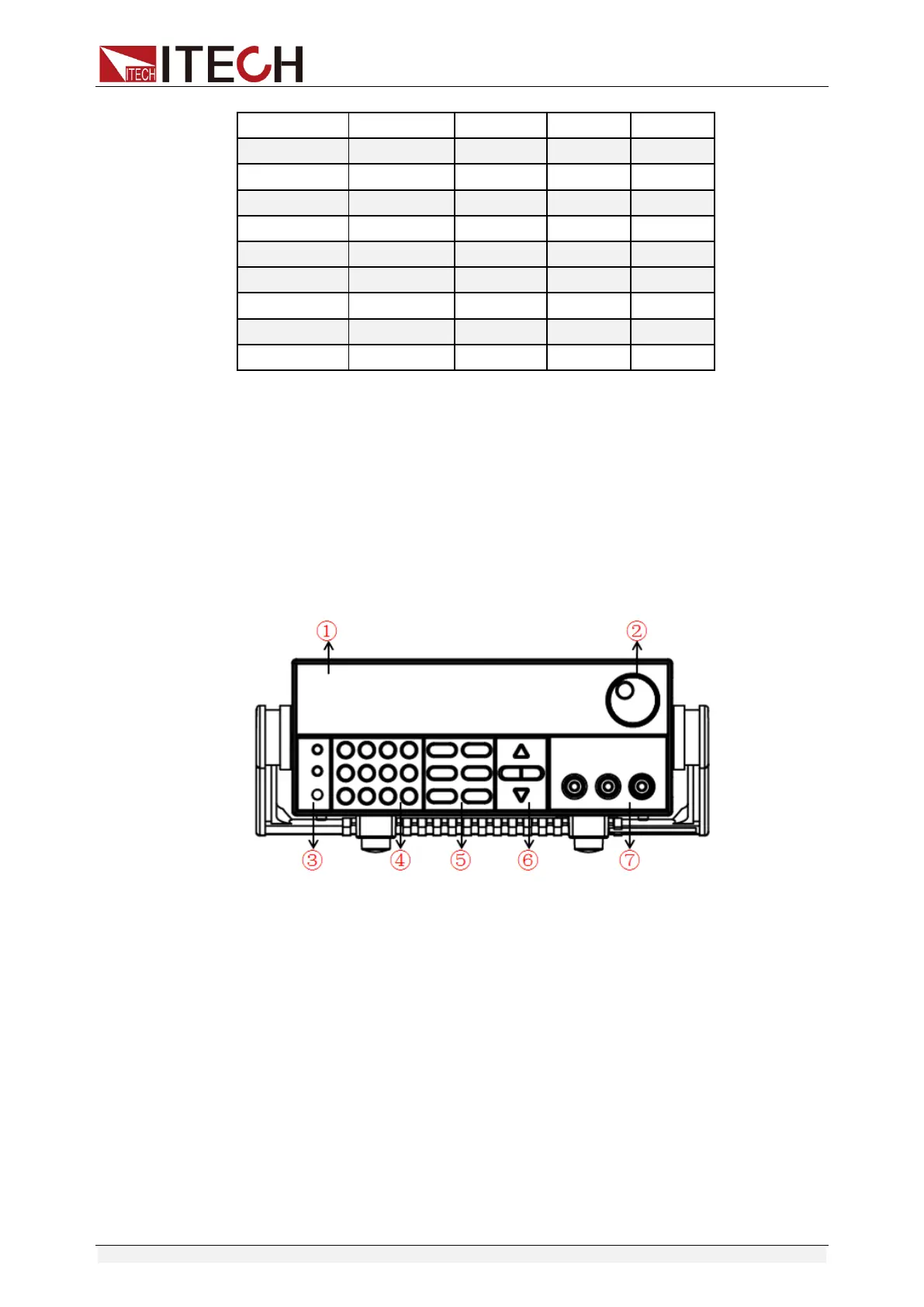

2.2 Introduction to Front Panel
The front panel of IT6900 series is shown in the next figure.
1. VFD display
2.
Rotary knob
3.
Compound key, the local switch key and power switch
4.
Number keys and ESC
5.
Function keys
6.
UP/DOWN/LEFT and RIGHT key, to move cursor
7.
Output terminals
