2.3 Key Introduction

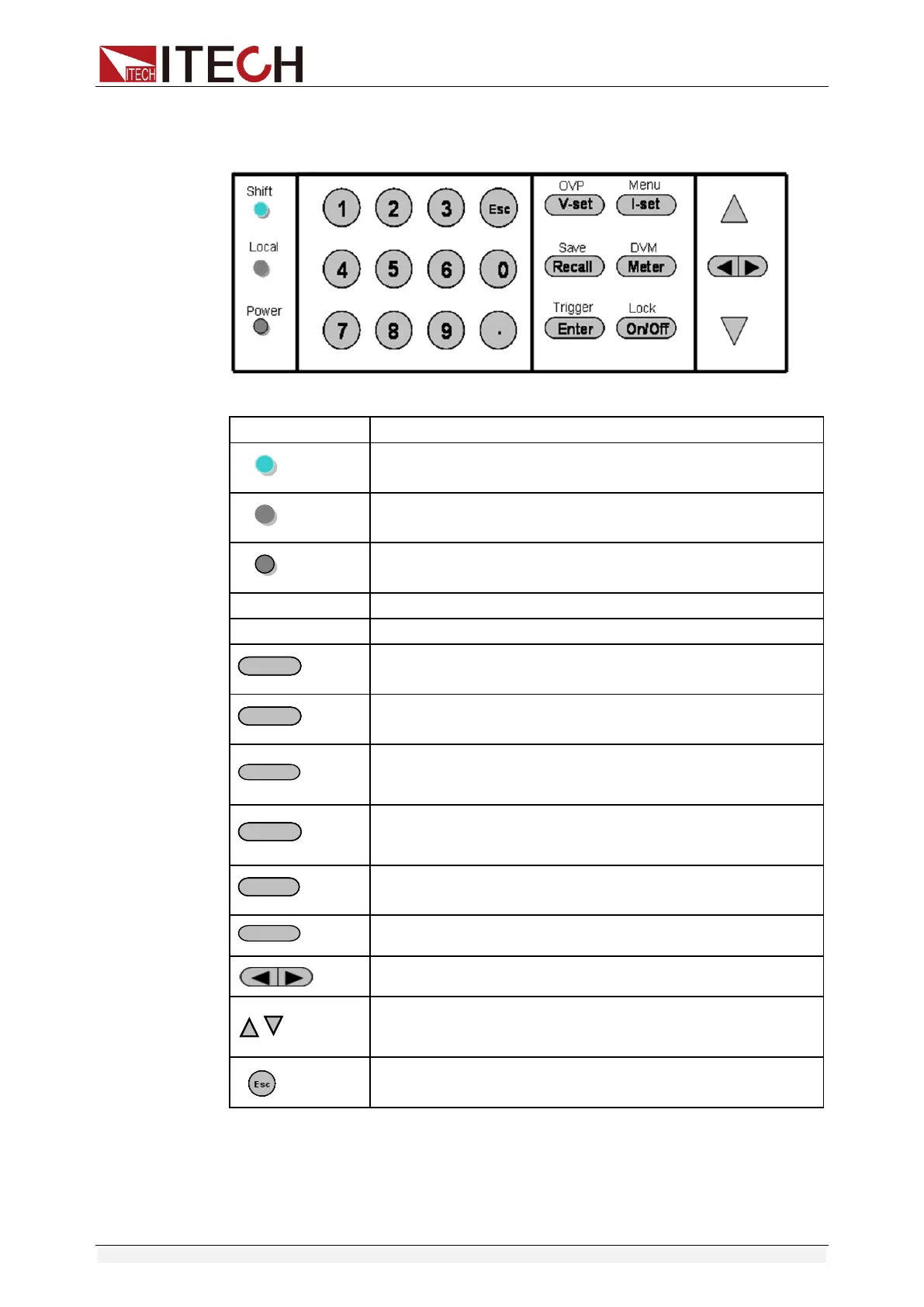

Key description, see the table below:
Keys
Name and the function
(Shift)
Compound key, co-work with OVP, Menu, Save, DVM,
Trigger, Lock
(Local)
Local switch key, switch from remote mode to local
operation mode.
(Power)
Power on key
0-9
Numeric keys
.
Decimal point
V-setV-set
/OVP
Voltage set key, set the output voltage/over voltage
protection point for the power supply.
I-setI-set
/Menu
Current set key, set the output current/menu function key,
to set the relevant Parameters for the power supply.
Recall
/Save
Callback key to call up a set value of system parameters
already stored / storage key, to save system parameter
settings.
MeterMeter
/DVM
Meter key, to switch from value set panel and the actual
output value display / voltage meter function keys, to
switch to the measure state of the voltage meter.
EnterEnter
/Trigger
Enter key, to confirm the number entered and operation /
trigger button, which is used to trigger the List test.
On/Off
/Lock
Output on (off) keys, control power output state / keypad
lock function keys, used to lock the panel buttons.
Left and right movement keys, used to set the value, to
adjust the cursor to the specified location.
Up and down keys, used to select a item in the menu or
increase (decrease) the output voltage or current
values.
Cancel /return keys.
