User Guide

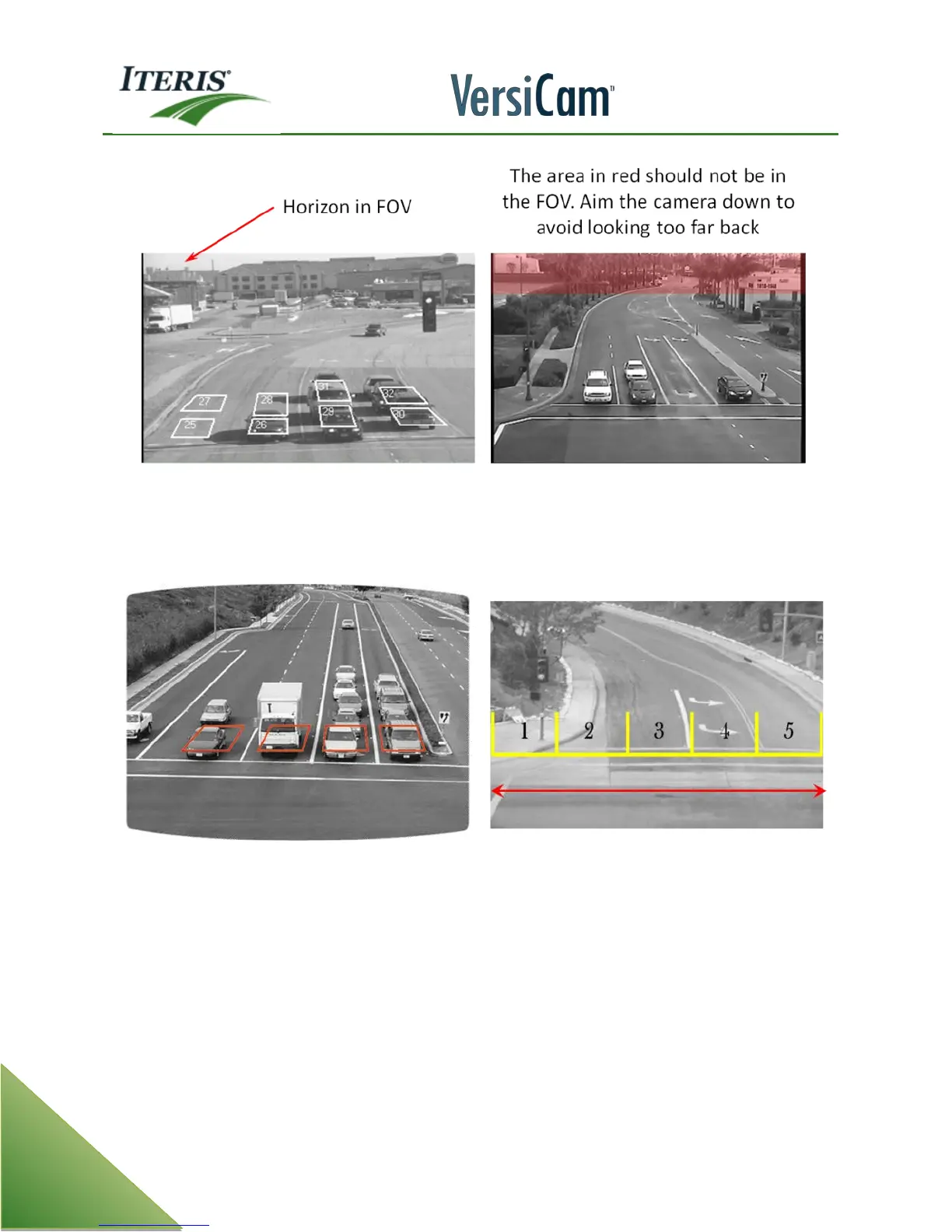

Examples of Poor FOVs
Ideally, the camera should be zoomed in until a minimum of 4 lanes are visible, the horizon should not be
included as a part of the field of view. The zones should be drawn within the lane lines and should be the size
of a medium vehicle.
Examples of Good FOVs
f. Zones
• Size of average vehicle – 12’ (3.6m) long from top line to bottom line of zone
• Vertical markings, curbs and gutters out of zone area
• Symbol markings contained in zone
• LC zones properly drawn
• And/W number same as zone number if not being used
It’s Easy – Left click the mouse button when the cursor is over the "Add" menu item, which is the first choice
on the left side of the main menu bar. The sub menu will be displayed showing the various zone parameters
of the vehicle detection zone that you are about to create. You can change the zone settings by left or right
