Section 2, Mounting the Heater Unit
International Thermal Research 2-5
2.5 Remote Operating Panel Mounting
Procedure
The Basic or Touchscreen Remote Operating Panel is mounted
inside the Coach, in an easy to access location. An opening for the
remote panel must be cut in the wall or mounting panel. The
Remote Operating Panel will be screwed in place using the 4
mounting holes.

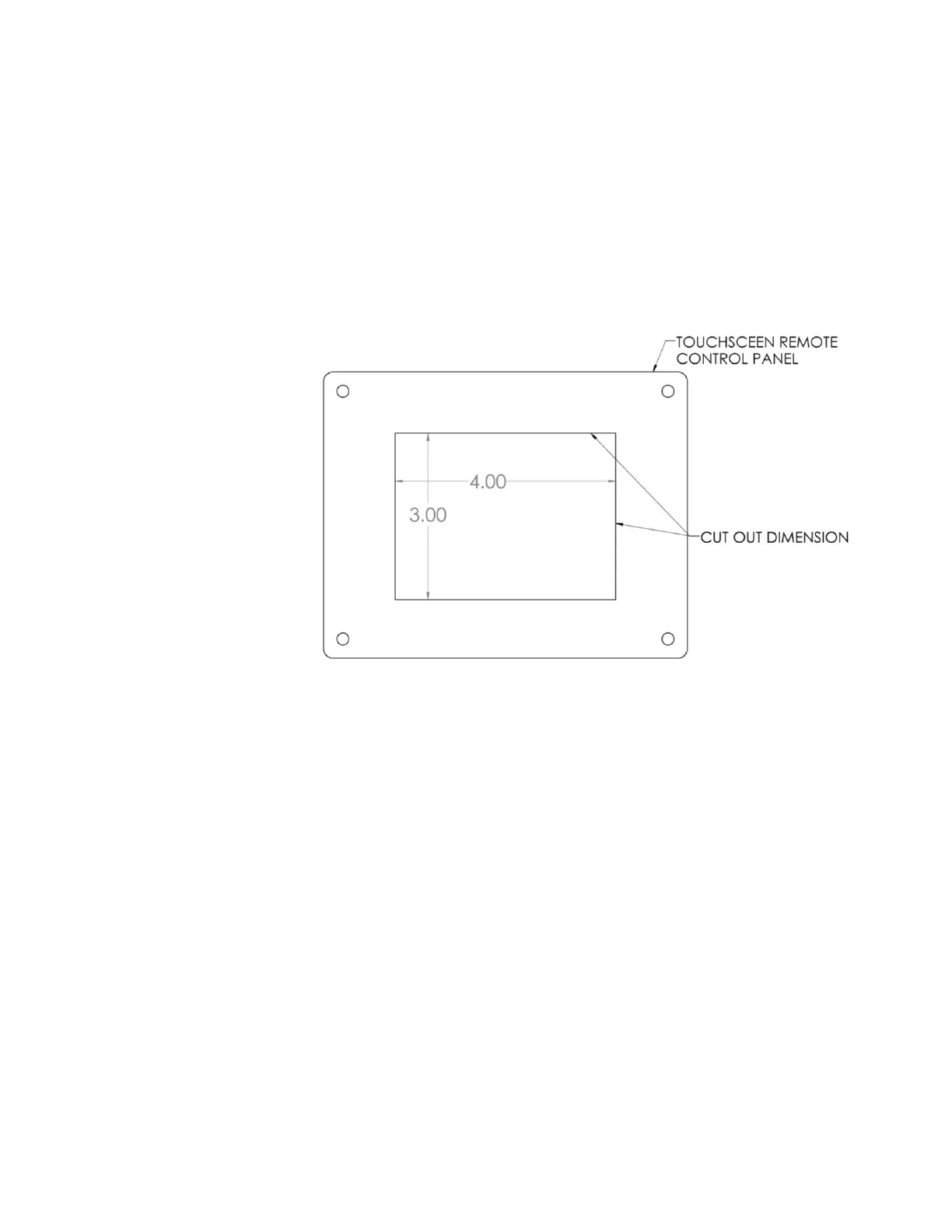

Figure 2-3: Basic and Touchscreen Operating Panel Mounting
