Section 7, Plumbing the System
7-4 Installation Manual for Oasis
®
SCH33™ Heating System

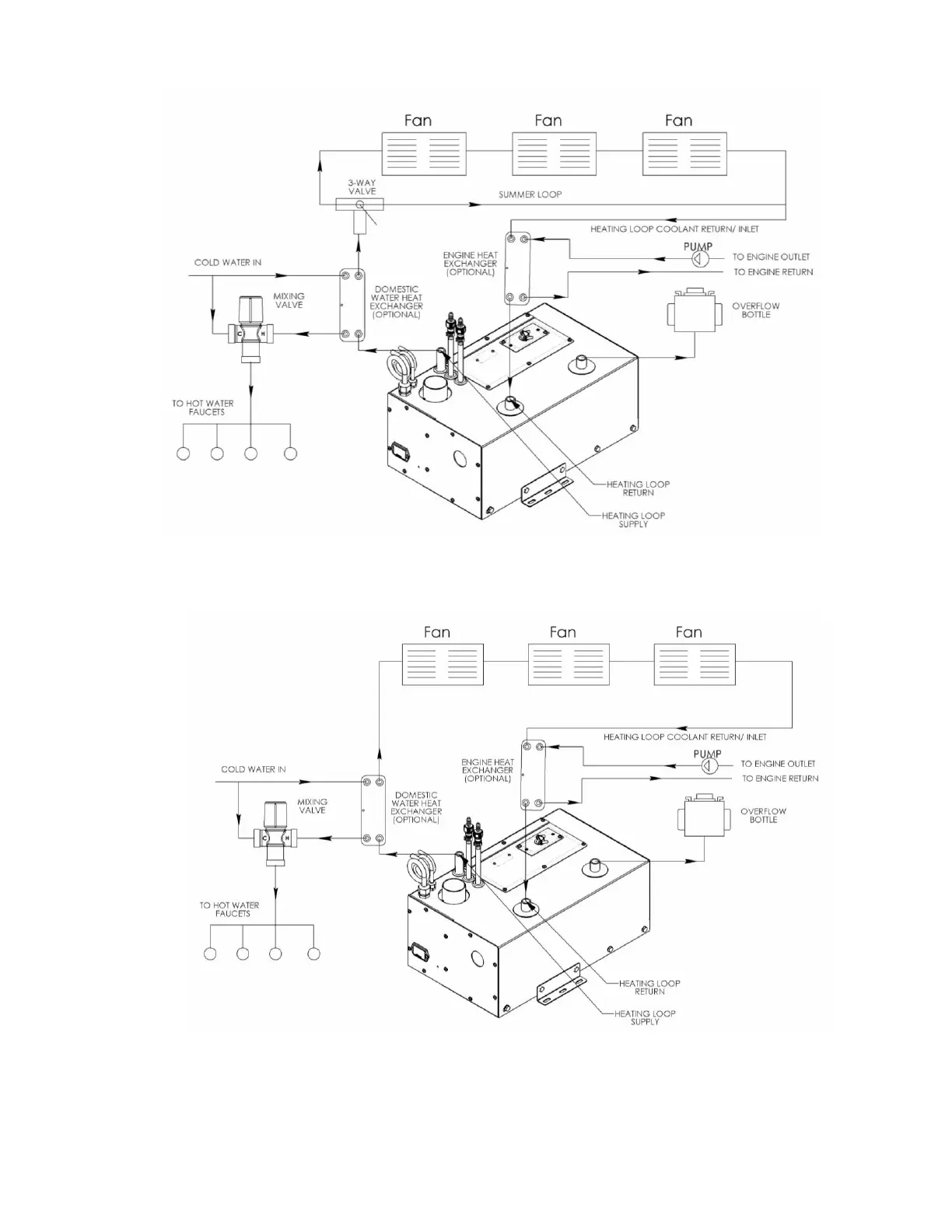

Figure 7-2: Plumbing Oasis SCH33 with optional summer loop
for potable water and engine waste heat/pre-heat options
Figure 7-3: Plumbing Oasis SCH33 with potable water and
engine waste heat/pre-heat options
