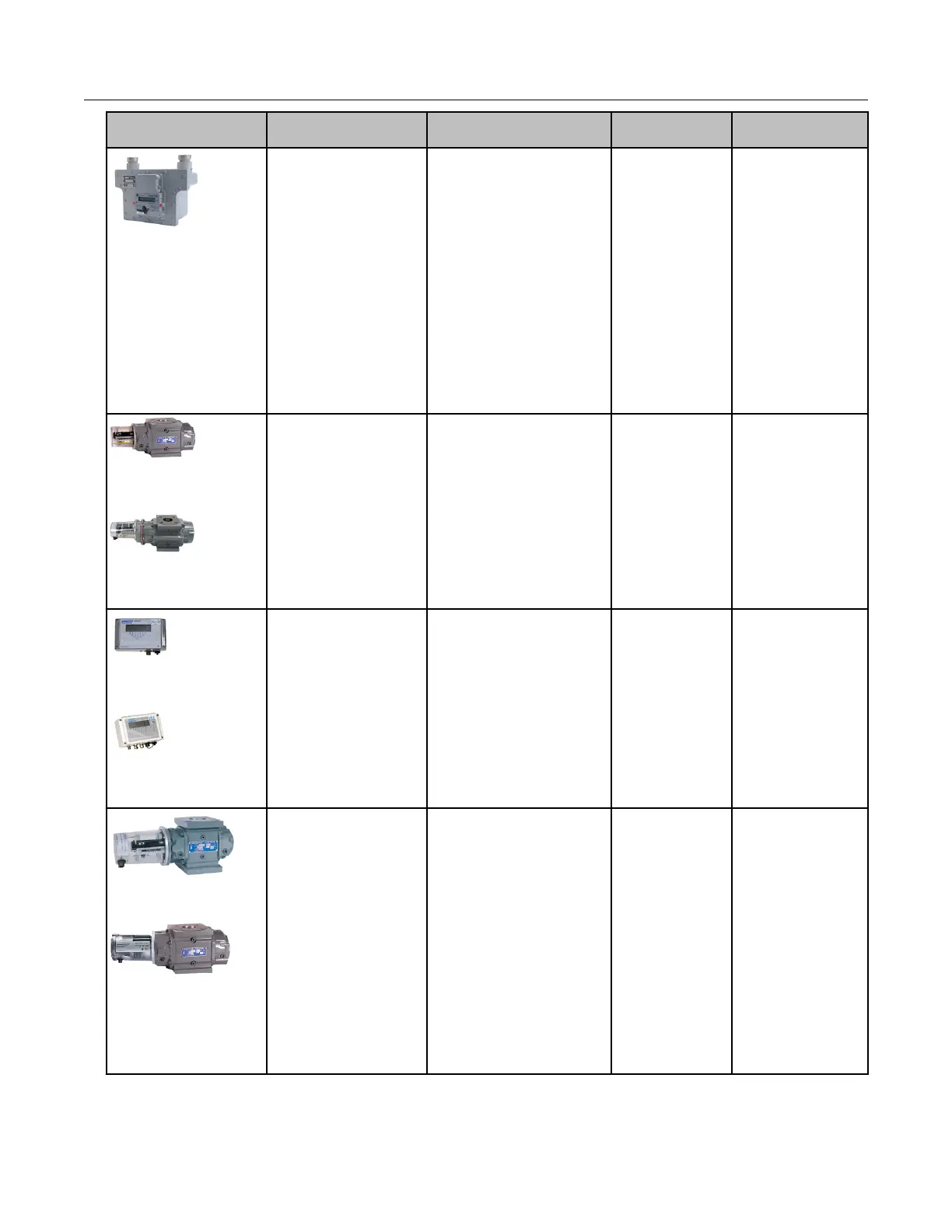

ITRON 100G DLS Datalogging User Manual

Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
D800/D1000
Pulse width must be set
greater than 100 ms.
Firmware version must
be 1.71 or higher.
100G
100G
100G Datalogging
100G Datalogging
100G Datalogging FN
100G Datalogging FN
100G DLS Datalogging
100G DLS Datalogging
100G DLT Datalogging
100G DLT Datalogging
ERG-5000-503
ERG-5000-505
ERG-5002-503
ERG-5002-505
ERG-5003-503
ERG-5003-505
ERG-5006-503
ERG-5006-505
ERG-5007-503
ERG-5007-505
Both modules are
compatible with
these meter models.
B3 Series pulse output
meter
LMMA pulse output
meter
Rotary meters equipped
with WeighandWire
solid state pulsers.
Meter must have
factory-installed pulser
with connector output.
Purchase correct cable
interface from GE
Dresser. Pulser must be
version 17 or higher.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-503
ERG-5002-503
ERG-5003-503
ERG-5006-503
ERG-5007-503
Integral Micro
Corrector IMC/W2
Integral Micro
Corrector MC2
Electronic volume
corrector for Series A
(LMMA) and Series B
(rotary meters). Must be
meter firmware version
1.94 or earlier. Pulse
width must be set for
125ms.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-505
ERG-5002-505
ERG-5003-505
ERG-5006-505
ERG-5007-505
Series 3 ES3 meter
Electronic
Temperature
Compensator (ETC)
Pulse width must be set
greater than 100ms.
Firmware version 1.71
or earlier.
100G
100G
100G Datalogging
100G Datalogging
100G Datalogging FN
100G Datalogging FN
100G DLS Datalogging
100G DLS Datalogging
100G DLT Datalogging
100G DLT Datalogging
ERG-5000-503
ERG-5000-505
ERG-5002-503
ERG-5002-505
ERG-5003-503
ERG-5003-505
ERG-5006-503
ERG-5006-505
ERG-5007-503
ERG-5007-505
Both ERT modules
are compatible with
this meter model.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 32
Proprietary and Confidential

ITRON 100G DLS Datalogging Specifications

General

Brand	ITRON
Model	100G DLS Datalogging
Category	Control Unit
Language	English
