ITRON 100G DLS Datalogging User Manual

Sensus meter installation
This section describes 100G series remote ERT module on compatible Sensus meters.

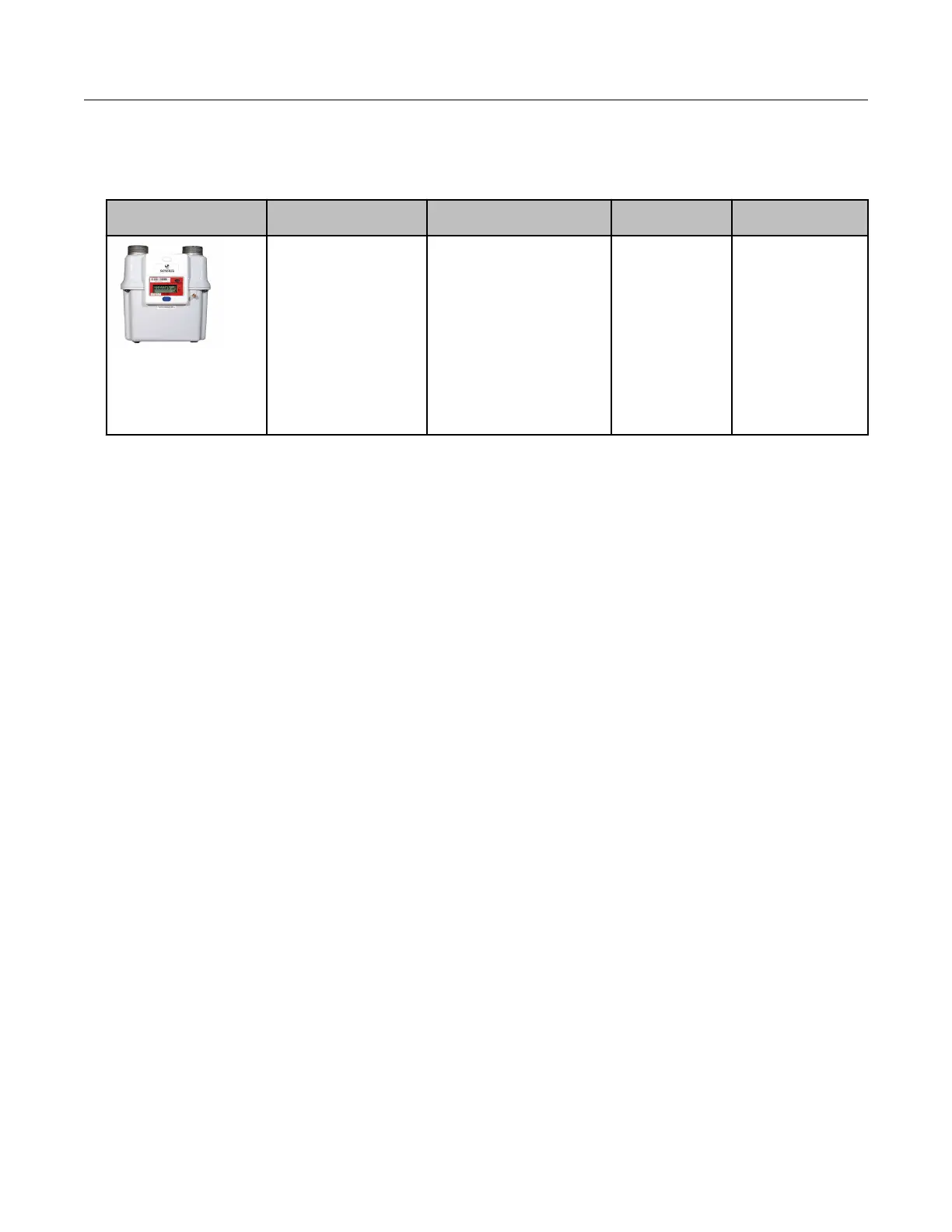

Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
Sonix pulse output 12,
16, 25, 57 (Metric)
600, 880, 2000 (cubic
foot)
Sonix meters are pulse
output registers which
are programmed by
Sensus software.
Proper pulse output
options and display
options must be
selected.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-503
ERG-5002-503
ERG-5003-503
ERG-5006-503
ERG-5007-503
Sensus meter installation overview
Installing the remote module to a Sensus meter involves tasks:
1. Programming the meter.
2. Mounting the 100G remote ERT module. The module may be mounted on a pipe or flat
surface (see Mounting the 100G Series Remote Gas ERT Module on page 8). Select the
mounting option appropriate for your installation. Mounting options include:
• Wall mount on a sheet metal surface
• Pipe mount using the Itron pipe mount kit CFG-0005-003
3. Connecting the remote module to the meter.
4. Programming the remote module. For programming information, see 100G Series
Remote Module Programming on page 13.
Sensus product mounting instructions
The Sensus factory can direct mount the 100G remote ERT module to Sensus Sonix Meters
(contact Sensus North American Gas Customer Service for mounting specifications and
ordering information). This section includes the instructions for customers to mount the
module on the Sonix meter using the mounting materials available from Sensus Metering
Systems.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 62
Proprietary and Confidential
