ITRON 100G DLS Datalogging User Manual

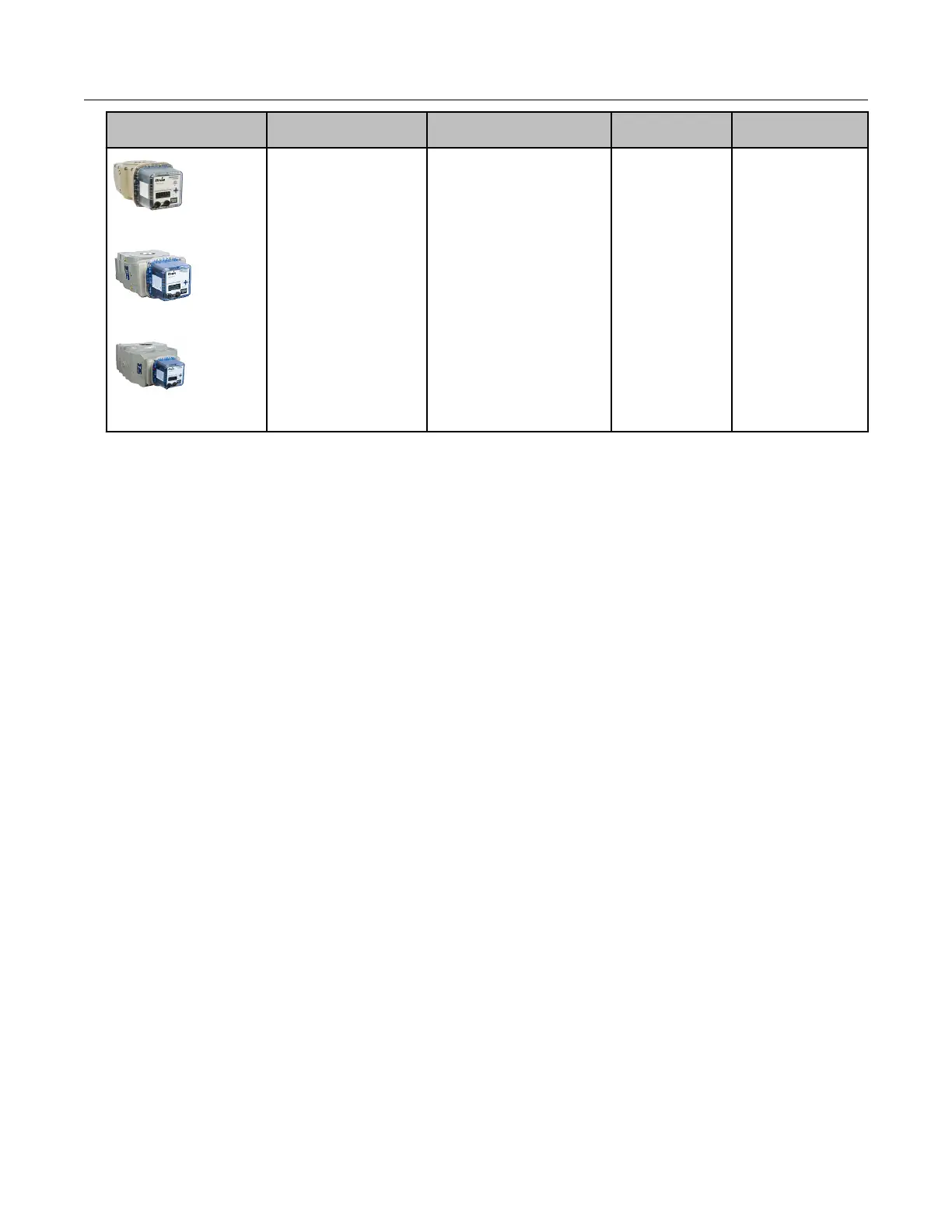

Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
DATTUS III fM1
DATTUS III fM2
DATTUS III fM3
For all meter types
pulse width must be set
to .050 seconds. Meter
type 11M or smaller
must have pulse weight
minimum of 10 cubic
feet or 1 cubic meter.
Meter type 16Mm must
have pulse weight
minimum of 100 cubic
feet or 1 cubic meter.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-502
ERG-5002-502
ERG-5003-502
ERG-5006-502
ERG-5007-502
Itron meter installation overview
Installing the 100G remote ERT module to a DATTUS III meter requires the following
materials:
• A remote module compatible with the DATTUS III meter.
• Itron DATTUS III meter compatible with the module.
• Tools and devices to complete installation and programming.
Installing the remote module to a DATTUS III meter involves five tasks:
1. Programming the meter (see the Itron DATTUS-Link Programming Guide for more
information).
2. Installing any necessary Itron retrofit parts. Customers can request that Binder
connectors be installed by Itron prior to shipment.
3. Mounting the 100G remote ERT module. The module may be mounted on a pipe or flat
surface (see Mounting the 100G Series Remote Gas ERT Module on page 8). Mounting
options include:
• Wall mount on a sheet metal surface
• Pipe mount using the Itron pipe mount kit CFG-0005-00
4. Connecting the remote module to the DATTUS III meter.
5. Programming the remote module (see 100G Series Remote Module Programming on
page 13).
DATTUS meters provide an electronic pulse output compatible with the remote module. The
DATTUS meter may be wired to the ERT module using the pulse output cable or the module
can be directly mounted to the meter.
When ordering, customers can order a factory-installed connector (attached to the module's
bare leads). The connector directly fits the pulse output on the DATTUS III meter.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 52
Proprietary and Confidential
