ITRON 100G DLS Datalogging User Manual

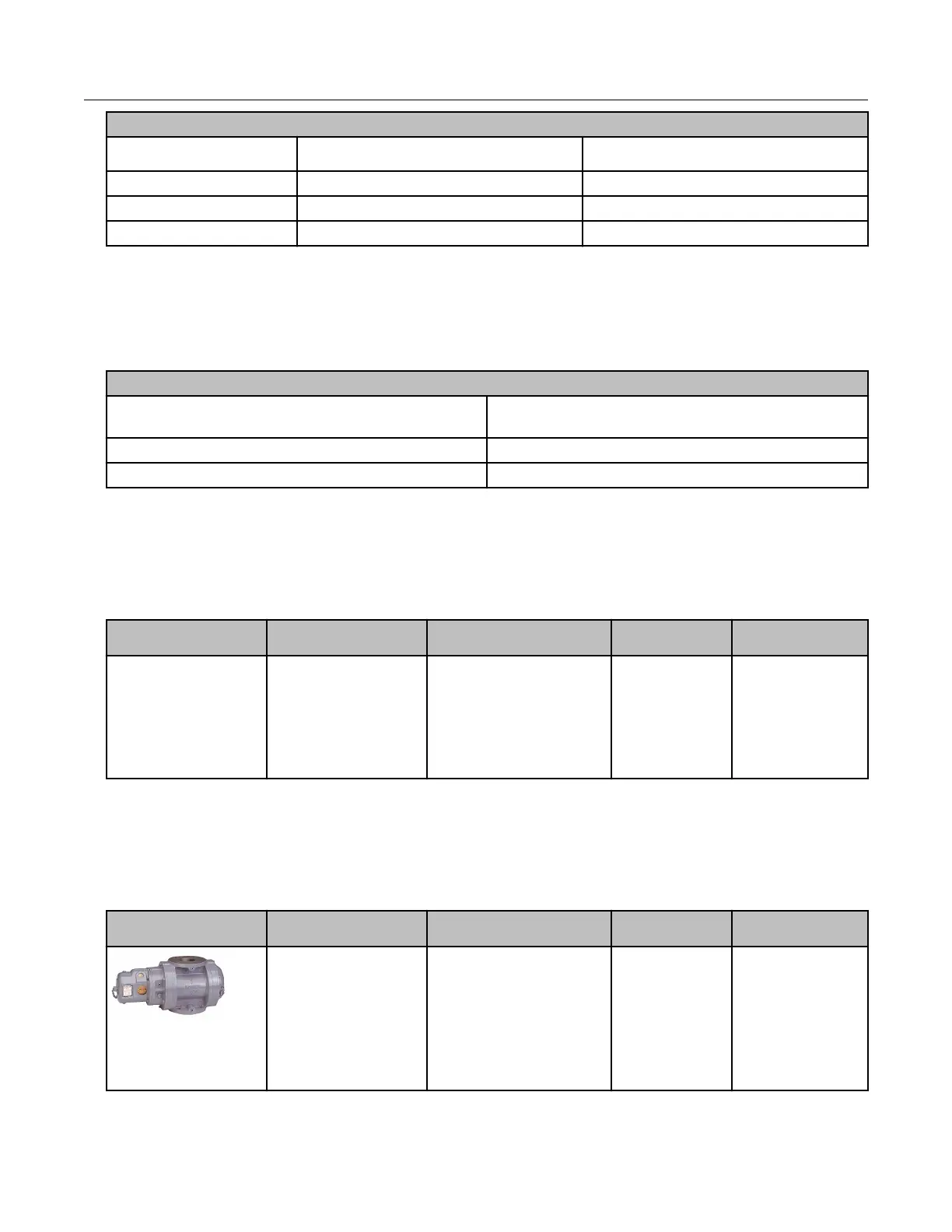

DATTUS III wiring pulse output cable pin descriptions
Function Pulse output cable wire color
ERT module wire color
Output + White White
Cut cable Blue Blue
Ground - Pink Red
Itron meter programming and requirements
Program the DATTUS meter with the correct pulse width and weight. For all DATTUS III
type meters, the pulse width must be set to .050 seconds.
DATTUS meter pulse weight settings
Meter type Pulse weight in cubic feet (CF) or cubic meter
(CM)
11M or smaller 10 (CF) or 1 CM
16M or greater 100 CF or 1 CM
National meter installation
National/Lancaster meters are compatible with 100G remote modules with an encoder
cable. See Diaphragm Meter Installation on page 65 for installation instructions.
Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
All meters Where direct mount
solution is not
compatible
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-501
ERG-5002-501
ERG-5003-501
ERG-5006-501
ERG-5007-501
Romet meter installation
This section describes installation for Romet meters and correctors compatible with Itron
100G series remote ERT modules.
Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
RM Series STD CTR
600-5600
TC 2000-23000
Meter must have
factory-installed pulser
with connector output.
Purchase cable
interface from
manufacturer.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-503
ERG-5002-503
ERG-5003-503
ERG-5006-503
ERG-5007-503
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 54
Proprietary and Confidential
