ITRON CENTRON CP1S - Figure 23: Load Emulator Segment Progression for Received Power

Operation: CP1SD/T/L Version
CENTRON® Polyphase Meter Technical Reference Guide 35

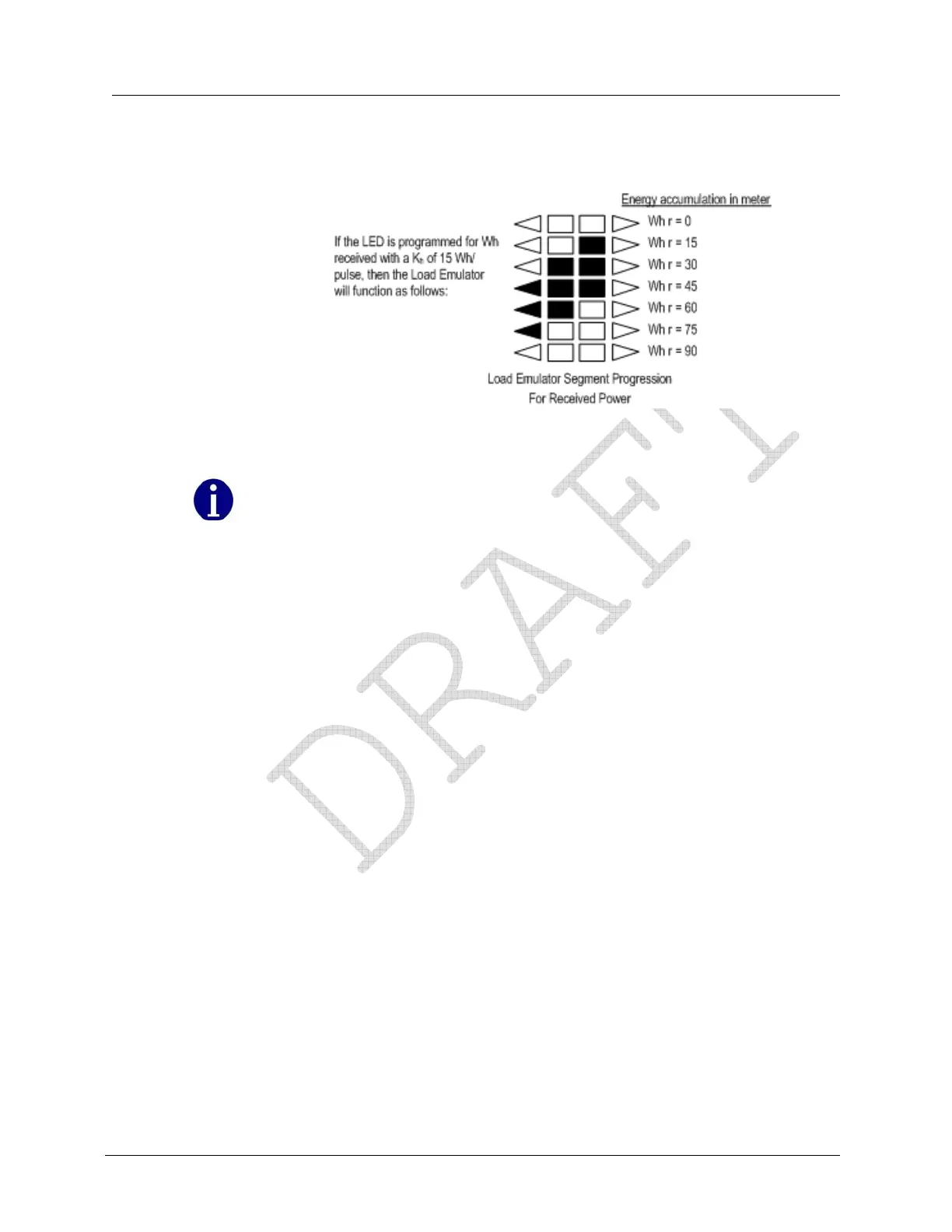

Figure 23: Load Emulator Segment Progression for Received Power
Several uni-directional quantities are available. When these quantities are programmed to
LED, both the LED and the load emulator will function for delivered and received
quantities.
