14

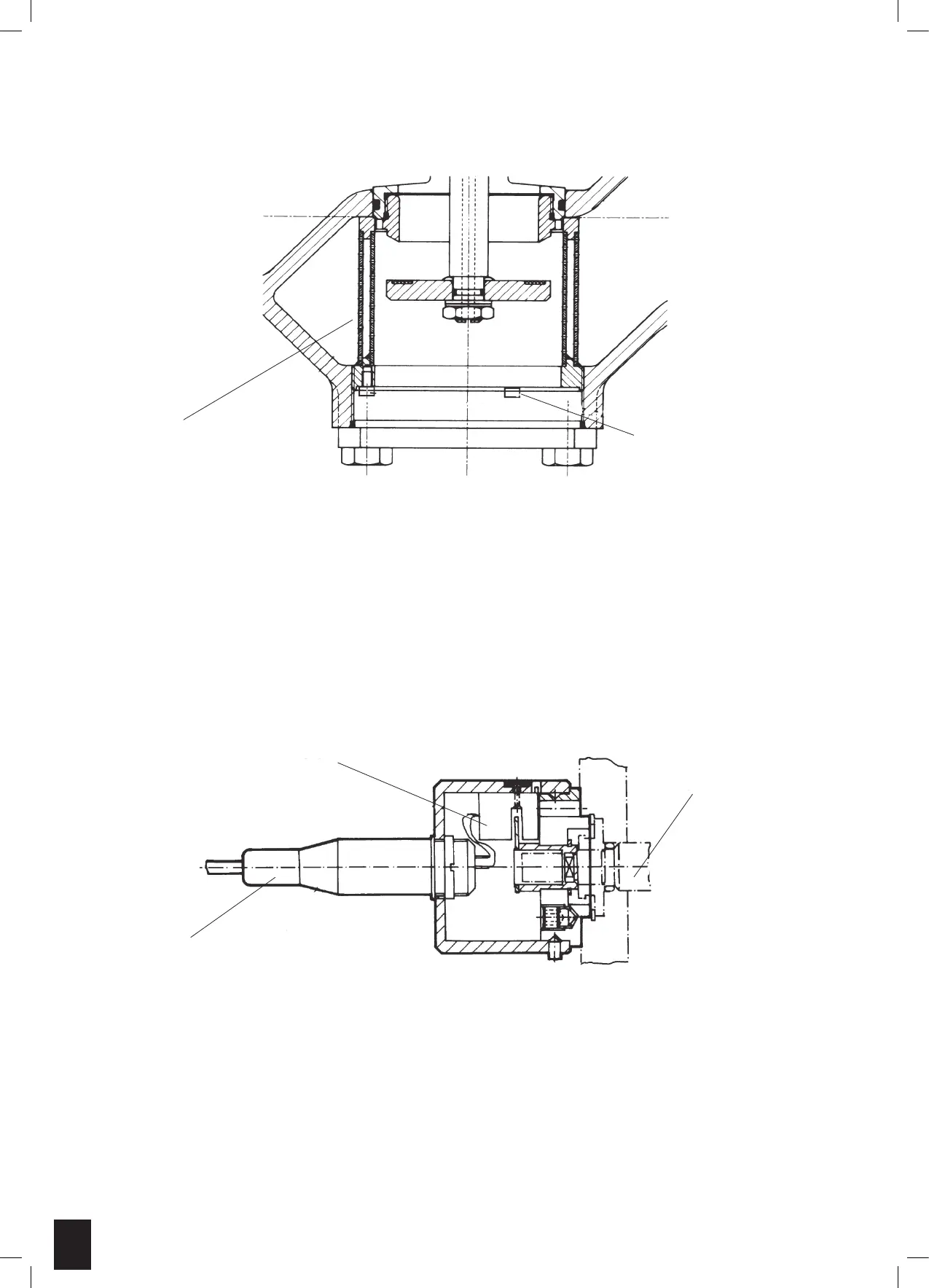

ASSEMBLY (OPTIONAL) OF SILENCER, RESPECTIVELY SSV POSITION INDICATOR:
Silencer
Plug
Reset shaft
Initiator
Assembly aid:
3 M 4 x 10
DIN 912
For assembly/disassembly, screw in Allen screws M 4 x 10 and screw out sound insulation with tool no. 74-11-381.01 (DN 50 only),
DN 25 und DN 80 directly with SW 22 hex spanner.
SSV position indicator for assembly* at the reset shaft (SL, 022, 033) or at the gear (SID)
*order Technical Info 142-099-6001
