Goulds Pumps Ma-
terial Code
Material ASTM DIN ISO JIS
2255 17-4PH A564, Type 630 1.4542 (SUS630) (SUS630)
2256 316L SS A276 316L 1.4542 — SUS630
2260 317L SS — 1.4404 — SUS316L
2344 904L — 1.4438 — SUS317L
2379 6% to 7% Moly Duplex A4709 (S31254) — — —
2380 Ferralium — — — —
2441 Stainless steel F738M — A1-50 —
2442 Carbon steel — — 898-1 Class 8.8 —
3201 Carbon steel (plate) A283 GR D — — —
3211 316SS A240 Type 316 — — —
3265 Alloy 2205 A240 1.4462 — —
3280 Alloy 2507 A479/A479M 1.4501 — —
8.2 Assembly drawings (exploded views)

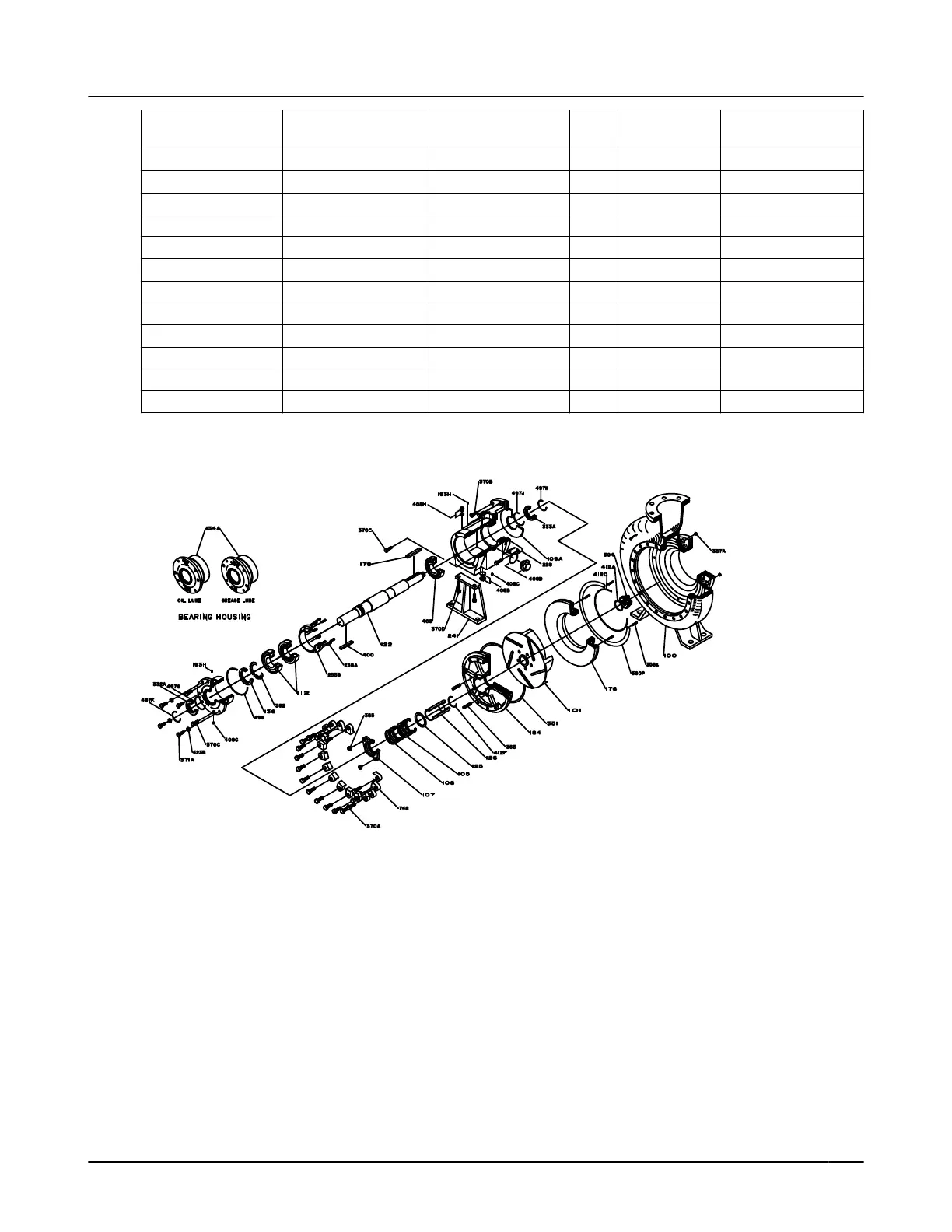

Figure 39: Exploded view of 3180 and 3185 S, M, L, and XL groups
8.2 Assembly drawings (exploded views)
Models 3180, 3181, 3185, and 3186 Installation, Operation, and Maintenance Manual 135
