5.6.1 Install the coupling guard
WARNING:
•
Running a pump without safety devices exposes operators to risk of serious personal in-
jury or death. Never operate a unit unless appropriate safety devices (guards, etc.) are
properly installed.
• Failure to disconnect and lock out driver power may result in serious physical injury or
death. Always disconnect and lock out power to the driver before performing any installa-
tion or maintenance tasks.
• Electrical connections must be made by certified electricians in compliance with all
international, national, state, and local rules.
• Refer to driver/coupling/gear manufacturer's installation and operation manuals
(IOM) for specific instructions and recommendations.
WARNING:
The coupling guard used in an ATEX classified environment must be constructed from a
spark resistant material.

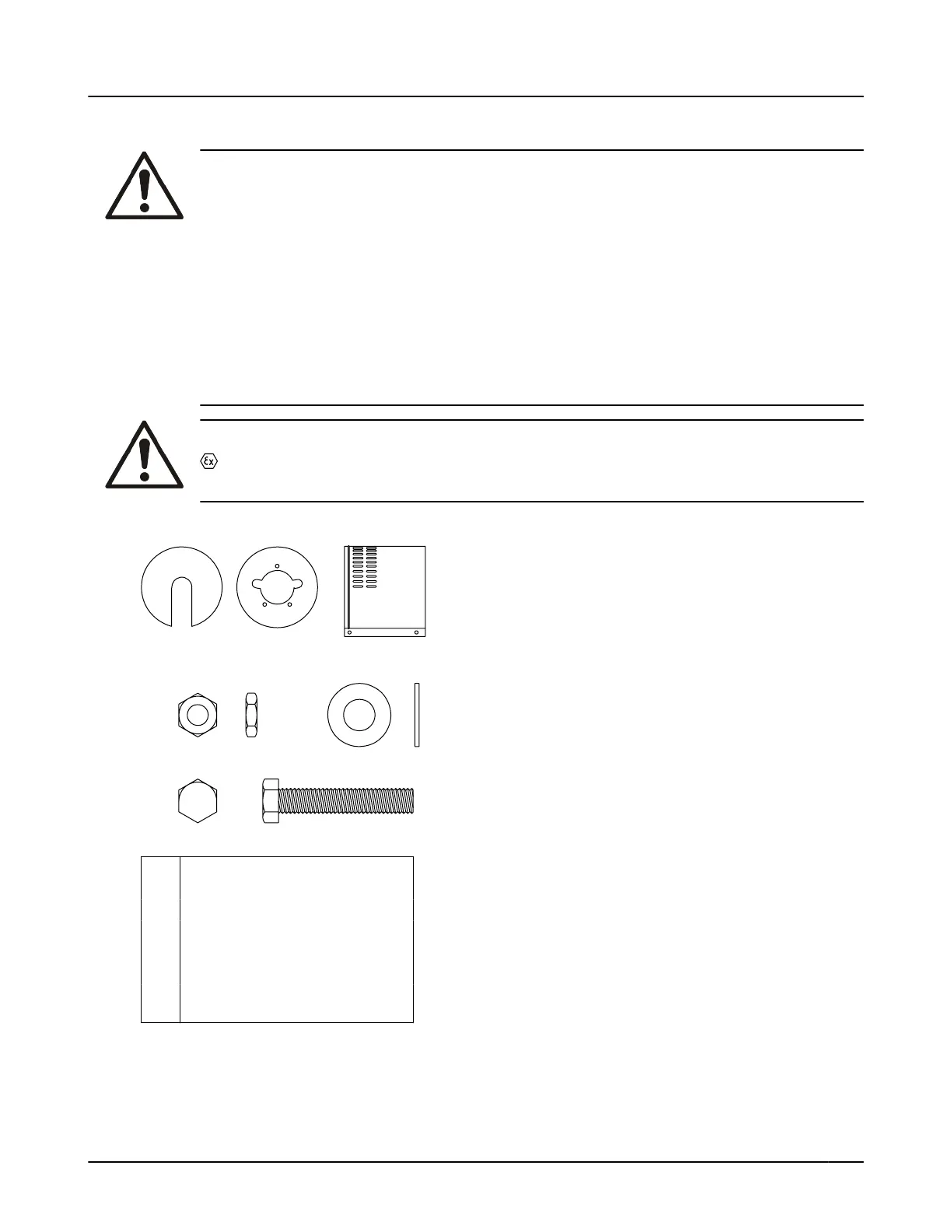

Required parts:
Item Description
1. End plate, drive end
2. End plate, pump end
3. Guard half, 2 required
4. 3/8-16 nut, 3 required
5. 3/8 in. washer
6. 3/8-16 x 2 in. hex head bolt, 3 re-
quired
Figure 27: Required parts
1.
De-energize the motor, place the motor in a locked-out position, and place a caution tag at the start-
er that indicates the disconnect.
2. Put the pump-side end plate in place.
If the pump-side end plate is already in place, make any necessary coupling adjustments and then
proceed to the next step.
5.6 Couple the pump and driver
Models 3180, 3181, 3185, and 3186 Installation, Operation, and Maintenance Manual 55
