63
5. Operation and Configuration

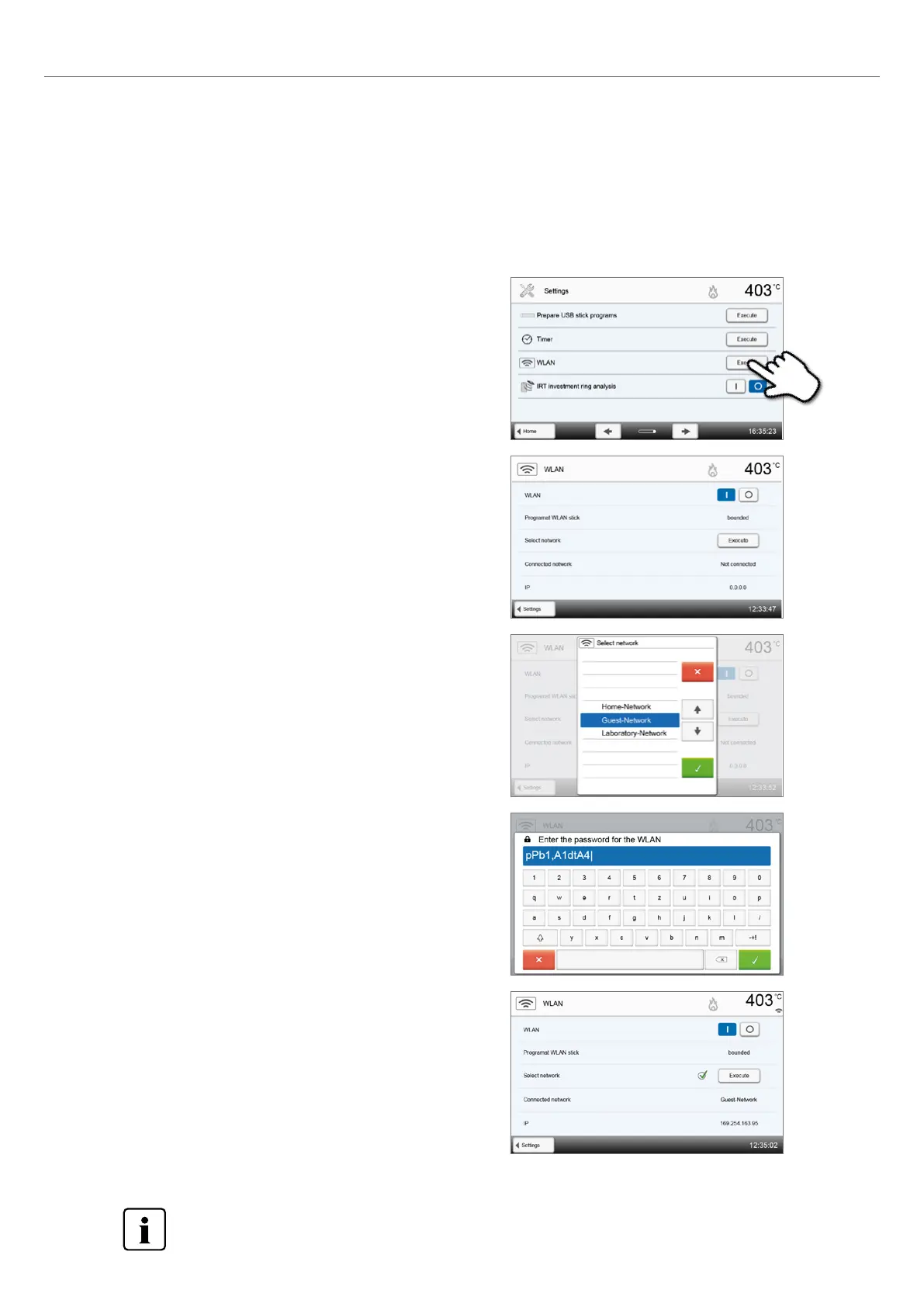

5.4.9 Setting up a WLAN connection
A WLAN connection can be set-up in this Settings menu. This function is only available if the Programat WLAN Stick has
been connected with the furnace.
The set-up requires only a few steps:
1. Switch WLAN on.
2. Press the [Execute] button to show available WLAN
networks.
3. Select the desired network.
4. Enter the WLAN password and confirm with the green
button or abort the entry with the red button.
5. The WLAN connection was successfully set up.
After the initial set-up of the WLAN connection, the furnace automatically connects with the network last used at
every new start, provided the network is available.
Only 2.4 GHz networks with the following security standards are
supported:
– WEP 64-bit
– WEP 128-bit
– WPA-PSK TKIP
– WPA-PSK AES
– WPA2-PSK TKIP+AES
– WPA2-PSK AES.
