MONITOR DESCRIPTION
Model 3150-B Operation Manual
13

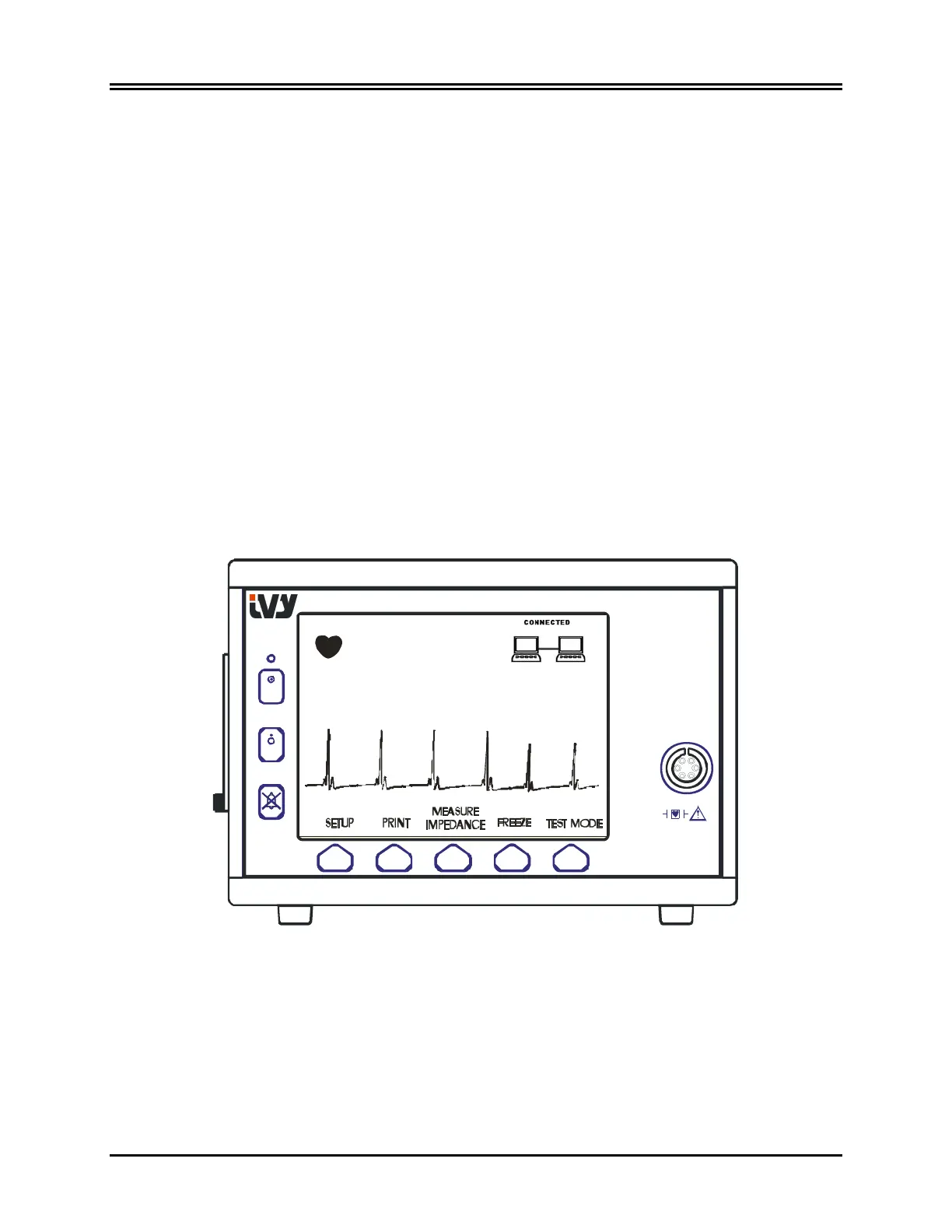

Display
HEART RATE: Displayed in beats per minute (bpm) on the upper part of the screen.
SETUP: Selections made in the menu setup modes (alarm limits, lead selection, and filter on/off) are displayed in
small characters at the upper left corner.
ECG: Trace is displayed across the screen moving from left to right.
System Interlock: Large symbols in the upper right hand corner of the display provide the operator with a visual
indication of the status of the connection between the Model 3150-B and the CT Scanner.
XRAY On/Off: Indicates that the CT-Scanner X-Ray is “ON” or the CT Scanner X-Ray is “OFF”. The XRAY
On/Off indicator is located in the upper right hand corner of the display.
Impedance Measurement: Displays the measured value of the impedance between the patient’s skin and each
individual ECG electrode (RA, LA, and LL). Impedance measurements are located in the upper right hand corner of
the display.
STBY
ON
ON
ECG
150
HR
I-FILT
60 - 160
REC: DIRECT
18-JUL-2002
11 :40
20 MM/MV
80
I-FILT
RE C : D I R EC T
20 MM/MV
11:40
RA LA LL
9K 10k 12k
XRAY O FF
Cardiac Trigger Monitor 3150
PATI EN T I D 8 5 8 7 4 5
PAC ER D E TE C T
DISABLED
