SYSTEM INTERLOCK OPERATION
26 Model 3150-B Operation Manual
SYSTEM INTERLOCK OPERATION
System Interlock Messages
When the Model 3150-B is interfaced via the rear auxiliary connector to a CT Scanner, the monitor can store ECG
data and transfer this data to a USB Memory Stick .
The system interlock feature is designed to indicate to the system operator:
1. That the monitor and the CT Scanner “is connected” or the CT Scanner is “not connected”
2. That the CT-Scanner X-Ray is “ON” or the CT Scanner X-Ray is “OFF”.

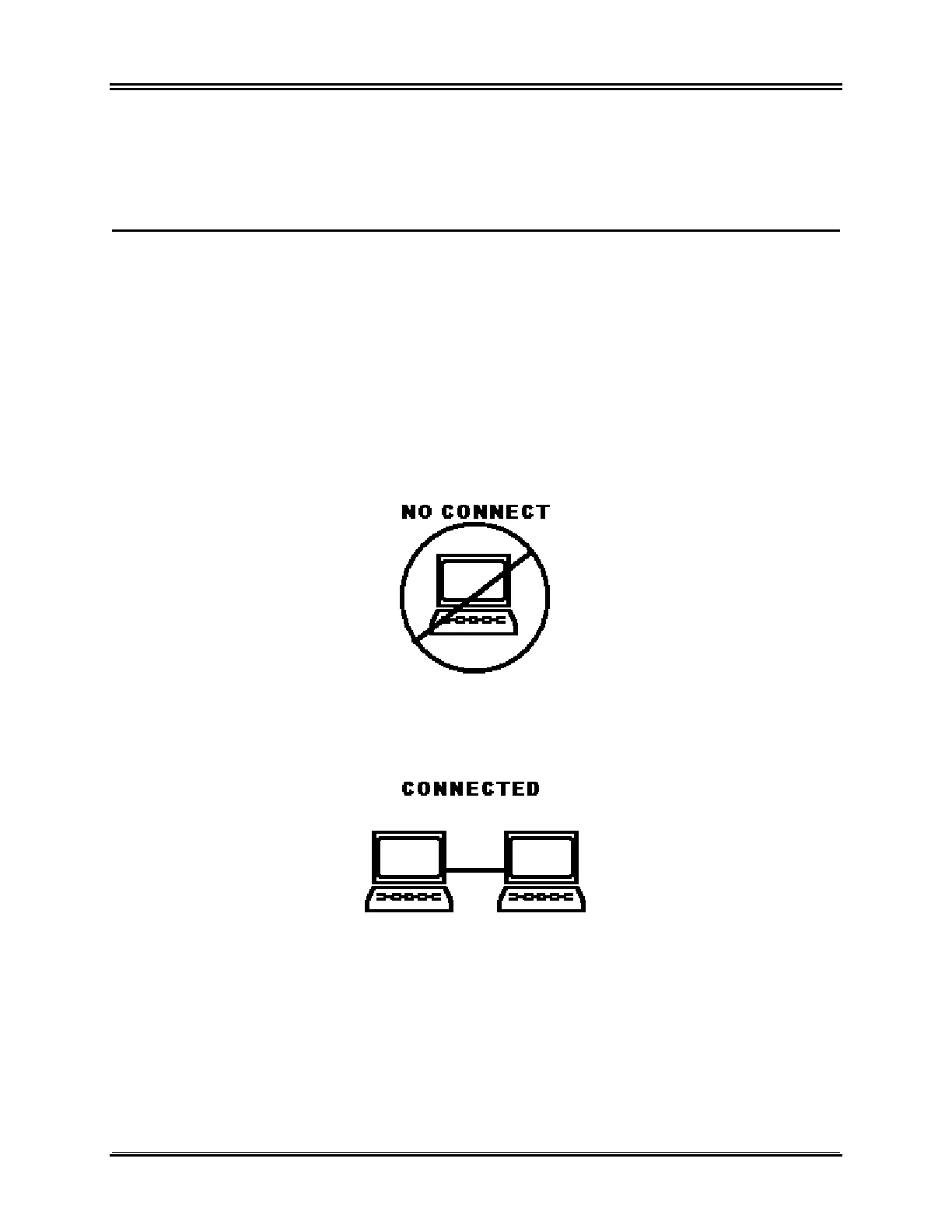

1. Large symbols in the upper right hand corner of the display provide the operator with a visual indication of the
status of the connection between the monitor and the CT Scanner
This symbol indicates that the Model 3150-B and the CT Scanner ARE NOT interfaced correctly.
This symbol indicates that the Model 3150-B and the CT Scanner ARE interfaced correctly.
2. Additional information is provide to the operator concerning the status of the CT Scanner X-Ray. In a window
just below the CONNECTED symbol a text message is displayed. When the CT Scanner X-Ray is off XRAY
OFF is displayed. When the CT Scanner X-Ray is on XRAY ON is displayed.
