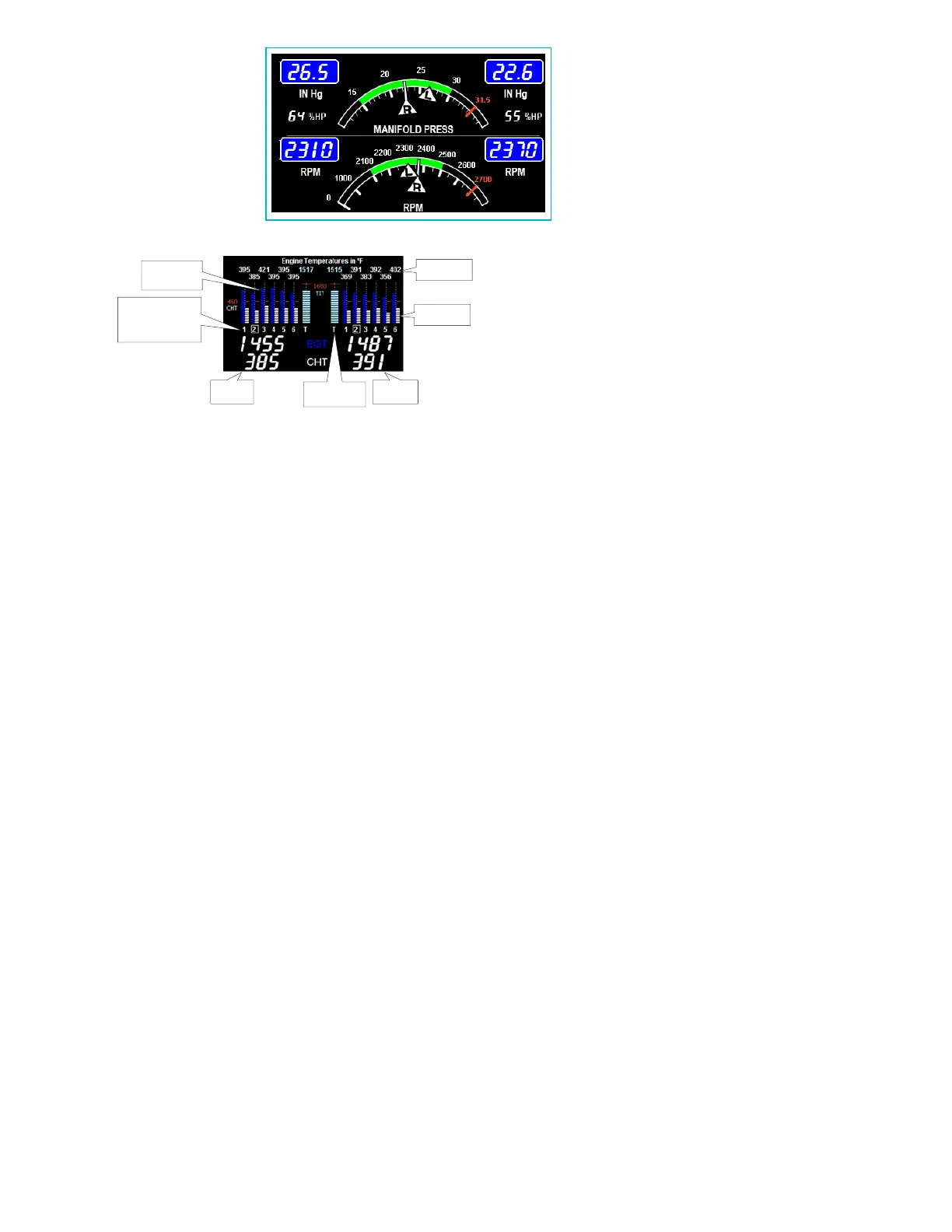

RPM and MAP Displays
The upper left side of the
display shows RPM above
the MAP. The arcs
represent the analog values.
Percent horsepower is
shown below the MAP
readouts.
Scanner Displays
Scanner EGT and CHT Analog Bar Graph
The height of each column represents an EGT or CHT or TIT (if installed)
temperature. The graph resolution depends on the programmed span
between the top and bottom of the range marks. Note: when in certain
modes, such as leaning or normalize, the EGT resolution will temporarily
be finer.
Cylinder Numbers and Index
Just below the bar graph columns are numbers identifying the respective
cylinder. If TIT is installed, it is labeled by the letter T underneath. A
square ‘Cylinder I.D. Index’ surrounding a number indicates what cylinder
is currently selected and relates to the digital display.
