Remote Auxiliary Display
See the important note on page 1 regarding the RAD.
The remote auxiliary display ‘RAD’ provides redundancy and allows
positioning a smaller display directly in
front of the pilot. Upon power up the
RAD displays the EDM’s programmed
configuration (aircraft make and model and primary status). Confirm that
it matches your aircraft configuration before using the instrument. This
auxiliary display will normally show RPM and MAP, but will display a

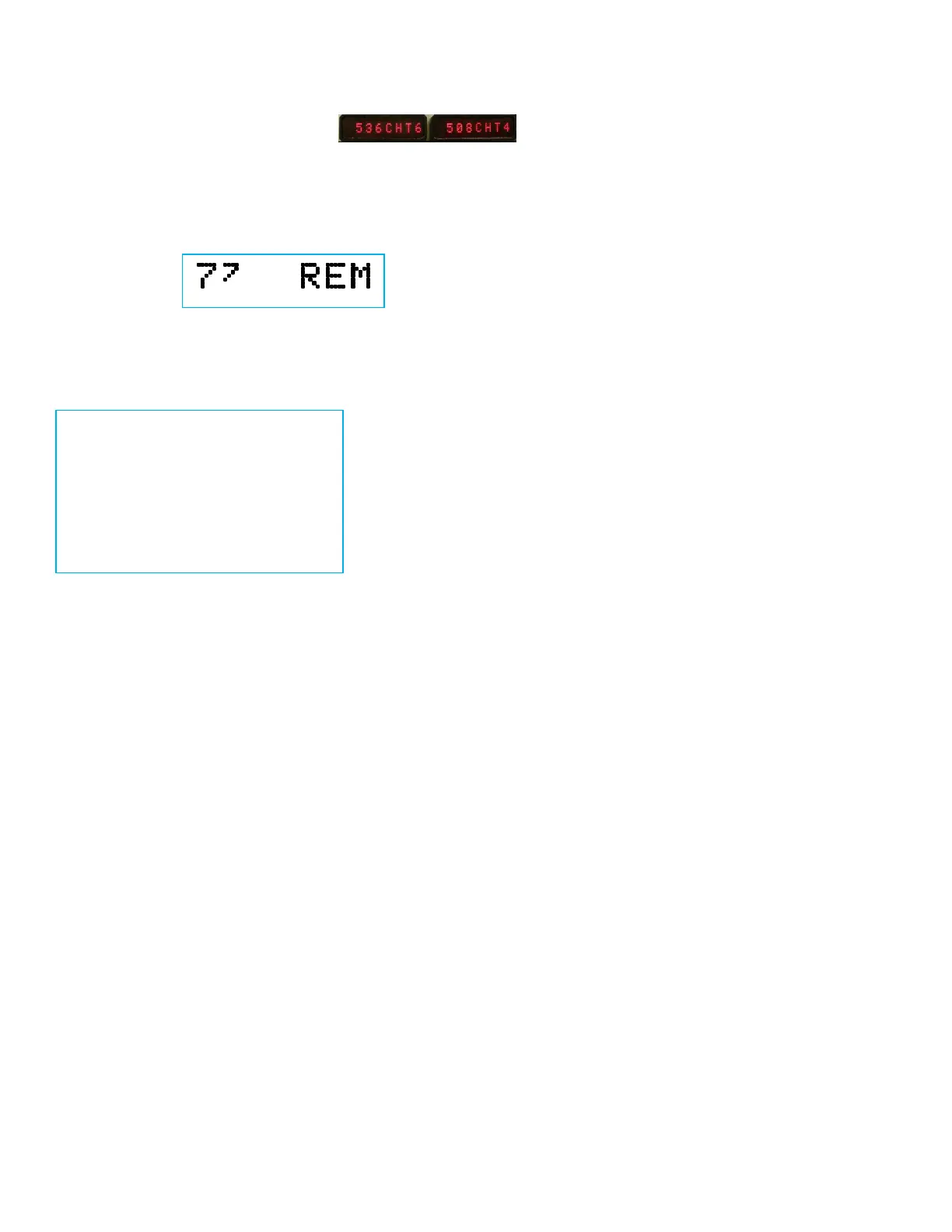

blinking alarm message, duplicating the alarm indication of the EDM. For
example, low calculated fuel remaining of 7.7 gallons would show:
Hobbs Display
Holding both the LF and DIM buttons simultaneously will display the
Hobbs times similar to the example below:
Dimming the Display
Automatic dimming is provided to dim both the panel display and the
remote alarm display. You can manually adjust brightness by tapping
(decrease brightness) or holding (increase brightness) the DIM button.
