For Your Safe Flight Page 74

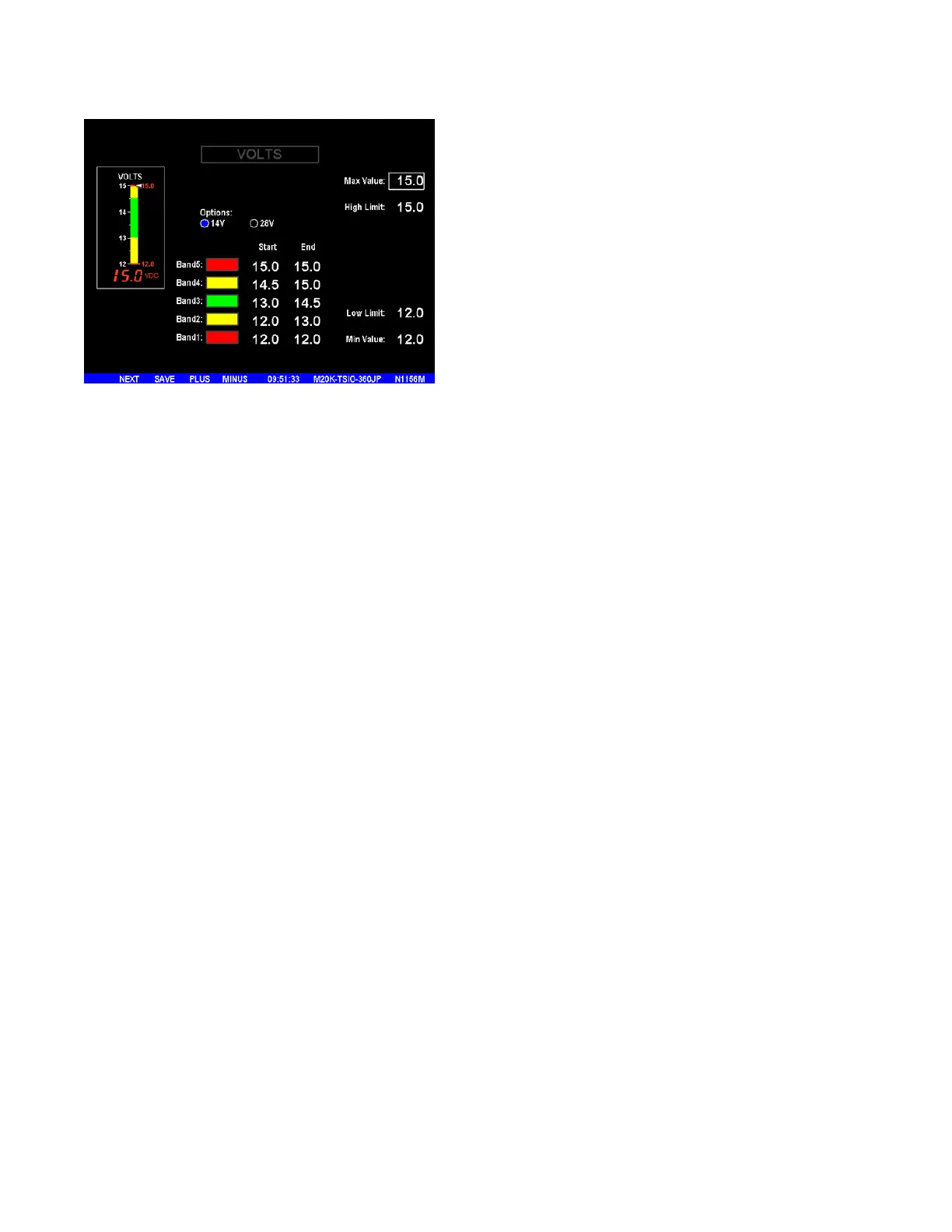

The gauge details screen lets you select the minimum and maximum
scale, the alarm limits, and the color band positions for normal,
warning and alarm ranges. VOLTS will be used as an example how
to configure gauge markings.
9. Gauge Range and Alarm Limits
To change To change the gauge range, use the NEXT key to select
the Max Value or Min Value, and use the PLUS and MINUS keys to
adjust the value.
When a gauge contains a RED band in the Band5 position, a High Limit
is associated with the gauge. When a gauge has a High Limit, the EDM
will display an Alarm message when the gauge value is greater than or
equal to the High Limit value. Changing Band5 color from RED to any
other color disables the High Limit and the EDM’s High Alarm for the
gauge.
When a gauge contains a RED band in the Band1 position, a Low Limit is
associated with the gauge. When a gauge has a Low Limit, the EDM will
display an Alarm message when the gauge value is less than or equal to
the Low Limit value. Changing Band1 color from RED to any other color
disables the Low Limit and the EDM’s Low Alarm for the gauge.
