J.P. Instruments EDM-960

For Your Safe Flight Page | 63
Left RAD
Right RAD
14
1
13
26
JPI checks shock cooling on all cylinders and displays the rate of the
cylinder that is shock cooling the most.

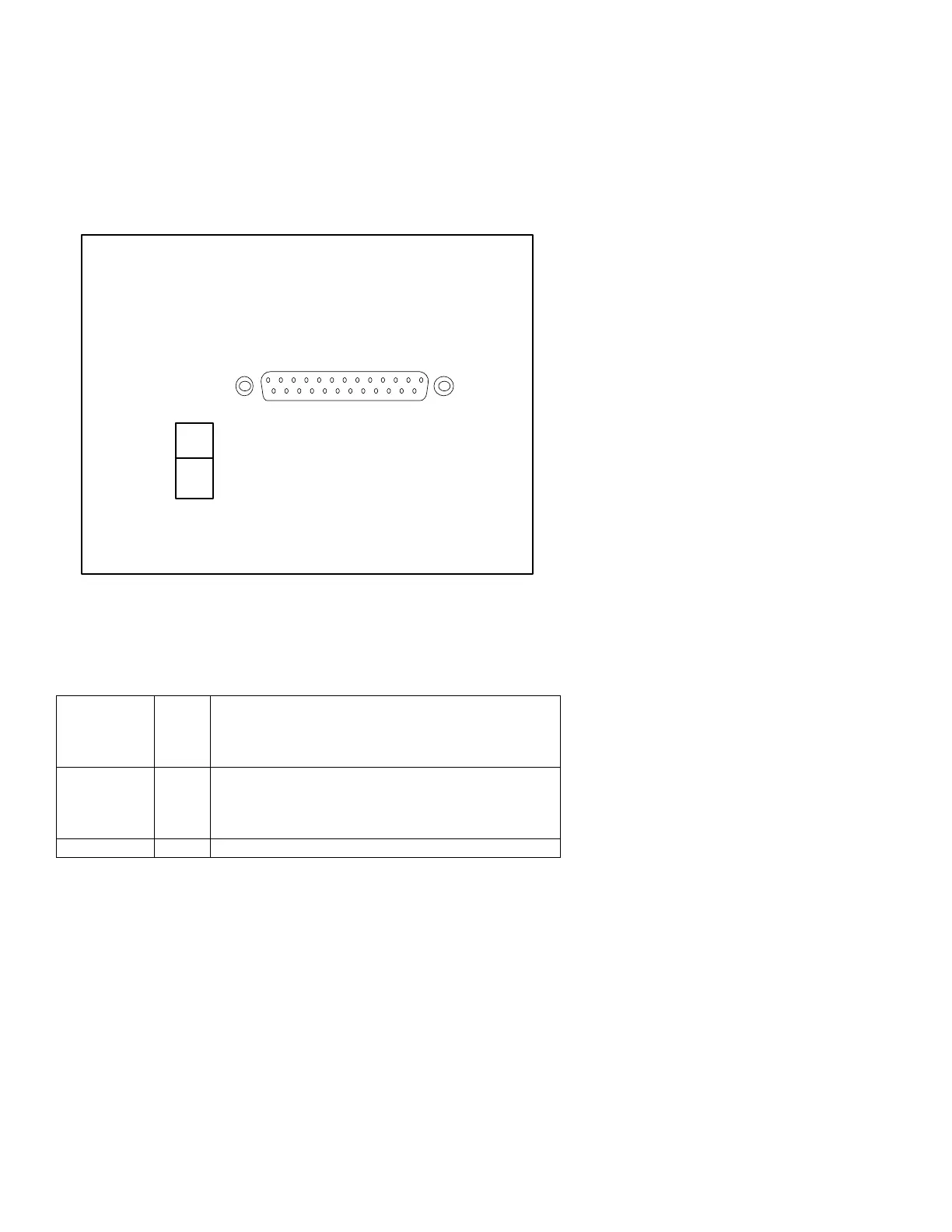

EDM Display Head back connectors
Navigation Data Formats
Output of GPS; input to EDM. The EDM automatically configures
itself for one of three industry standard data formats:
Format
Baud
NMEA-183
(Marine
Nav Data
Format)
4,800
This is the format for most handheld GPS
receivers. Loran must have sentences RMA &
RMB. GPS must have sentences RMB & RMC.
Aviation
Data
Format
9,600
“Output sentence type 1” Required sentences
are: A, B, C, D, E, I and L first character
identifier byte. Sentence terminator may be
either <CR><LF> or <CR> alone.
Northstar
1,200
M1 setup select “NO EXTENDED”, “NAV ONLY”
