J-Tech Digital JTECH-4K88-EX2 - SETUP Mode Interface; RS-232 Baud Rate Setting; DHCP On;Off Setting (Default OFF)

10
Operating Instruction

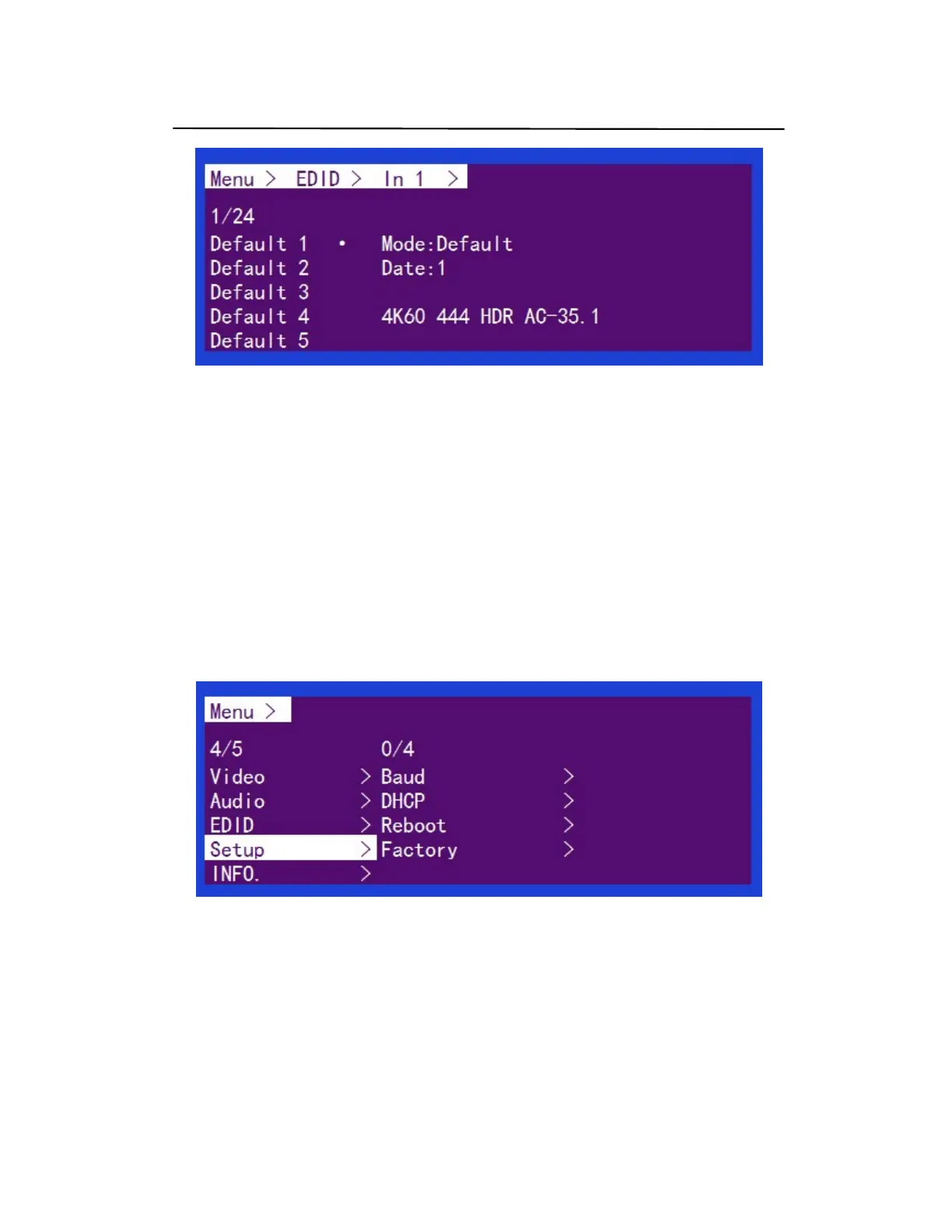

EDID Setting mode (P6)
4.4 SETUP mode Interface
SETUP mode can set the device’s RS-232 baud rate, DHCP, Reboot, Factory Specific
operations are as follows
1. RS-232 Baud Rate setting
It has 7 kinds of baud rates inside the device: 2400; 4800; 9600; 19200; 38400; 57600; 115200
Default Baud Rate is: 115200
ʒ9KRKIZȔ9KZ[VȕOTZNKSKT[GTJVXKYYȔ+4:+8ȕ
ʓ:NKT[YKȔ;6ȕȕ*5=4ȕH[ZZUTZUYKRKIZZNKȔ(';*ȕGTJVXKYYȔ+4:+8ȕ
ʔ6XKYYȔ;6ȕȕ*5=4ȕH[ZZUTZUYKRKIZZNKHG[JXGZKGTJVXKYYȔ+4:+8ȕZUIUTLOXS
BAUD RATE setting (P7)
2. DHCP On/Off setting (Default OFF)
On means Dynamic; Off means Static
ʒ9KRKIZȔ9KZ[VȕOTZNKSKT[GTJVXKYYȔ+4:+8ȕ
ʓ:NKT[YKȔ;6ȕȕ*5=4ȕH[ZZUTZUYKRKIZZNKȔ*.)6ȕGTJVXKYYȔ+4:+8ȕ
ʔ6XKYYȔ;6ȕȕ*5=4ȕH[ZZUTZUYKRKIZȔ5TȕUXȔ5LLȕGTJVXKYYȔ+4:+8ȕZUIUTLOXS


