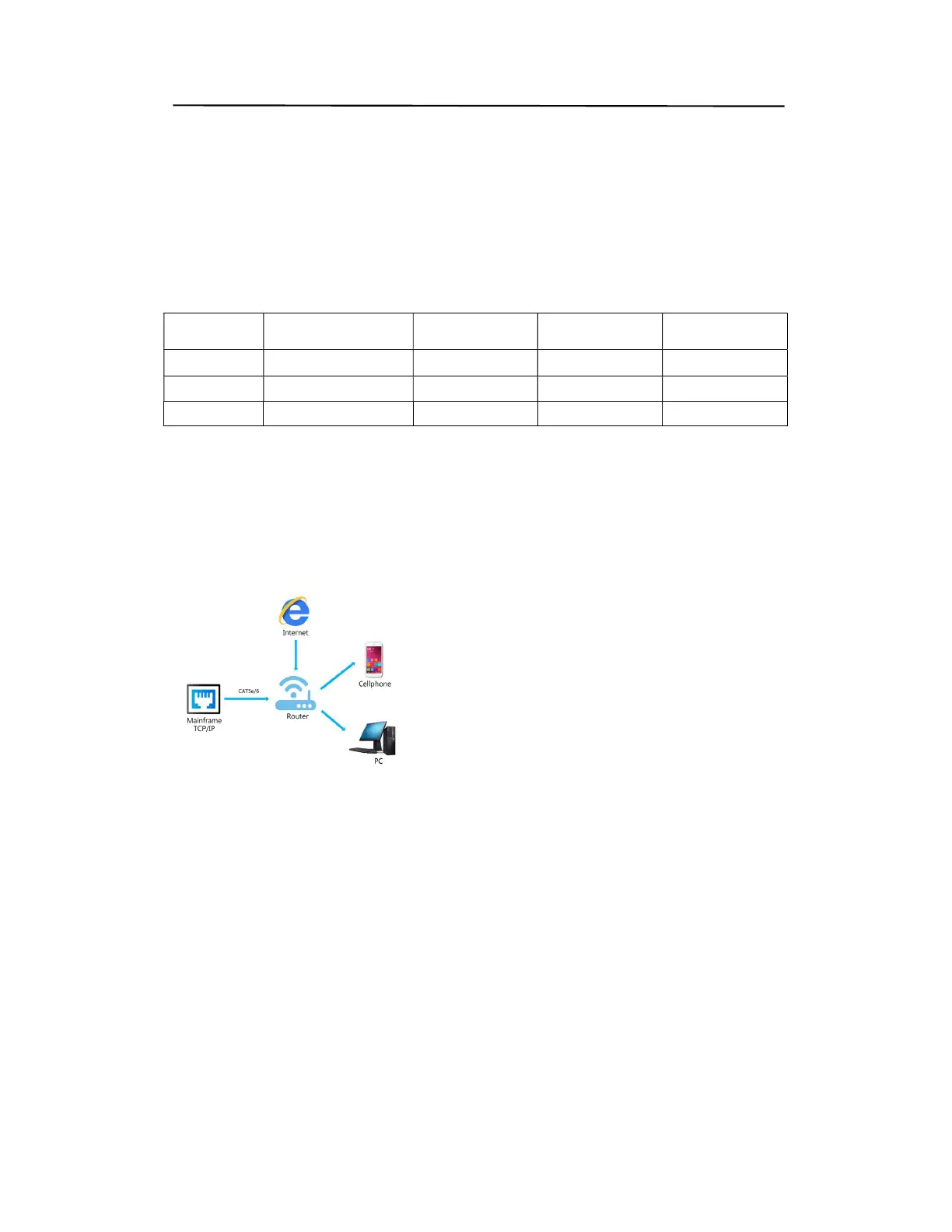

Instructions:
1. All commands start from “#”, command head “%c”: “d” parameters, “l” lock,
“s” save.
2. The “_” in the commands cannot omit. Parameter: %d: 0 means ALL.
3. Command head & Parameter1 & Parameter2... need to add one “SPACE”.
The following table is only an example. Please refer to the list of instructions.
Instruction
description
instruction parameter 1 parameter 2 parameter 3
Video switch #video_%c out%d matrix=%d matrix=%d
Audio Mode #audio_%c in%d enc=%d /
EDID #EDID_%c in%d mode=%d data=%d
Please refer to the " Command list" for details.
Example: Output5 switch to input 6 channel off:
Operation format: #video_d out5 matrix=6 onoff=0
9. Web Control
9.1. Change the IP address of your PC.
1). Connect the Ethernet port of matrix to the Ethernet port on PC by a crossover cable with RJ45
connectors.
2). Configure your PC as follows:
① Click Start > Control Panel > Network and Sharing Center.
② Click Change Adapter Settings.
③ Highlight the network adapter you want to use to connect to the device and click
Change settings of this connection.
3). The local Area commotion properties window for Network selection appears as below:
4). Click the Highlight Internet Protocol Version 4 (TCP/IPv4).
5). Click Properties.
Operating Instruction
