J2 240 - Customer Display Installation

13

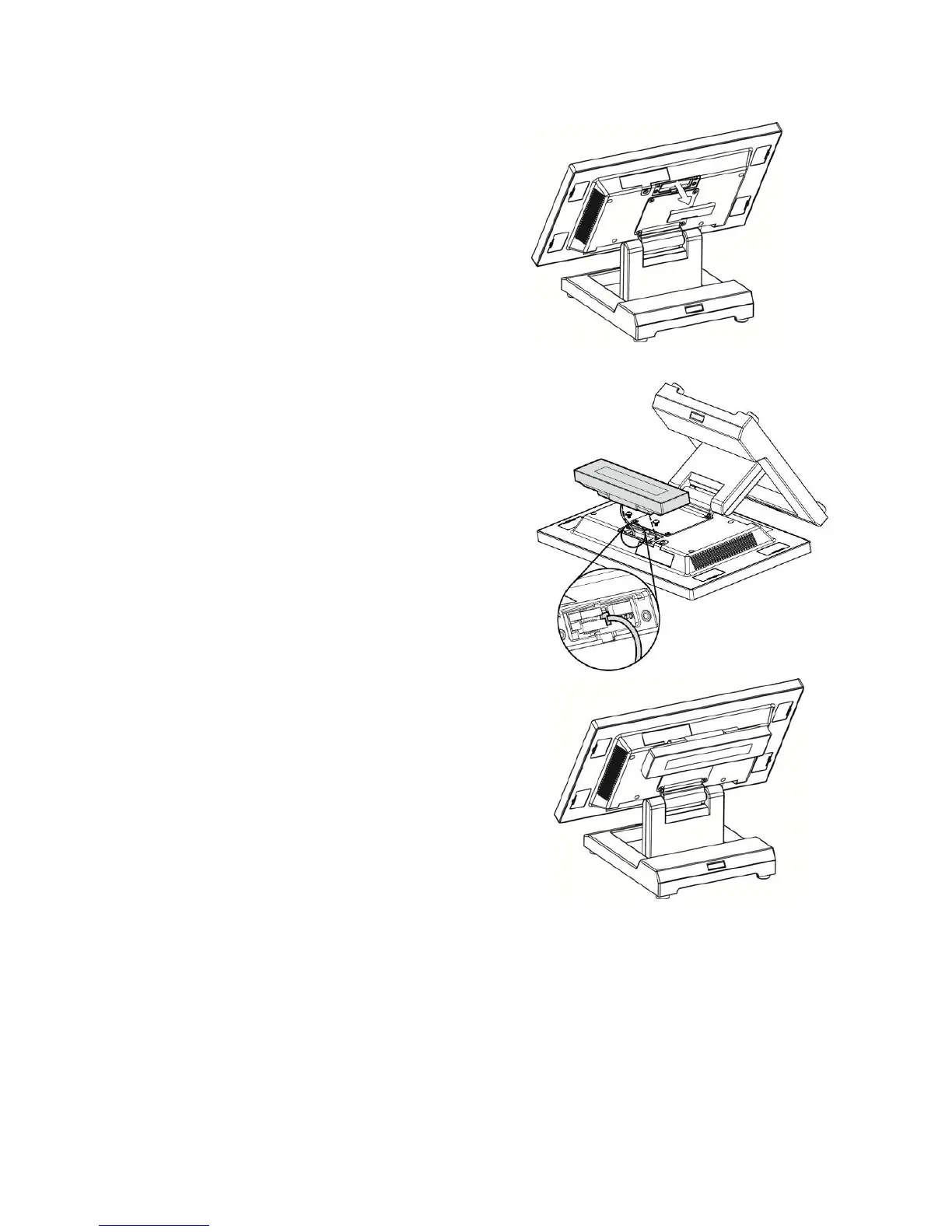

4-4 Install the Customer Display (Graphic LCM)
1. Remove the dummy cover first.
2. After the dummy cover is removed,
plug the 8-pin LCM cable into the
CN8 / LCM connector on the system
board.
3. Fasten the screws (x2) to secure the
LCM display to the system.
The Customer Display is directly connected to COM6 and uses the following
communication parameters: 9600, N, 8, 1.
