J2 240 - Second Display Installation

14
4-5 Install the 2
nd
Display

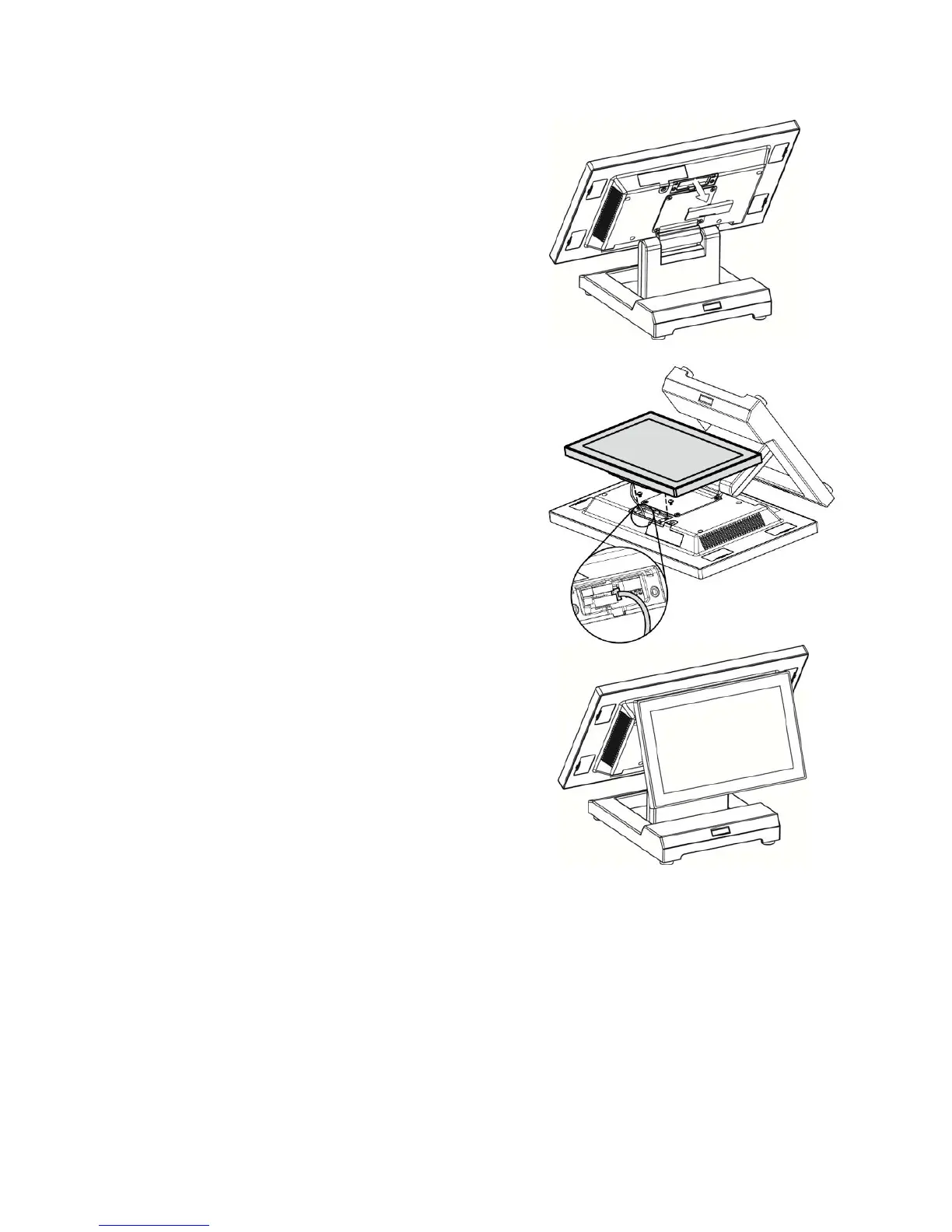

1. Remove the dummy cover first.
2. After the dummy cover is removed,
plug the 20-pin 2
nd
display cable into
the CN6 connector on the system
board.
3. Fasten the screws (x2) to secure the
2
nd
display to the system.
