Jackle 150 - Picture 13.3 Airunit

Plasma CUTTER 150
Operating Manual Page 18
Pos. Description Stocknumber
30 High frequency blocking choke HFT 20 S 706.017.030
31 Fan 350 mm, 230 V 450.350.005
32 Cutting transformer Cutter 150 706.017.050
Thermo switch 170°C (break) for cutting transformer 445.170.002
33 Mains cable. 4 x 6 qmm, 5m , plug 63A 704.060.004
34 Capacitor 1 µF / 400V for fan 453.450.002
35 Fixed roll diam. 140 mm 301.140.004
36 Pilot arc resistor 5,4 Ohm 452.054.007
37 Guide roll diam. 140 mm 301.140.003

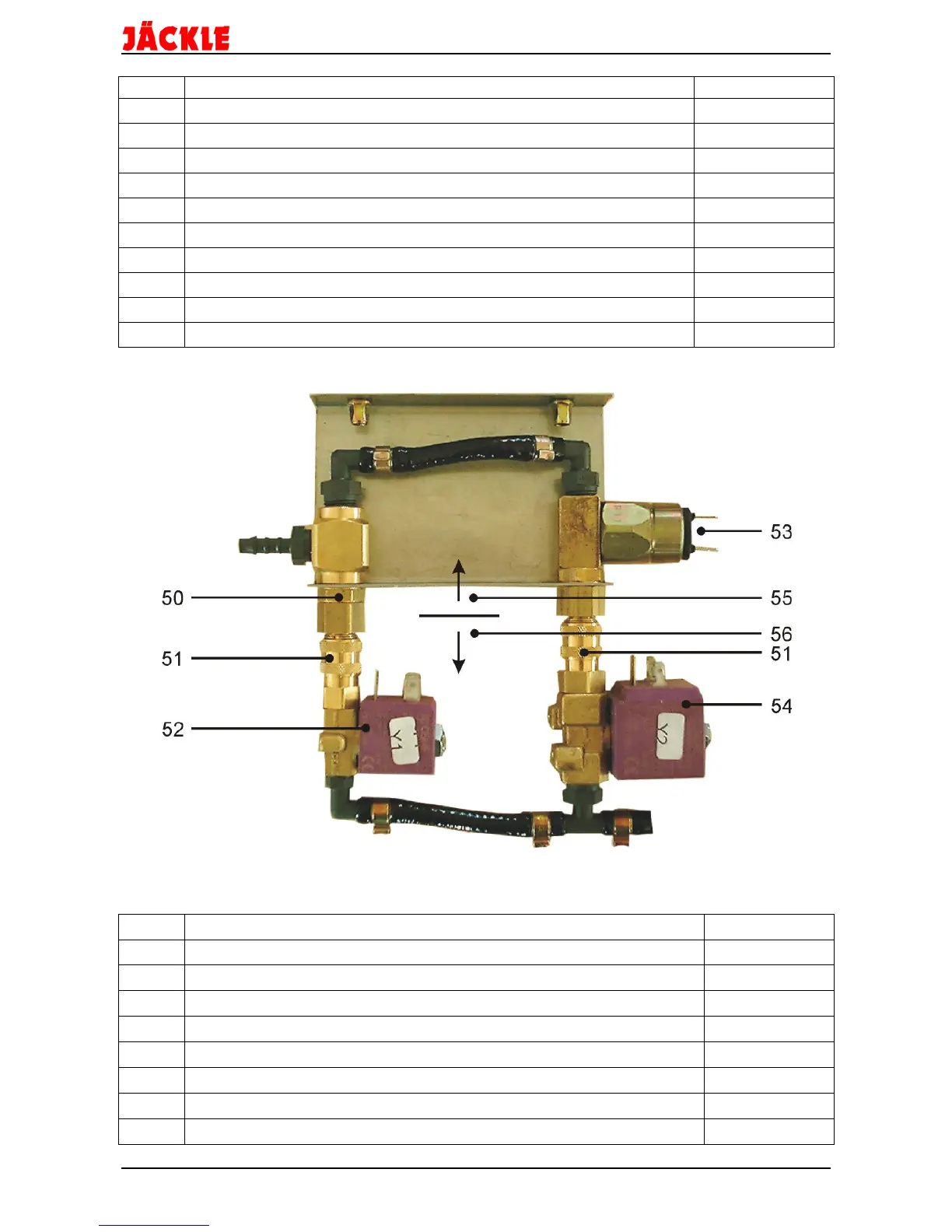

Picture 13.3 Airunit
Pos. Description
Stocknumber
50 Pressure reducing nozzle D1,3 M8Ax10 MS (Inside!) - air-cooling
357.810.012
51 Rapid action coupling DN5-1/8A MS 355.180.016
52 Solenoid valve NW 2,5 / 24 V G 1/8 465.018.006
53 Manometric switch 1 - 10 bar, M 10x1 444.001.001
54 Solenoid valve NW 2,5 / 24 V G 1/8 465.018.006
55 Manometric switch unit (complete) 703.022.008
56 Solenoid valve unit (complete) 703.022.014
