© 2017 Jackson Labs Technologies, Inc. 47
Mini-JLT GNSS™ User Manual
5.3.1.3 Traces Parameters
After pressing the wrench icon, you can select the “Traces” tab and configure the trace labels
and vertical plot ranges. See Figure 5.4 for an example of an auxiliary measurement. The labels and
parameters are completed by default for traces 1 thorugh 5. The auxiliary trace defined on the
auxiliary tab for trace 6 has the label “Temp” to indicate that the OCXO current from the
meas:current? query is a measure of temperature. Any of the eight traces can be replaced by auxiliary
traces as described in Section 5.3.1.2 . Press the “Help” button for a full description of each option in
the Traces tab.

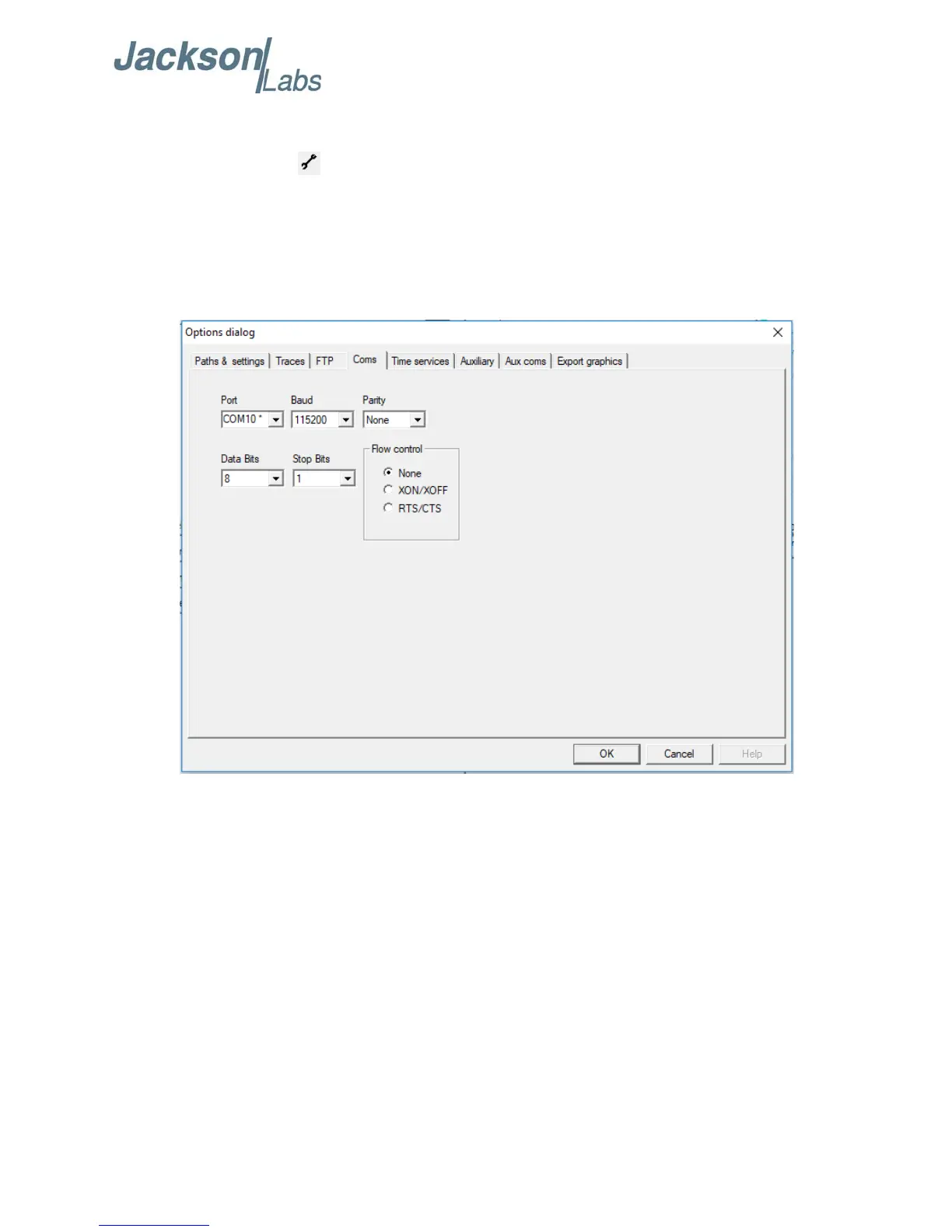

Figure 5.2 Setting the communications parameters
