Jackson 10 Series User Manual

07610-002-41-09-F

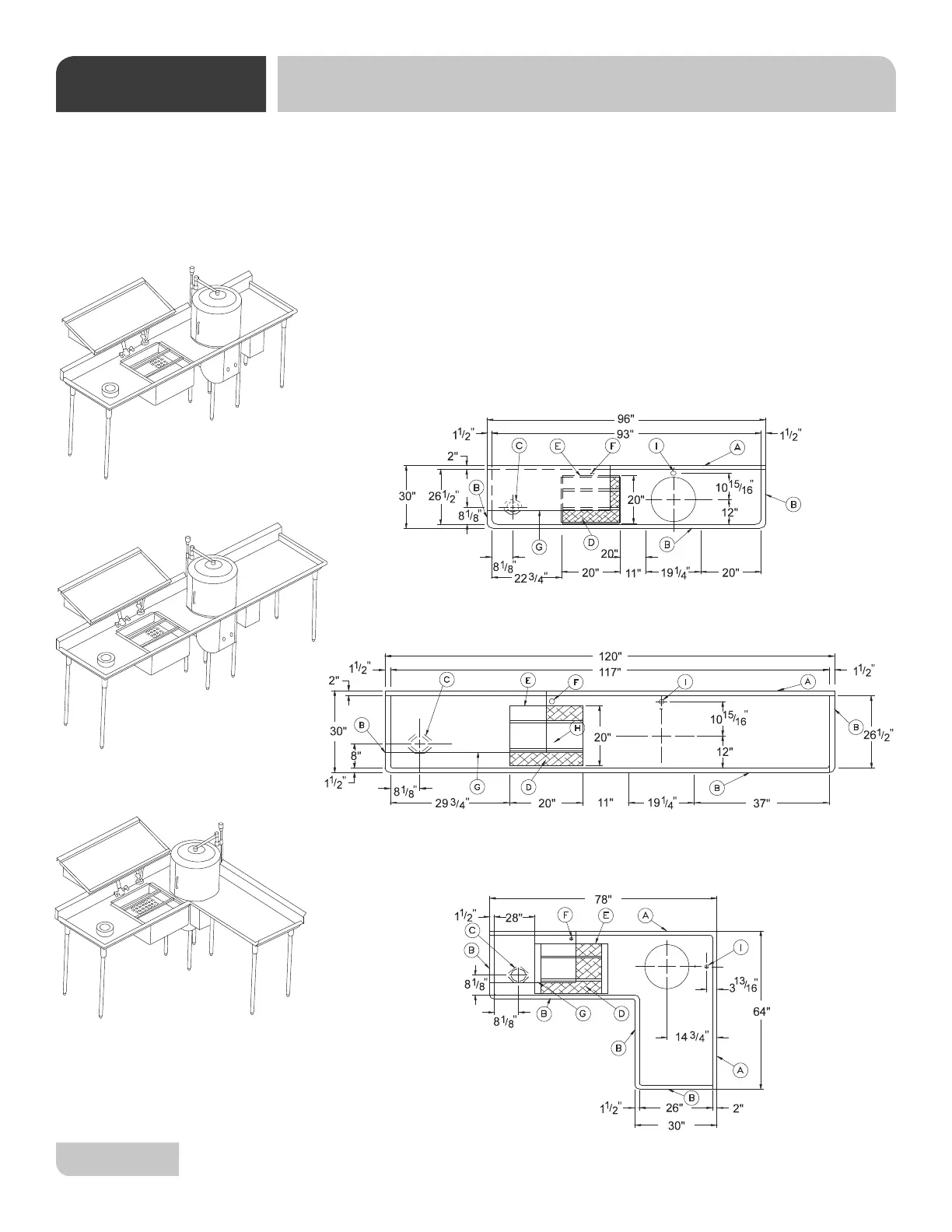

3
10 1X PACKAGE
10 2X PACKAGE
10 3X PACKAGE
LEGEND
A - 10” High backsplash, 2” turnback at 45B
B - 3” High, 1 1/2” diameter rolled edge
C - Scrap block
D - Scrap basket with slide bars
E - 20” x 20” x 5” deep pre-rinse sink
F - Heavy duty pre-rinse
G - 20” Slanted wall mounted overshelf 42” long
H - 3 1/2” hole for sink drain with basket drain
I - 1 7/8” hole for hood support piping
SPECIFICATIONS
10 SERIES TABLE DIMENSIONS
