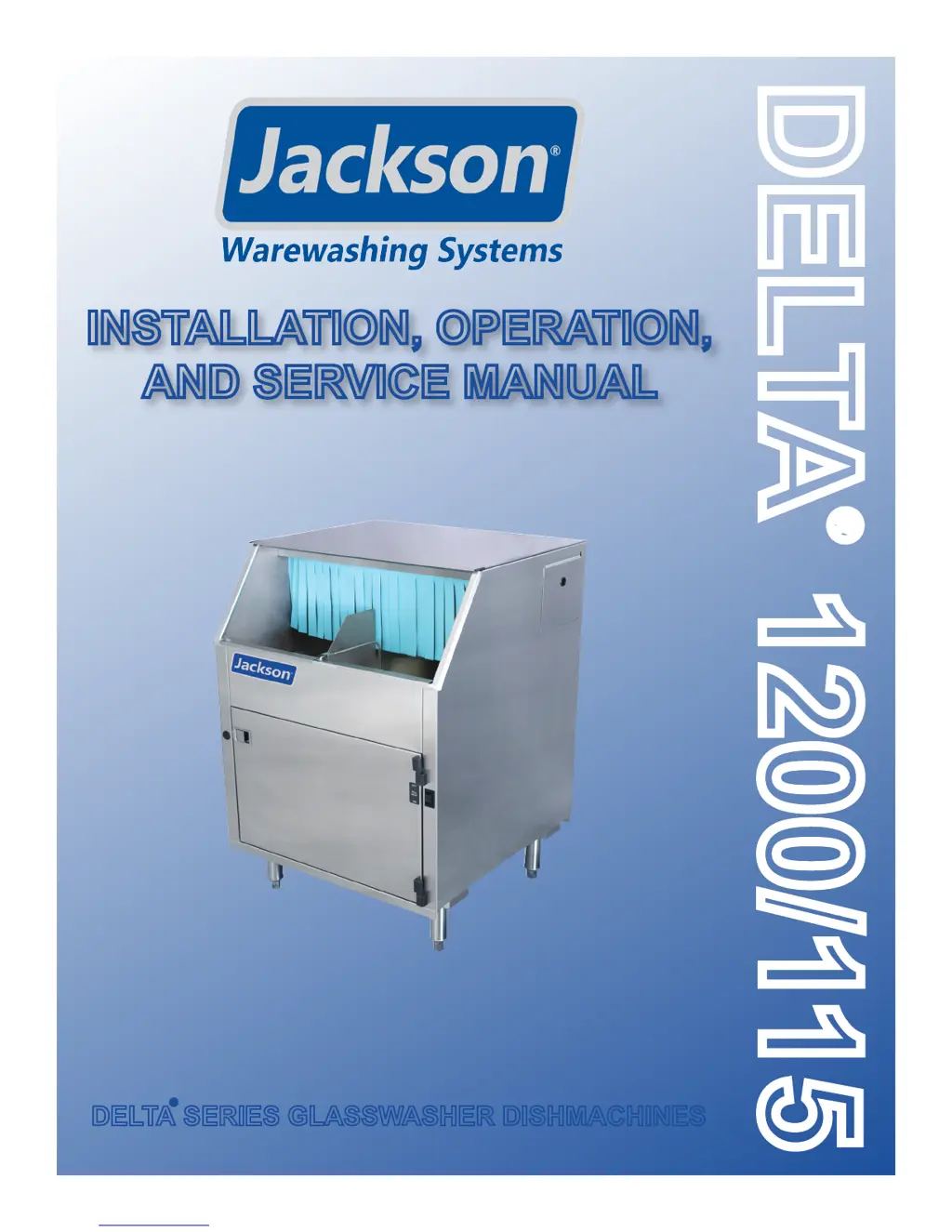

Jackson DELTA 115 User Manual (English)

Other manuals for Jackson DELTA 115

Questions and Answers:

L
louissmithAug 21, 2025
How to troubleshoot a Jackson DELTA 115 that won't run with no voltage at wash relay?
- T
  Thomas YoderAug 21, 2025
  If your Jackson Dishwasher is not running, and there's no voltage at the wash relay terminals L1 and T1, there are several potential causes: * First, ensure that the electrical wiring is correctly connected to the machine and that the main disconnect is turned on. * Second, check the branch circuit breaker. If it has tripped or a fuse is blown, reset or replace it. If this issue persists, have an electrician check the machine's amp draw. * Third, inspect for any loose or broken connections to the dishwasher and tighten, repair, or replace them as necessary.
D
Donna RussoAug 22, 2025
Why does my Jackson DELTA 115 Dishwasher keep tripping the service breaker?
- D
  David SmithAug 22, 2025
  If your Jackson Dishwasher keeps tripping the service breaker, it could be due to several reasons: 1. A power supply shorted to ground. Check for loose wires or burned connections and repair or replace them as needed. 2. A jammed pump impeller. Disassemble the pump and remove any obstructions. 3. A faulty wash pump motor. Check the motor voltage and amp draw. 4. A service breaker that is too small. Replace it with a correctly sized breaker.
M
Matthew JacksonAug 25, 2025
What to do if the wash motor doesn't run on my Jackson DELTA 115 Dishwasher?
- S
  sarah17Aug 25, 2025
  If the wash motor in your Jackson Dishwasher does not run, but other functions are working, consider the following: * Check for loose wire connections to the limit switch or relay and tighten them. * The pump motor may be faulty and need replacement. * There could be mechanical binding in the pump. If the motor has the correct incoming voltage and the overload is tripping, repair or replace the pump. * A high or low voltage problem can also cause this. Check the voltage at the motor and the power terminal block to ensure it meets the dishwasher's electrical specifications. * A faulty limit switch may also be the cause and should be replaced.
A
Angela MatthewsAug 27, 2025
Why does my Jackson Dishwasher fill continuously even with no power?
- P
  Penny PerezAug 27, 2025
  If your Jackson Dishwasher fills continuously, even when there is no power to the machine, it could be due to: * A solenoid valve jammed or stuck in the open position. Check the diaphragm and coil, and replace as required. * A faulty float switch. Test the switch to ensure that the upper and lower floats are working. If not, check the float wiring and replace the float switch if necessary.
T
travis39Aug 28, 2025
What to do if my Jackson Dishwasher will not fill but other functions work?
- D
  Dustin GardnerAug 28, 2025
  If your Jackson Dishwasher will not fill, but other functions are working, it could be due to the following reasons: 1. No water supply to the machine. Ensure that the water is properly connected and turned on. 2. A faulty hot water solenoid valve diaphragm or coil. Replace the diaphragm and clean out the valve. Measure the continuity on the coil; if there is none, replace the coil. 3. A faulty float switch. Test the switch to ensure that the upper and lower floats are working. If not, check the float wiring; if it is correct, replace the float.
M
Mrs. Emily FrazierAug 29, 2025
Why does my Jackson Dishwasher cycle continuously?
- T
  Tiffany AcostaAug 30, 2025
  If your Jackson Dishwasher cycles continuously, it could be due to: * A limit switch actuator that is loose or has fallen off. Reassemble or bend the metal lever if necessary. * A faulty limit switch. Replace the switch.
S
Stephanie GeorgeAug 31, 2025
Why does the wash motor run continuously on my Jackson DELTA 115?
- J
  james56Aug 31, 2025
  If the wash motor in your Jackson Dishwasher runs continuously, it is likely due to the wash relay being welded closed. Turn the machine off immediately, and if the wash relay does not release, replace it.
T
Tricia RitterSep 2, 2025
How to fix low wash water pressure at spray nozzles in Jackson DELTA 115?
- K
  Kimberly JohnsonSep 2, 2025
  If you're experiencing low wash water pressure at the wash arm spray nozzles in your Jackson Dishwasher, consider the following: * The pump impeller might be worn or broken, requiring replacement. * The jets in the wash arms could be clogged; clean them out. * The float might be stuck on the float switch; remove, clean, and reinstall the float switch. * The water level in the wash tank might be too low; ensure that the incoming water line flow pressure meets the requirements on the dishmachine data plate.
N
Natalie BarrSep 3, 2025
Why won't my Jackson DELTA 115 Dishwasher hold water?
- R
  Ryan WellsSep 4, 2025
  If your Jackson Dishwasher is not holding water, it could be due to: * The drain stopper not being in place. Ensure it is correctly set in the drain. * The drain fitting O-ring being cut or missing. Replace the O-ring. * The drain stopper being bent or deformed. Replace it.
J
Jacqueline AndrewsSep 6, 2025
What causes no pressure indication in my Jackson DELTA 115 Dishwasher?
- N
  Nancy KirbySep 6, 2025
  If you observe no indication of pressure in your Jackson Dishwasher, the following could be the cause: * The water level is too low. Ensure that the incoming water line pressure meets the requirements on the dishmachine data plate. * The wash arms are clogged. Remove the wash arms and clean them. * There is an obstruction in the pump housing. Disassemble the pump and clear any obstructions. * The O-ring at the wash tank drain is cut or missing. Replace it.

Jackson DELTA 115 Specifications

General

Brand	Jackson
Model	DELTA 115
Category	Dishwasher
Language	English

Summary

Manufacturer's Warranty

One Year Limited Parts and Labor Warranty

Details the warranty coverage for parts and labor for one year from purchase.

Travel Limitations

Specifies the limits on travel time and mileage covered by the warranty service.

Warranty Registration

Instructs users on how to register their product to ensure warranty validity.

Replacement Parts Warranty

Outlines the warranty period for replacement parts installed on the machine.

Product Changes and Updates

States the manufacturer's right to make changes to equipment design or specifications.

Items Not Covered

Lists specific components and conditions that are excluded from warranty coverage.

Revision History

Nomenclature

Guides

Symbols

Explains warning, caution, and information symbols used in the manual.

Abbreviations & Acronyms

Lists common abbreviations and acronyms used in the manual.

Specifications

Machine Dimensions

Provides detailed measurements and diagrams of the dishmachine.

Operating Parameters

Details capacity, cycle time, water temps, and other operational specs.

Electrical Requirements

Outlines voltage, phase, frequency, and electrical load characteristics.

Instructions

Installation Instructions

Guides users through the setup process, including inspection, unpacking, and plumbing.

Operating Instructions

Explains how to prepare, operate, and shut down the dishmachine.

Detergent Control

Discusses detergent usage, water hardness, and temperature for efficient operation.

Maintenance

Preventative Maintenance

Recommends qualified personnel for maintenance and lists steps for optimal machine use.

Trouble Shooting

Common Problems

Lists common issues, their possible causes, and remedies for the dishmachine.

Service Procedures

Chemical Feeder Pump Motor Replacement

Provides step-by-step instructions for replacing the chemical feeder pump motor.

Wash Tank Heater Replacement

Details the process for replacing the dishmachine's wash tank heater.

Thermostat Replacement

Guides users through the steps to replace the thermostat on the dishmachine.

Wash Motor Replacement

Provides instructions for replacing the wash motor assembly.

Parts

Control Box Assembly - Delta 115

Lists parts and their numbers for the Delta 115 control box assembly.

Control Box Assembly - Delta 1200

Lists parts and their numbers for the Delta 1200 control box assembly.

Outer Shell Assembly

Details components of the dishmachine's outer shell and their part numbers.

Chemical Feeder Pump Assembly

Identifies parts for the chemical feeder pump assembly.

Rinse Assembly

Lists components of the rinse assembly and their corresponding part numbers.

Wash System

Provides a parts list for the wash system components.

Conveyor & Drive System

Details the parts included in the conveyor and drive system.

Door Assembly

Lists the parts that make up the dishmachine door assembly.

Schematics

Delta 115 Schematics

Provides the electrical schematic diagram for the Delta 115 model.

Delta 1200 Schematics

Provides the electrical schematic diagram for the Delta 1200 model.
