Jackson DELTA 115 - Control Box Assembly - Delta 1200

36
07610-003-62-15-Q

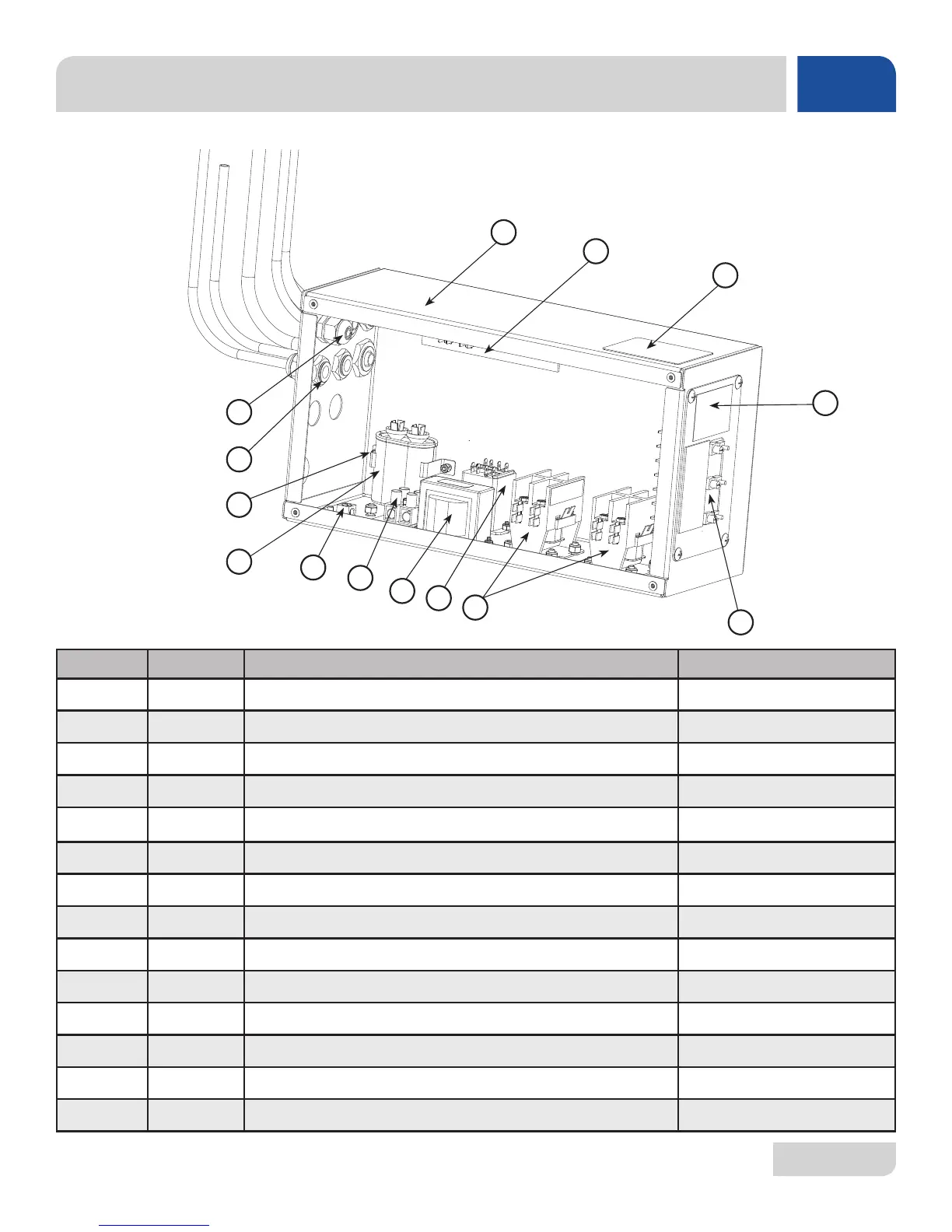

CONTROL BOX ASSEMBLY - DELTA 1200
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 2 Fitting 05975-011-49-03
2 3 Fitting 05975-011-65-51
3 1 Bracket 05700-003-56-00
4 1 Capacitor 05910-003-43-01
5 1 Ground Lug 05940-200-76-00
6 1 Separator 05700-011-40-05
7 1 Transformer 05950-011-61-67
8 1 Relay 05945-111-47-51
9 2 Contactor 05945-002-74-20
10 1 Access Panel 05700-003-55-38
11 1 Decal, Warning, Disconnect Power 09905-004-08-16
12 1 Decal, Caution 09905-011-68-99
13 1 Terminal Board 05940-002-78-97
14 1 Complete Assembly 05700-003-55-37
