Jackson 10 Series - Pump and Motor Assembly

07610-002-41-09-F
52

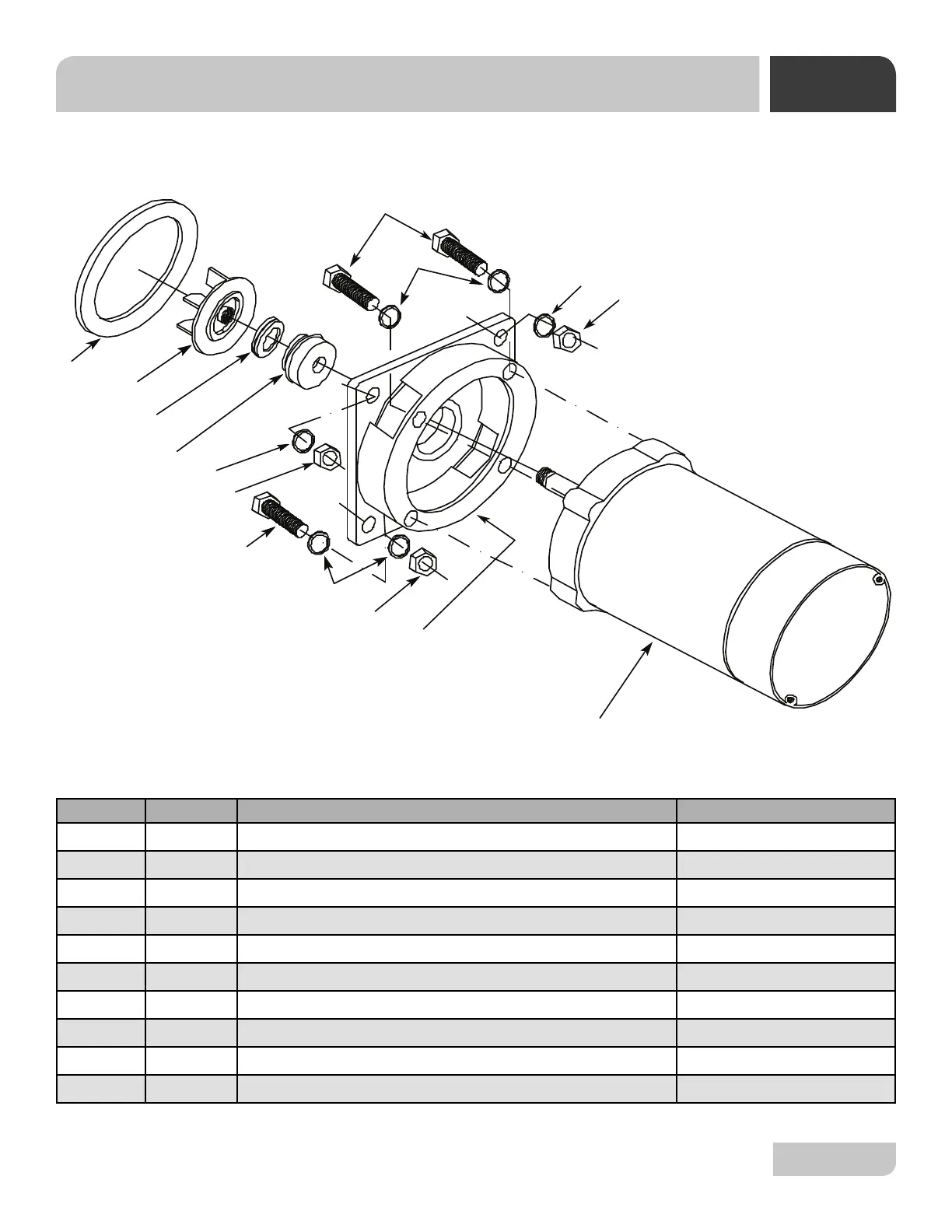

PUMP AND MOTOR ASSEMBLY
PARTS
9
8
1
2
3
5
6
4
9
8
8
9
7
7
8
ITEM QTY DESCRIPTION PART NUMBER
1 Complete Motor and Pump Assembly (2 for APRB units) 05700-002-60-91
1 1 Motor, 115/230 Volt, 1/2 HP, 1 PH, 60 HZ 06105-101-65-00
2 1 Flange, Motor Mounting, Epoxied and Painted 05700-002-60-97
3 1 Seal, Crane 05330-300-09-27
4 1 Seal, Ceramic 05330-300-02-27
5 1 Impeller 05700-000-19-11
6 1 Gasket, Pump 05330-200-34-00
7 4 Screw, 3/8"-16 x 1" Socket Head Cap 05305-356-04-00
8 8 Lockwasher, 3/8" S/S Split 05311-276-01-00
9 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
