Jackson 10 Series - Page 27

07610-002-41-09-F
20
SERVICE
PROCEDURES
TIMER FOR 10 SERIES DISHMACHINES
SERVICE
INSTRUCTIONS
(CONTINUED)
...operations or performs a specifi c part of the cycle continuously, but works well on
manual. Remember, the timer motor is controlled by the start switch and the hold
microswitch; check this complete circuit before changing the motor. NOTE: It may be
necessary to remove complete timer to replace motor; if so, follow steps 1 and 2 for
removing the microswitches.

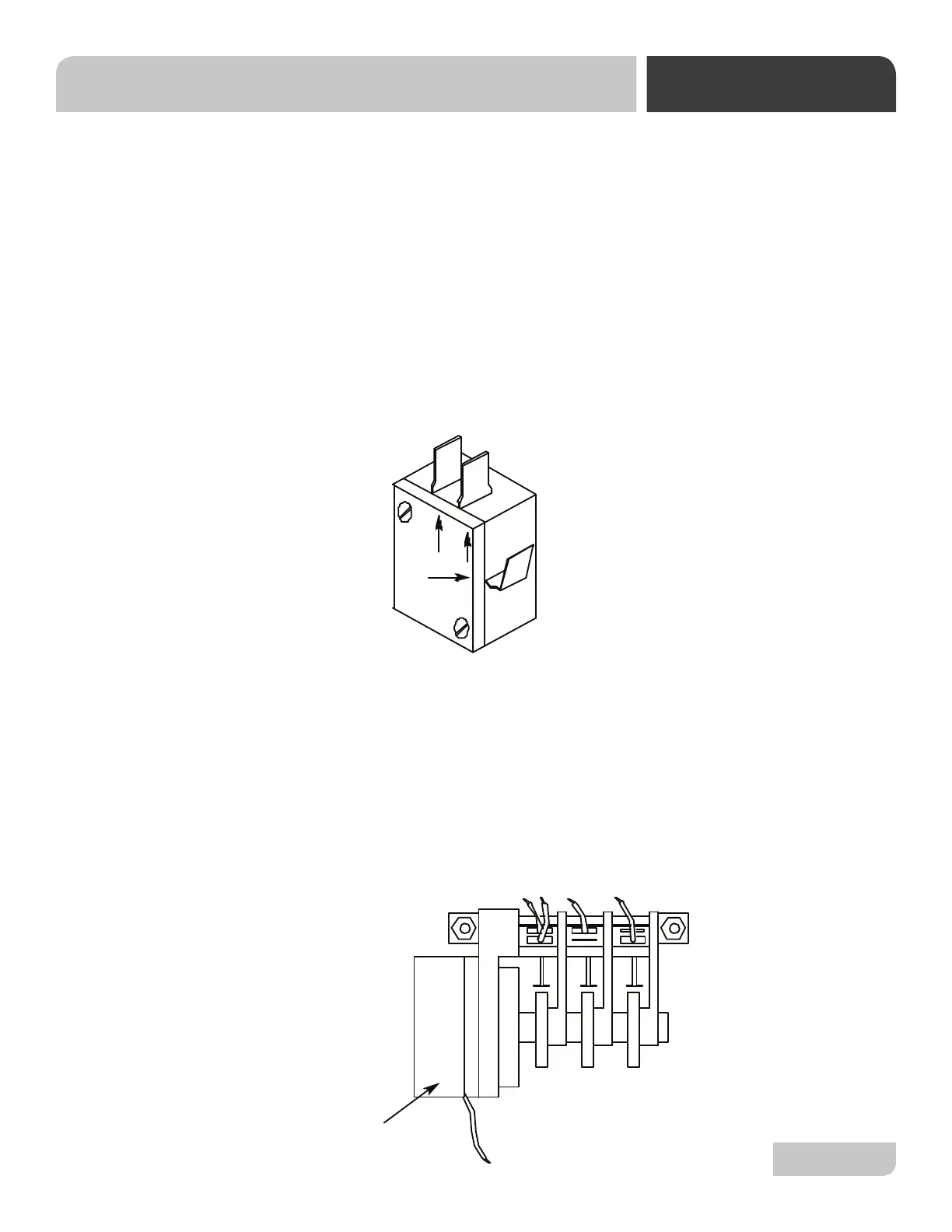

To replace the motor:
1. Remove motor leads from connection points.
2. Remove the two screws which hold the motor.
3. Replace with the new motor.
4. Re-connect motor leads to proper points.
A. To upper-right terminal start switch
B. To lower-right terminal start switch
C. To right-central terminal manual wash switch
D. To upper terminal of rinse switch
E. To #5 terminal
F. Shorting bar or jumpers connected to all three
timer switches on this terminal
Timer Switch
Mfg. No.: 5945-306-02-00
COM
NC
NO
A
B C
F (on rear)
E
Timer, 220V
5945-303-19-00
D
Timer Motor, 220V
5945-306-06-00
