07610-002-41-09-F
27

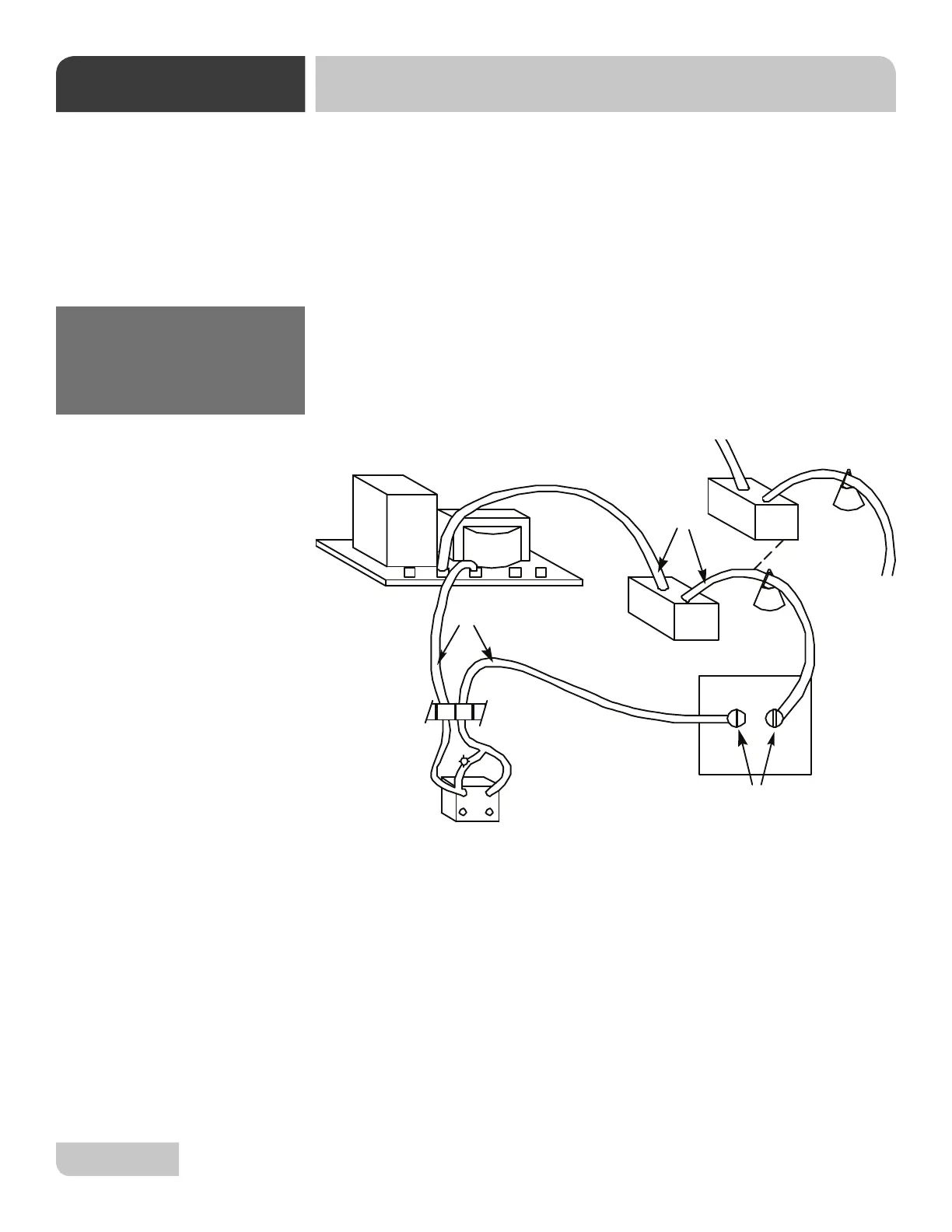

Clamp probe on a single wire between the thermostat and wash heater element. The
element should draw 3 amps. If it does not and everything above checked out okay,
replace the element. This wash element is used to maintain wash water temperature so
temperature rise will be extremely slow; do not depend on this indication.
A. Heater switch
B. Thermostat
C. Heater Relay
D. Rinse Tank Heaters
E. Amprobe Test Position
X. Terminal board (9 terminals)
WASH TANK
HEATER SYSTEM
(CONTINUED)
SERVICE
PROCEDURES
WASH TANK HEATER SYSTEM
NOTE: A check with an
amp probe (position E), if
available, would be helpful
at this point.
To Next Page
