GENSET AND BATTERY PACK
4271491-Second Edition 3-25
3

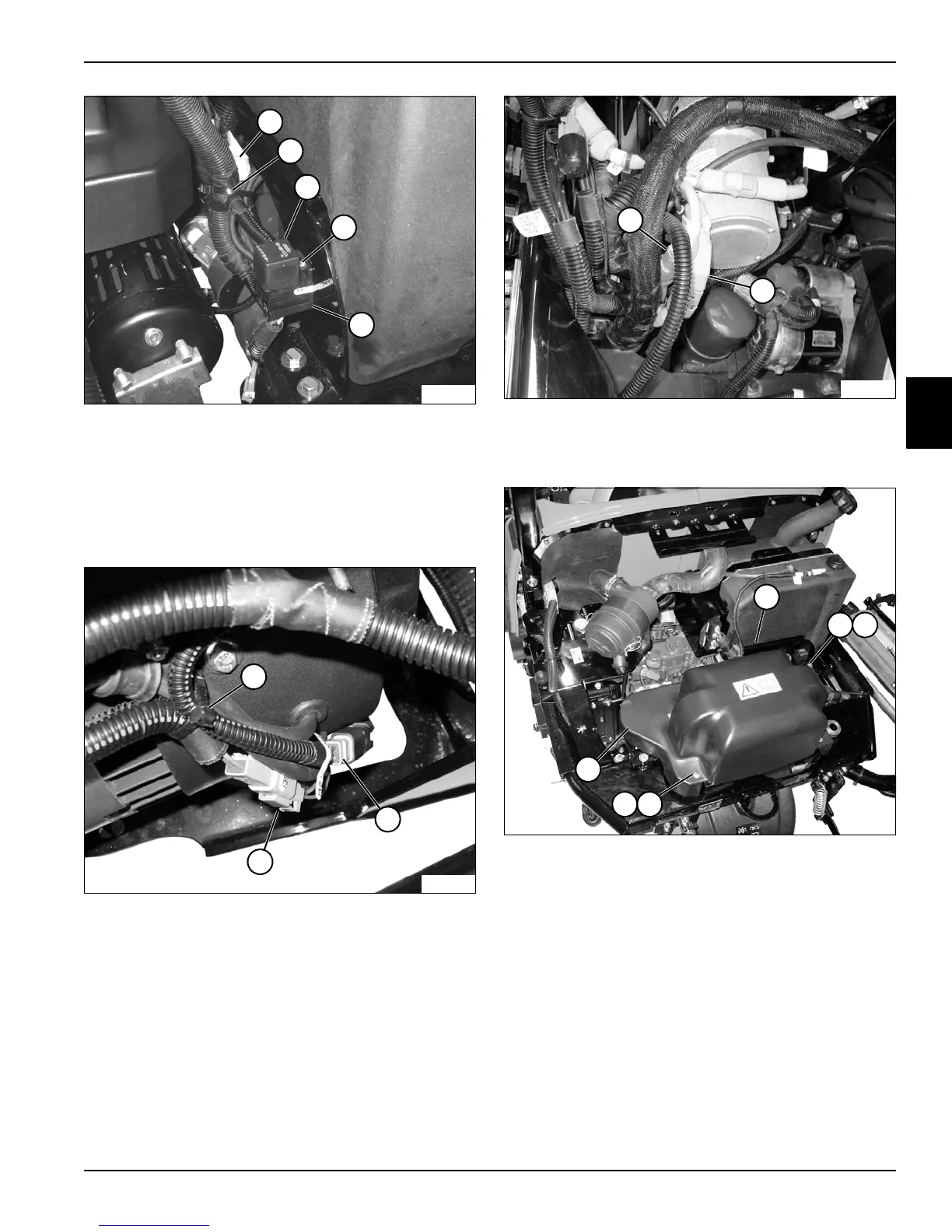

Figure 3-36
13. Tag and disconnect rectifier connector (11).
14. Cut cable tie (12).
15. Remove fan relay (13).
16. Remove screw (14) and fan relay base (15).
17. Remove GCU. (See “GCU” on page 4-155.)
Figure 3-37
18. Tag and disconnect genset connector (18) and
genset fan connector (17).
19.Cut cable tie (16).
20. Move the wiring harness away from the genset.
Figure 3-38
21. Tag and disconnect engine harness-to-main harness
connectors (19 and 20).
Figure 3-39
22. Turn the fuel outlet hose shutoff valve clockwise until
valve bottoms lightly. Valve is located on the bottom
of the fuel tank.
23. Remove fuel tank. (See “Fuel Tank (Diesel Models)”
on page 3-20.)
24. Remove fuel filter. (See “Fuel Filter (Diesel Models)”
on page 3-22.)
25. Remove four screws (22) and nuts (23), and remove
fuel tank bracket (21).
26. Remove four screws (24) and flat washers (25), and
remove rear controller cover (26).
27. Remove muffler and exhaust assembly. (See “Muffler
(Diesel Models)” on page 3-15.)
To Next Page
