3-26 4271491-Second Edition
GENSET AND BATTERY PACK
3

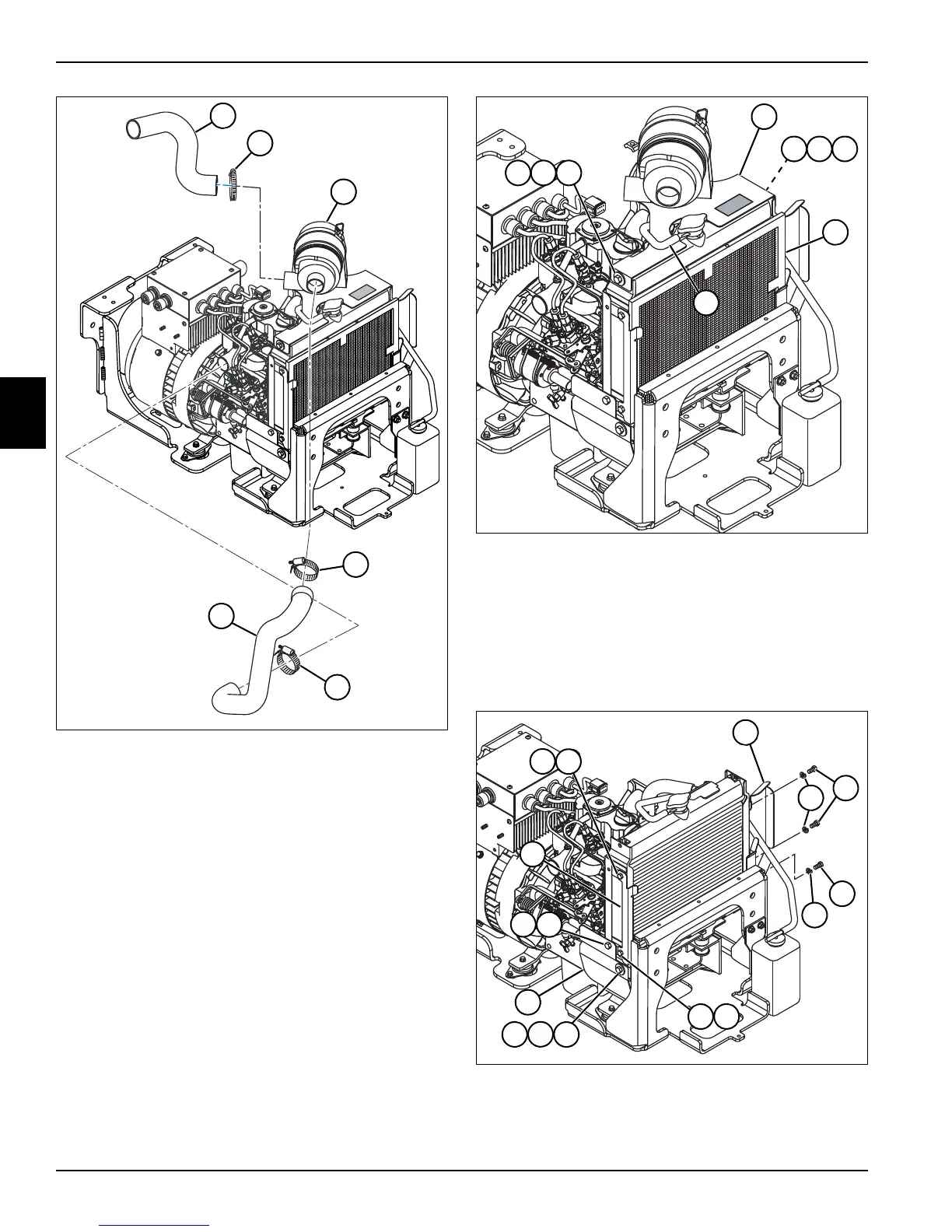

Figure 3-40
28. Loosen hose clamp (28), and remove air intake hose
(27) from air cleaner (29).
29. Loosen hose clamps (30), and remove the air
cleaner-to-air intake hose (31).
Figure 3-41
30. Disconnect overflow hose (37) and secure out of the
way.
31. Remove two screws (33), lock washers (34), and flat
washers (35).
32. Remove air cleaner bracket assembly (32).
33. Remove radiator screen (36).
Figure 3-42
34. Remove two screws (40) and lock washers (39), and
remove baffle (38).
TN4574
36
32
33 34 35
37
33 34 35
TN4575
41
42
38
49
46
43
44
45
47
48
41
42
41
42
39
40
To Next Page
