LF 3400 / LF 3800

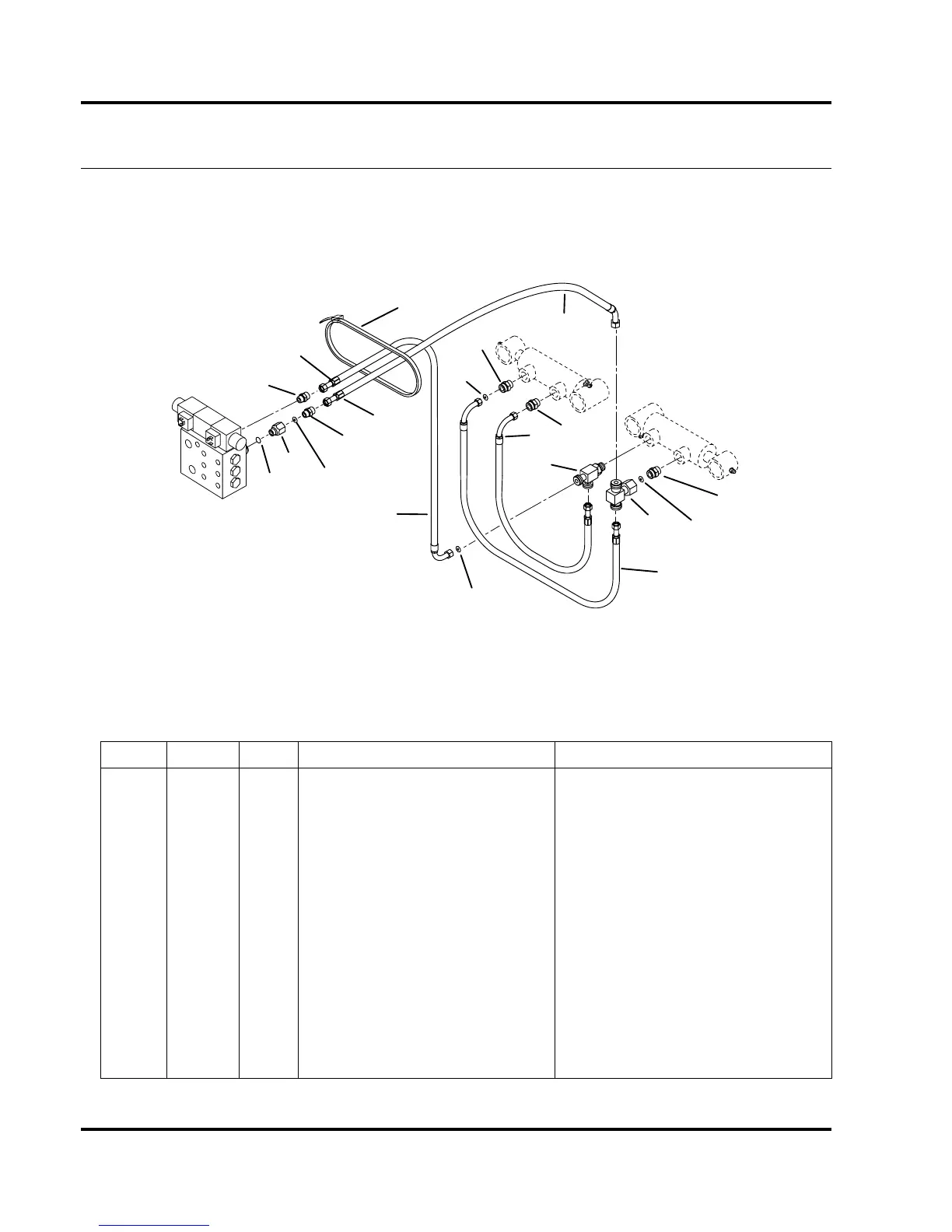

30.1 Rear Lift Hydraulics
5 Gang Units (LF 3400, LF 3800 and LF 3400 Turbo)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003352 1 Hose, Left Rear to Right Rear Base Ports
2 1003351 1 Hose, Left Rear to Right Rear Rod Ports
3 1003350 1 Hose, Lift Valve to Inside Tee Lift Valve Port 6
4 1003349 1 Hose, Lift Valve to Outside Tee Lift Valve Port 4
5 353190 1 Plate, 0.026 Orifice
6 337317 1 Fitting, One way Restrictor
7 339897 1 O-Ring
8 3000953 2 Disk, 0.040 Orifice
9 339979 5 Adaptor, Straight
10 3008392 1 Disk, 0.052 Orifice
11 340263 1 Adaptor, Tee Base Port
12 340143 1 Adaptor, Tee Rod Port
13 473142 1 Tie Wrap
