Jacobsen LF 3800 Parts And Maintenance Manual

111
> Change from previous revision
1
1
2
2
F
R
T

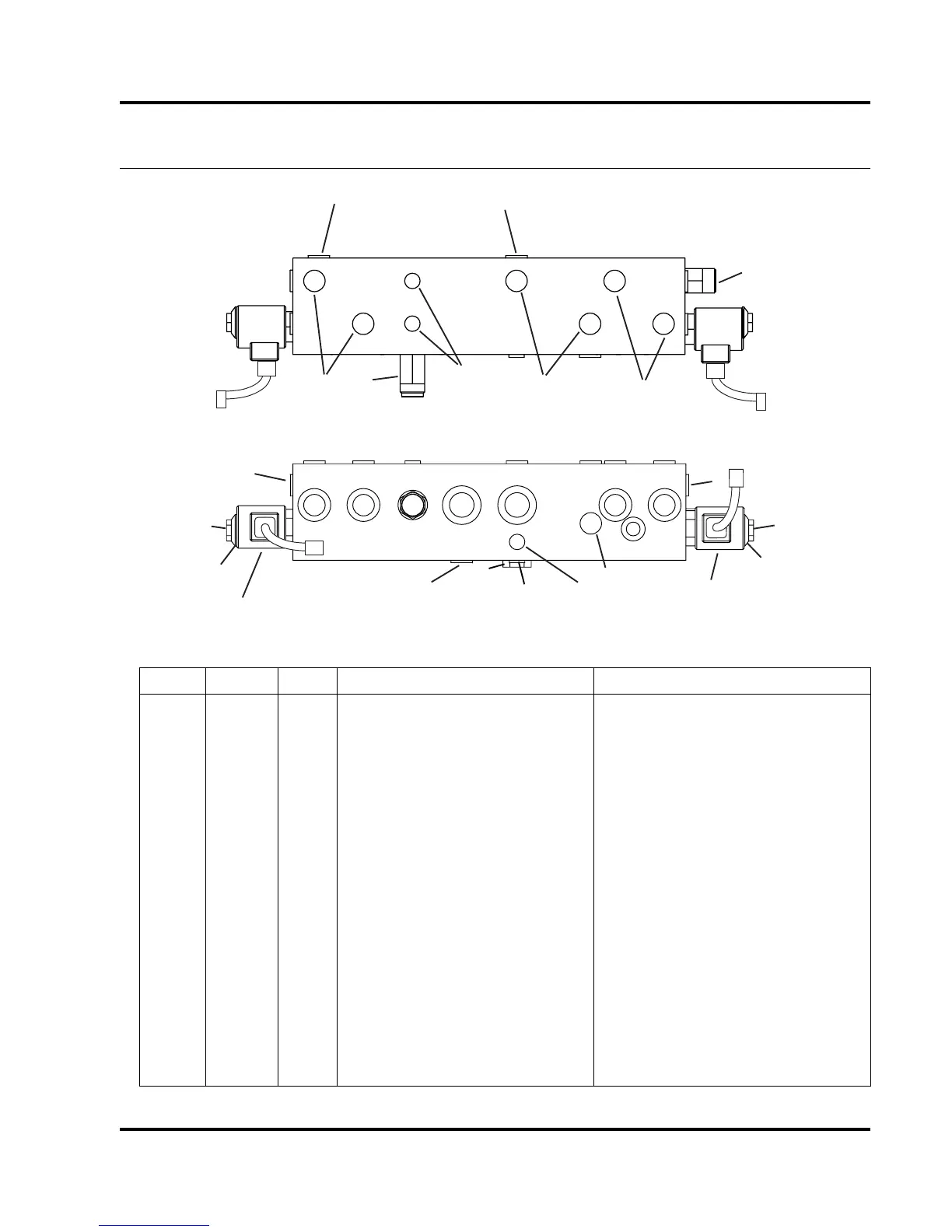

Top View
Front View
1
2
3
4
5
6
7
8
8
8
8
8
8
9
8
8
7
1
8
9
7
Item Part No. Qty. Description Serial Numbers/Notes
1
5003507 2 Coil
2 5003096 1 Solenoid Valve
5003578 1 • Solenoid Valve Seal Kit
3 5003121 1 Solenoid Valve
5003554 1 • Solenoid Valve Seal Kit
4 5003097 1 Pilot Operated 2-Way
5003580 1 • 2-Way Seal Kit
5 5003098 1 Check Valve
5003579 1 • Seal Kit
6 5003099 1 Relief Valve
5003579 1 • Seal Kit
7 5001065 4 Plug, Port
8 5002541 15 Plug, Port
9 2811254 2 Nut, Coil, with “O”-Ring
LF 4675 / LF 4677
57.1 4WD Valve
Part Number 2822500
Serial No.

Jacobsen LF 3800 Specifications

General

Cutting Width	76 inches
Transmission	Hydrostatic
Number of Reels	5
Fuel Tank Capacity	12.5 gallons
Deck Type	Floating
Cutting Height	0.25 - 1.5 inches
Speed Range	0 to 8 mph
