100
> Change from previous revision
1
2
3
4
5
6
7
8
9
7
6
LF 3400 / LF 3800

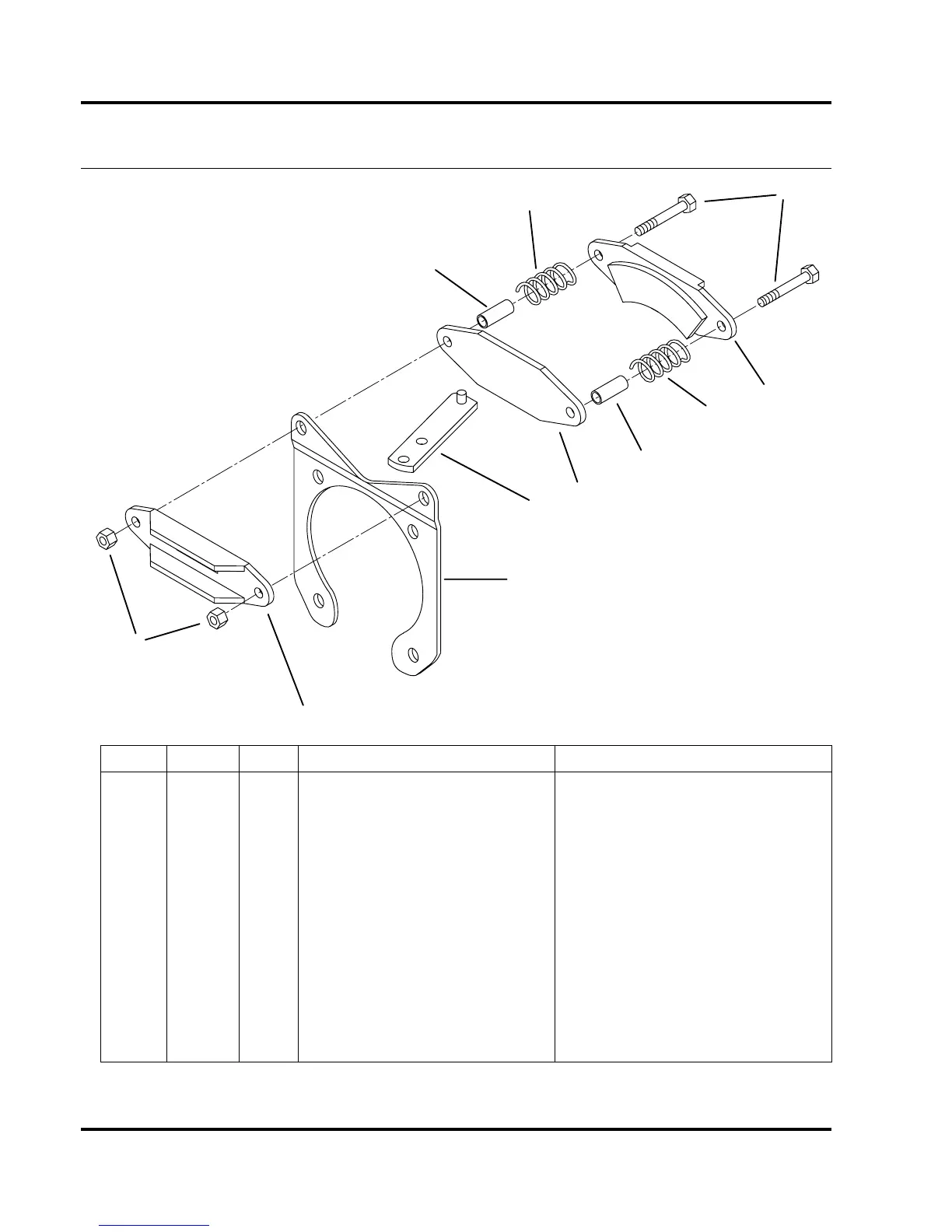

47.1 Brake Assemblies
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
340603 2 Bracket, Brake Mounting
503308 1 Disk Brake, R.H.
2500722 1 Disk Brake, L.H.
2 590259 4 • Nut, 3/8-24
3 549441 2 • V-Plate
4 502517 1 • Cam Lever
5 503296 2 • Stud Plate with Lining
6 549443 4 • Spring
7 554579 4 • Spacer, Brake
8 503295 2 • Rib Plate with Lining
9 590260 4 • Screw, 3/8-24 x 2-1/4”
