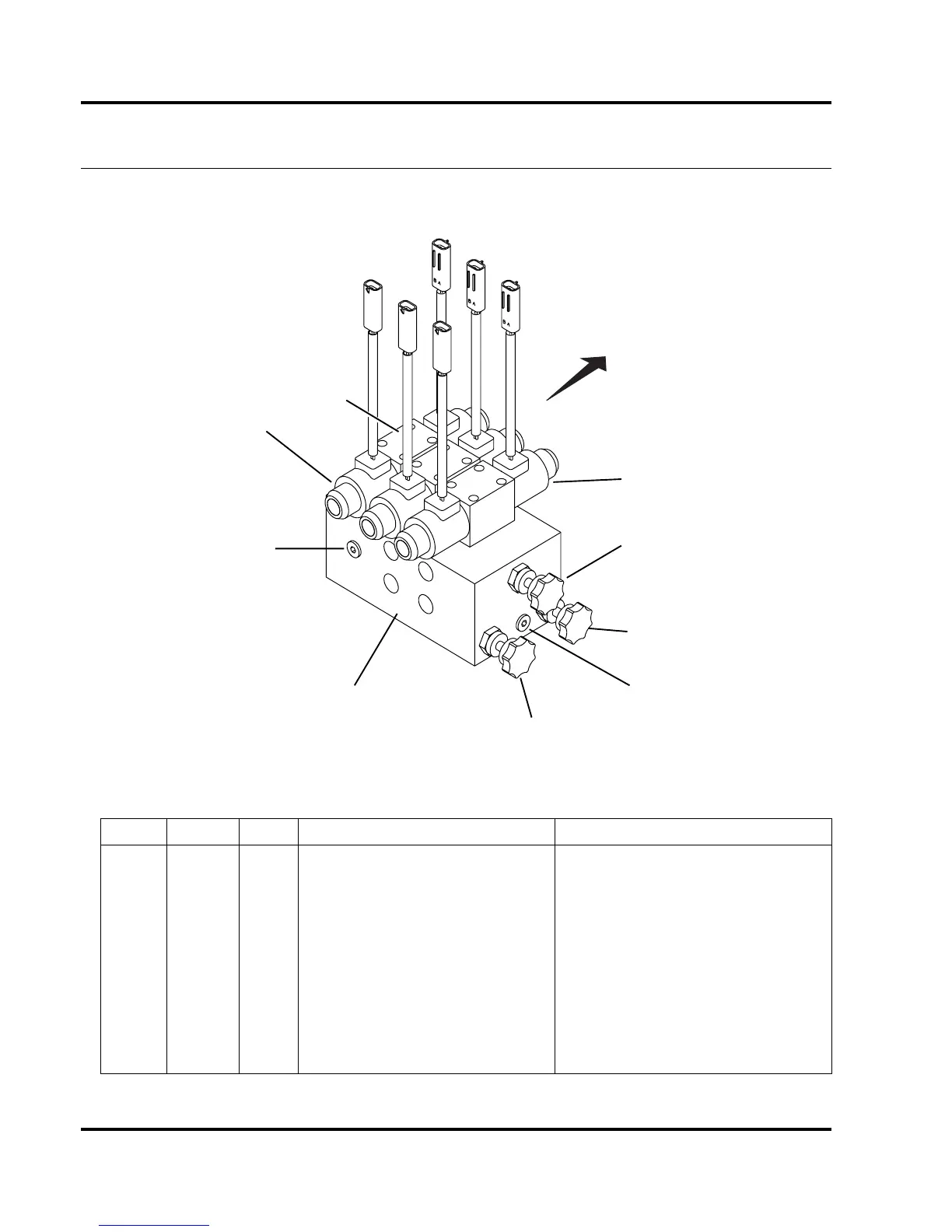

56.1 Rear Reel Valve
Part Number 1004097 (LF 4675 and LF 4677 Only)
Item Part No. Qty. Description Serial Numbers/Notes
1
----------- 1 Body
2 4101440 6 Nut, Coil Service Includes O-Rings
3 2812374 6 Coil
4 5003032 3 Solenoid Valve
339909 4 • O-RIng
5 5003080 3 Flow Control
5003579 1 • Seal Kit
6 5001065 2 Plug, Port
7 4105980 3 Knob, Flow Control
