Jacobsen LF 3800

105
> Change from previous revision
1
2
3
4
4
5
6
6
7
8
9
9
9
10
11
12
13
13
2
Used with LF 4675 and 4677 Models.
FrontRear
LF 4675 / LF 4677

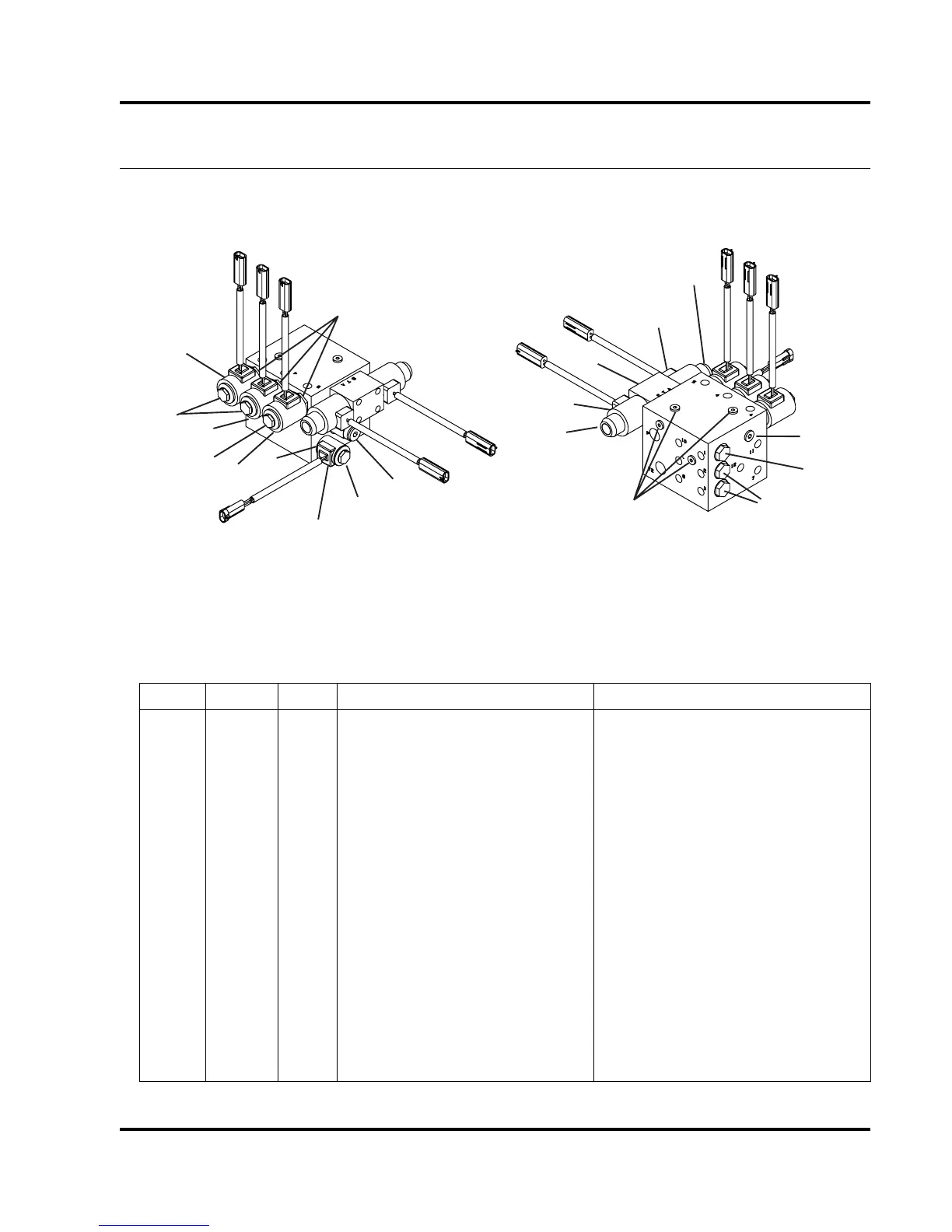

52.1 Lift Valve
Part Number 1004096
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
5003144 1 Relief Valve
5003579 1 • Seal Kit
2 5001355 3 Pilot Operated Check Valve
5003578 1 • Seal Kit
3 5003032 1 Solenoid Valve, Lift / Lower
339909 4 • O-Ring
4 2812374 2 Coil
5 5002157 10 Plug, Port
6 4101440 2 Nut, Coil (Includes O-Rings)
7 5003508 1 Coil
8 2812373 1 Solenoid Valve Front Circuit
5003578 1 • Seal Kit
9 5003507 3 Coil
10 2812372 3 Solenoid Valve Wing and Rear Circuits
5003578 1 • Seal Kit
11 5001065 1 Plug, Port
12 2811254 3 Nut, Coil Service
13 2811353 1 Nut, Coil Service
