2 SPECIFICATIONS
8
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION_________________________________________________
67963.............................. LF 4677 Turbo, 4WD with ROPS,
uses 7 in. (17.8 cm) diameter reel

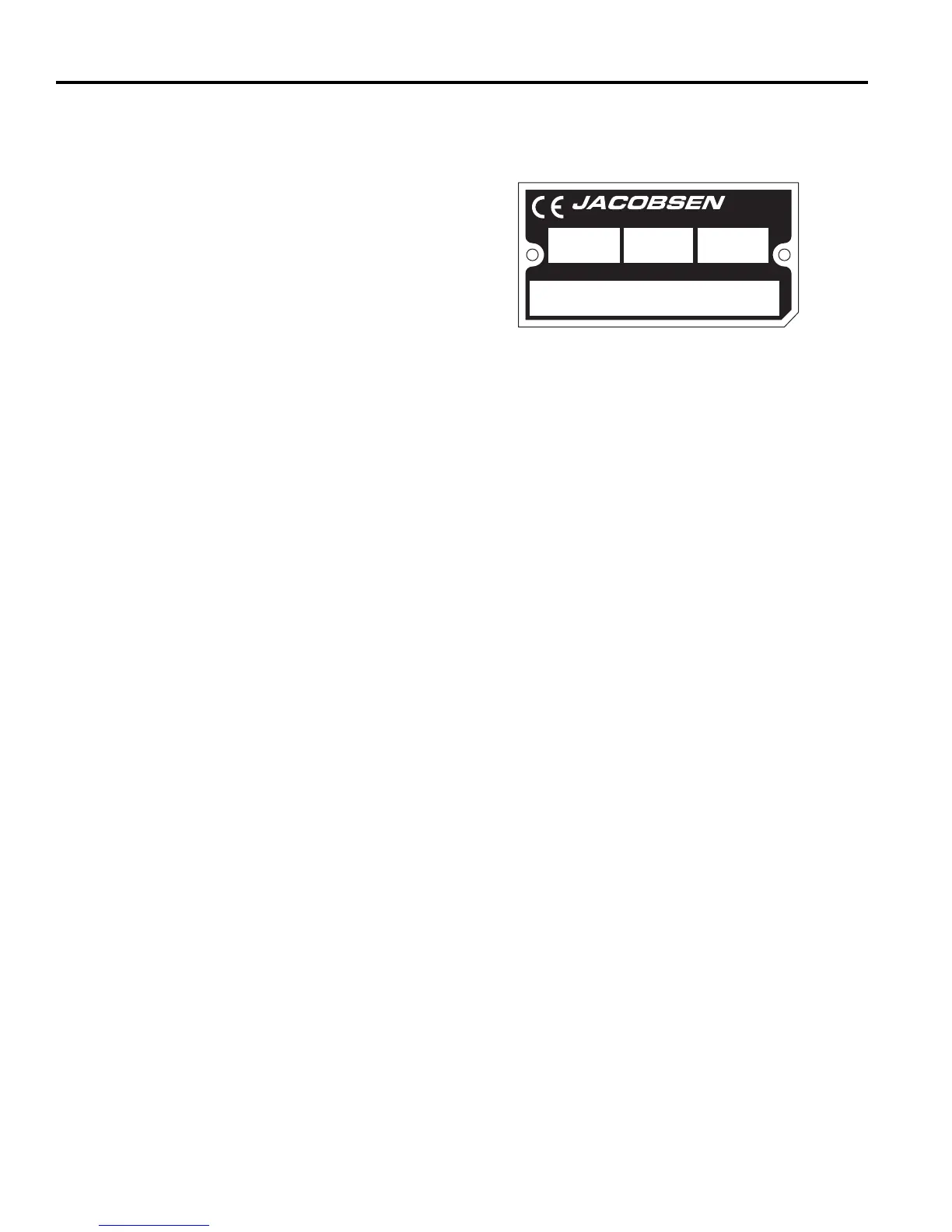

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the frame of the
mower and is located on the
operator’s right just over the rear
axle.
Always provide the serial number of the unit when ordering
replacement parts or requesting service information.
2.2 V1505-TE ENGINE _________________________________________________________
Make ............................... Kubota
Model .............................. V-1505T-E3B diesel, 4 cycle,
liquid cooled
Horsepower .................... 44.2 Hp (33.0 Kw) @ 3000 rpm
Displacement .................. 91.4 in.
3
(1498 cm
3
)
Torque............................. 93 ft. lbs. (1357 Nm)
Fuel:
Type .......................... #2, low or ultra-low sulfur, diesel
Rating ....................... Min. cetane rating 45
Capacity.................... 17 U.S gal. (64.3 liters)
Governor Setting:
High Idle ................... 3150 rpm
Low Idle .................... 1200 rpm
Lubrication:
Capacity.................... 5 U.S. qts. (4.7 liter)
Type.......................... SAE 10W30
API Classification...... CD/CE
Air Filter .......................... Donaldson, dry type with
evacuator valve and service
indicator.
Alternator........................ 40 Amp
2.3 MOWER _________________________________________________________________
Tires:
Front ........................ 26.5 x 14 - 12: (4 ply)
Rear ......................... 20 x 10 - 8: (2 ply)
Pressure ................... 10-12 psi (69 - 83 kPa)
Battery:
Type .......................... 12V, 600 Cold Cranking Amps
Group........................ BCI 24
Brakes:
Service ..................... Dynamic braking through traction
circuit.
Parking...................... 9.25 in. (23.5 cm) front disc
Speed:
Mow ......................... 0 - 7 mph (0 - 11 kph)
Transport - 2 WD ...... 0 - 12 mph (0 -19 kph)
Reverse ................... 0 - 5 mph (0 - 8 kph)
Production ...................... 5.7 acres/hr. @ 7 mph
Hydraulic System:
Capacity.......................... 14 U.S. gal. (37.85 liter)
Fluid Type....................... 10W30 or Greens Care 68
Cooling ........................... Oil Cooler
Charge Filter................... 10 micron
Return Line Filter............ 10 micron
Steering ......................... Hydrostatic power steering
11524 WILMAR BLVD,
CHARLOTTE, NC 28273
®
kg kW
1-800-848-1636 (US)
PRODUCT OF U.S.A.
A Textron Company
1175 33.0 XXXX
67963001651
