2-2 4234520 First Edition
SPECIFICATIONS AND GENERAL INFORMATION
2
Mower Identification

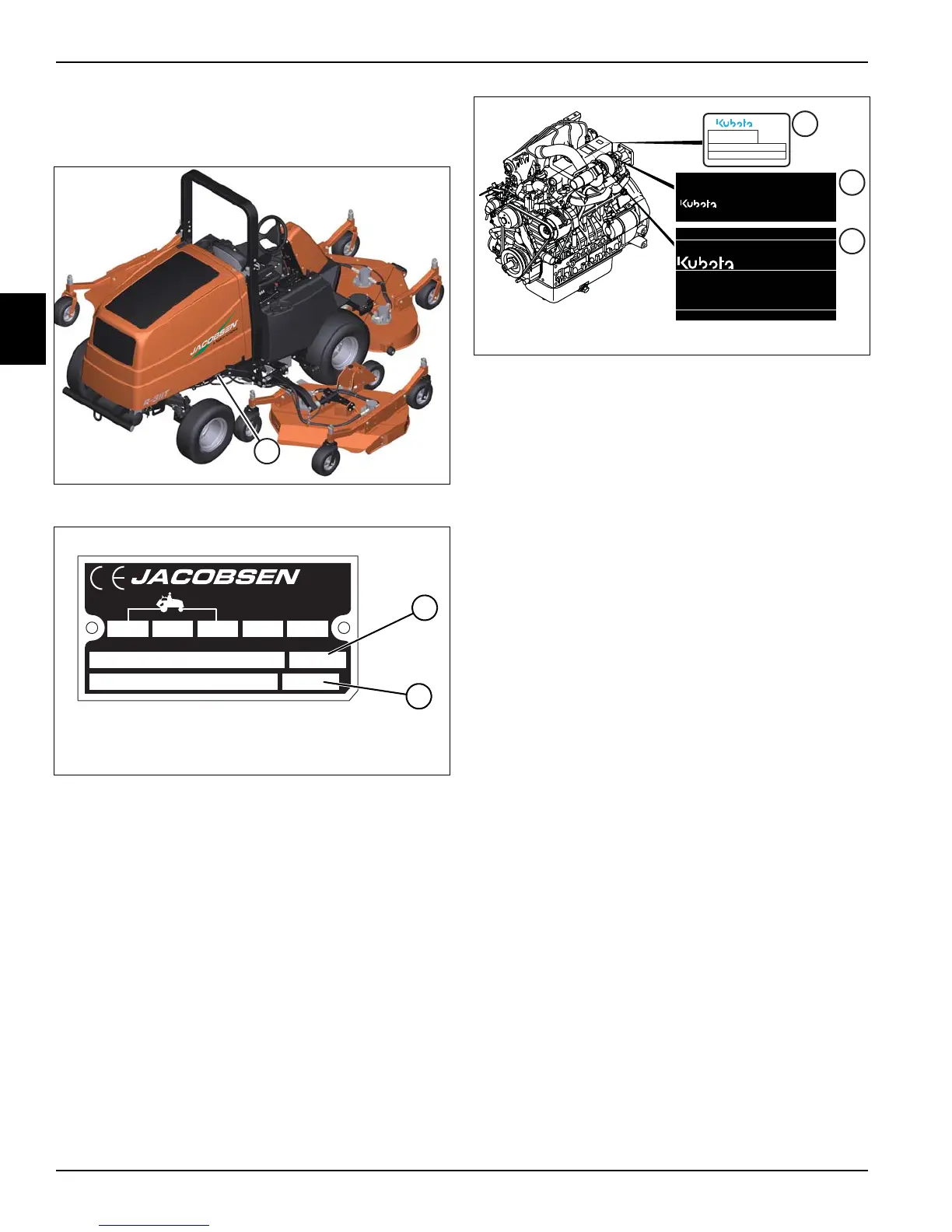

See Figures 2-1 through 2-3.
Figure 2-1
Figure 2-2
Serial Number
An identification plate (1) listing the product number (2)
and serial number (3) is attached to the frame of the
mower and is located just ahead of the rear axle on the
right side. Always provide the serial number of the unit
when ordering replacement parts or requesting service
information.
Figure 2-3
Engine Serial Number
The engine serial number and the engine code is located
on a plate (4) attached to the top of the rocker arm cover.
The are also engine data tags (5) and (6) that can be
found on the rocker arm cover. Data on the tags include:
engine model, family, power, valve adjustment
specifications, injector timing information, and engine
displacement.
Optional Machine Accessories
This manual is structured to cover all basic machine
components and repair. The addition of accessories can
affect certain troubleshooting, adjustment, and repair
procedures.
®
P.O. BOX 7708,
CHARLOTTE,
NC 28241, USA
A Textron Company
kg kg kg kW
Jacobsen.com
1-800-848-1636 (US)
PRODUCT OF U.S.A.
R-311T
WIDE AREA ROTARY MOWERS
44.1
69171
1651
XXXX
TYPE :V2403–M–T–EU5
FAMILY :8KBXL02.4HAD
APPROVAL NUMBER :e1✶97/68JA✶2004/26✶0467✶01
KUBOTA Corporation
KUBOTA Corporation
EMISSION CONTROL INFORMATION
CONTACT KUBOTA FOR FUEL SETTING.
THIS ENGINE MEETS 2009 Int. Tier 4 EMISSION REGULATIONS
FOR U. S. EPA AND CALIFORNIA NONROAD CI ENGINES.
MODEL : V2403–M–T–ET06 ENGINE DISP.: 2.4L
FAMILY : 9KBXL02.4HAD ECS: EM
POWER : 41.7kW/2600 RPM CATEGORY:37–56kW PM:0.36
VALVE CLEARANCE (COLD) : IN 0.20mm EX 0.20mm
INJ. TIMING : 9.25 DEG BTDC
LOW SULFUR DIESEL OR ULTRA LOW SULFUR DIESEL FUEL ONLY
V2403–T
Serial No.:
Code No.:
XXXXXX
1J403-18000
4
5
6
