ENGINE
3
Radiator/Oil Coolers
Removal and Installation

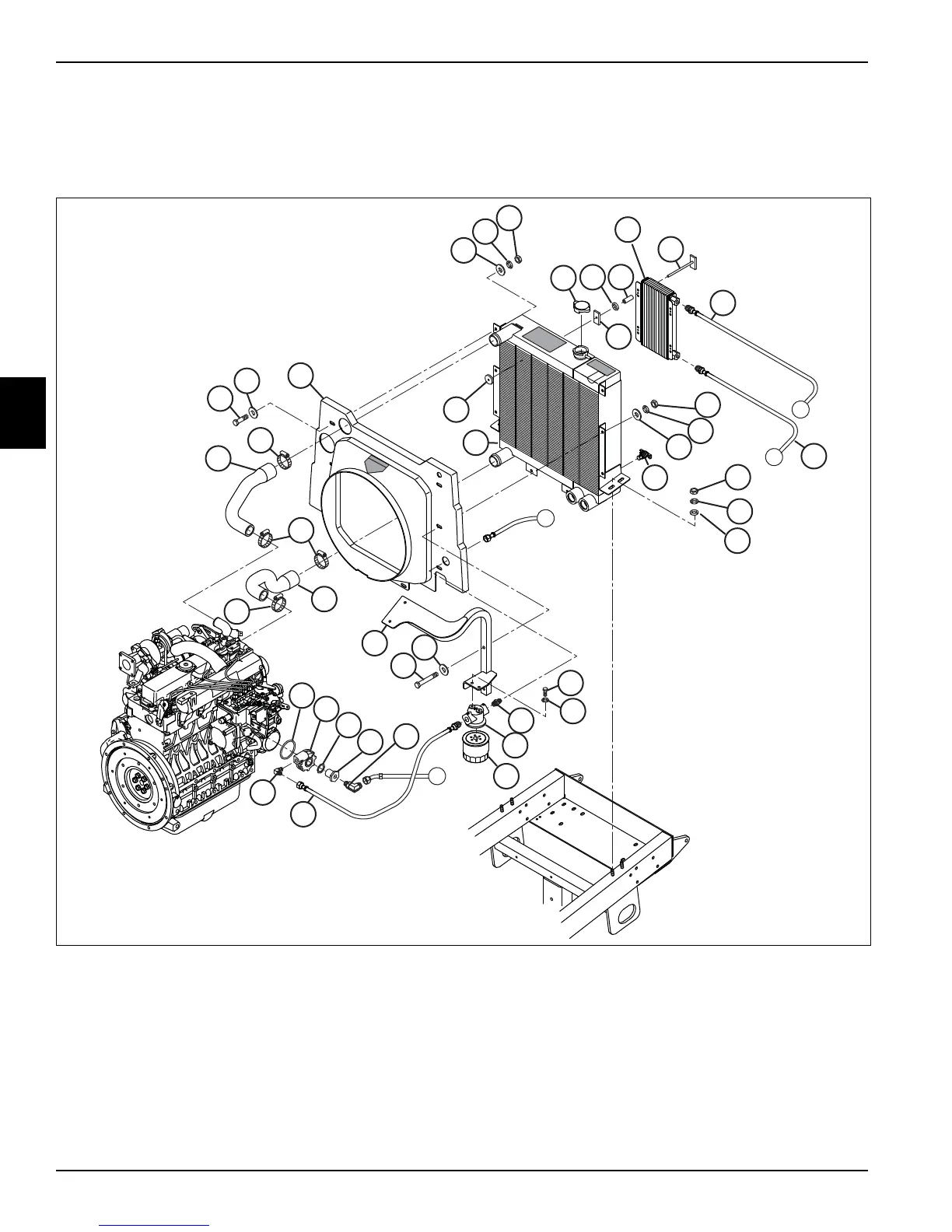

See Figures 3-13.
Figure 3-13
1 Upper Radiator Hose 9 Radiator 17 Draincock 26 Adapter
2 Hose Clamp (4) 10 Oil Cooler Mounting Tie (4) 18 Screw (2) 27 O-Ring
3 Screw (2) 11 Flat Washer (4) 19 Air Cleaner Support 28 Engine Oil Filter Adapter
4 Screw(4) 12 Oil Cooler Spacer (4) 20 Engine Oil Filter Head 29 Washer
5 Radiator Shroud 13 Radiator Cap 21 Engine Oil Filter 30 Lower Radiator Hose
6 Flat Washer (12) 14 Engine Oil Cooler 22 Adapter 31 Flat Washer (4)
7 Lock Washer (10) 15 Filter Head to Cooler Hose 23 Adapter 32 Lock Washer (2)
8 Nut (10) 16 Cooler to Engine Oil Adapter Hose 24 Engine Oil Filter Plug
25 Engine Filter Adapter to Filter
Head Hose
B
A
A
B
1
2
2
2
3
4
5
6
6
6
6
7
7
7
8
8
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
