Jacobsen R-311T Technical/Repair Manual

2-4 4234520 First Edition
SPECIFICATIONS AND GENERAL INFORMATION
2

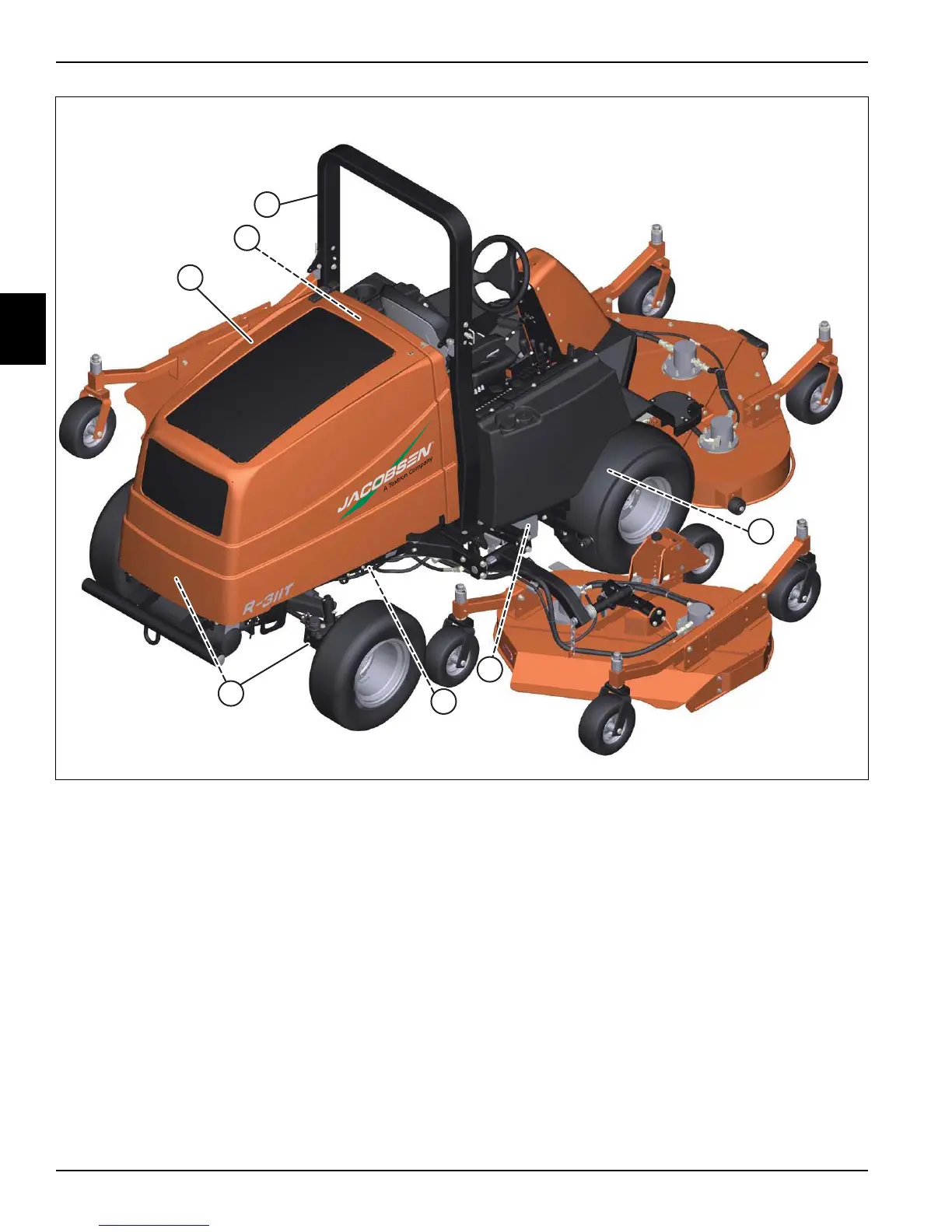

Figure 2-5: Component Location—Right Side
1 ROPS 5 Control Valve
2 Hydraulic Oil Tank 6 Hood
3 Rear Wheel Motor (2) 7 Front Differential
44WD Valve
1
2
3
4
5
6
7
TN9963

Jacobsen R-311T Specifications

General

Brand	Jacobsen
Model	R-311T
Category	Lawn Mower
Language	English
