Jacuzzi HD85000 - Specifications for 6042, 6636 and 7242

Technical Specifi cations Manual
Page 10
www.jacuzzi.com Technical Specifi cations
English
Elara™ Whirlpool Bath

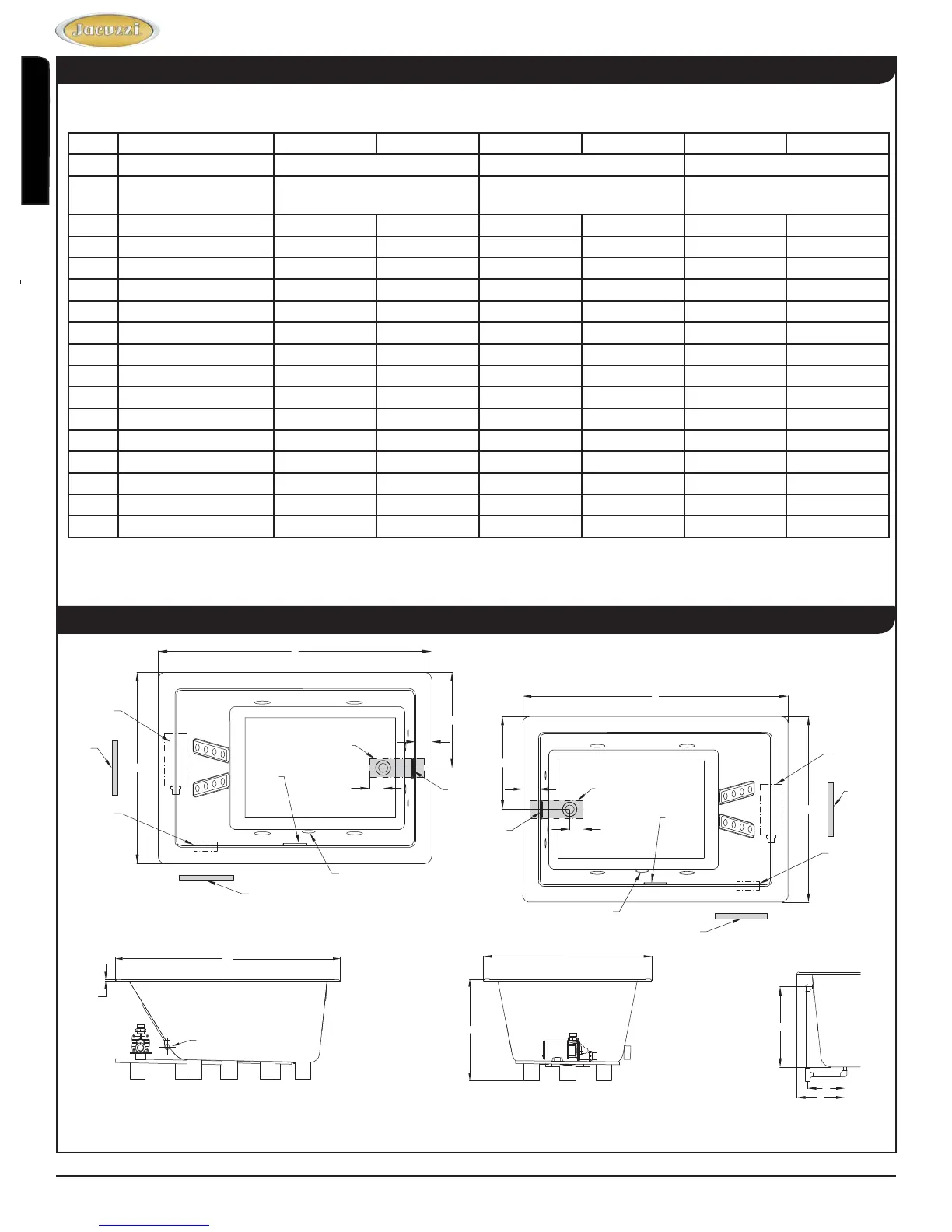

KEY DIMENSIONS
Specifi cations for 6042, 6636 and 7242
Letter Description English Metric English Metric English Metric
-
Drain/Motor Location End drain/Right or Left end motor End drain/Right or Left end motor End drain/Right or Left end motor
-
Cutout Template Provided P/N DQ50000
58" x 40" Drop-In Cutout
Template Provided P/N DQ51000
64" x 34" Drop-In Cutout
Template Provided P/N BZ50000
70" x 40" Drop-In Cutout
-
Total Weight 1168 lbs 531 kg 1133 lbs 515 kg 1388 lbs 631 kg
-
Floor Loading 66.7 lb/ft
2
325 kg/m
2
68.7 lb/ft
2
335 kg/m
2
66.1 lb/ft
2
323 kg/m
2
-
Operating Gallons (Min/Max) 83G/ 94G 314.2L / 356L 78G/ 89G 295.3L / 337L 107G/ 117G 405L / 443L
-
Product Weight 135 lbs 61 kg 142 lbs 65 kg 163 lbs 74 kg
L
Outer Length 60" 1524mm 66" 1676mm 72" 1829mm
W
Outer Width 42" 1067mm 36" 915mm 42" 1067mm
H
Overall Height 26" 660mm 26˝ 660mm 26˝ 660mm
A
Overfl ow Height 18½" 470mm 18½" 470mm 18½" 470mm
B
Long Edge to Drain Center 10⅝" 269mm 10⅝" 269mm 10⅝" 269mm
C
Short Edge to Drain Center 21" 533mm 18" 457mm 21" 533mm
D
Drain Shoe Length 6" 152mm 6" 152mm 6" 152mm
E
Deck Height ½" 13mm ½" 13mm ½" 13mm
F
Deck Width 4¼" 107mm 4¼" 107mm 4¼" 107mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
6636 7242
6042
Side View
Drain/Overfl owEnd View
Overfl ow
F
I
Suction Fitting
Control
Panel
(G) Primary
Service
Motor
3"
(Heater)
(Motor)
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Heater
(G) Secondary
Service Access
L
W
C
L
E
Access
Overfl ow
Control
Panel
Suction Fitting
Motor
(G) Primary
Service
Access
Heater
Elara RH
Elara LH
(G) Secondary
Service Access
F
L
C
I
3"
W
(Motor)
(Heater)
W
H
A
D
B
