Jacuzzi HD85000 - Acero Whirlpool Bath; Key Dimensions; Specifications for 6636 and 7242

Technical Specifi cations Manual
Page 4
www.jacuzzi.com Technical Specifi cations
English
Acero™ Whirlpool Bath

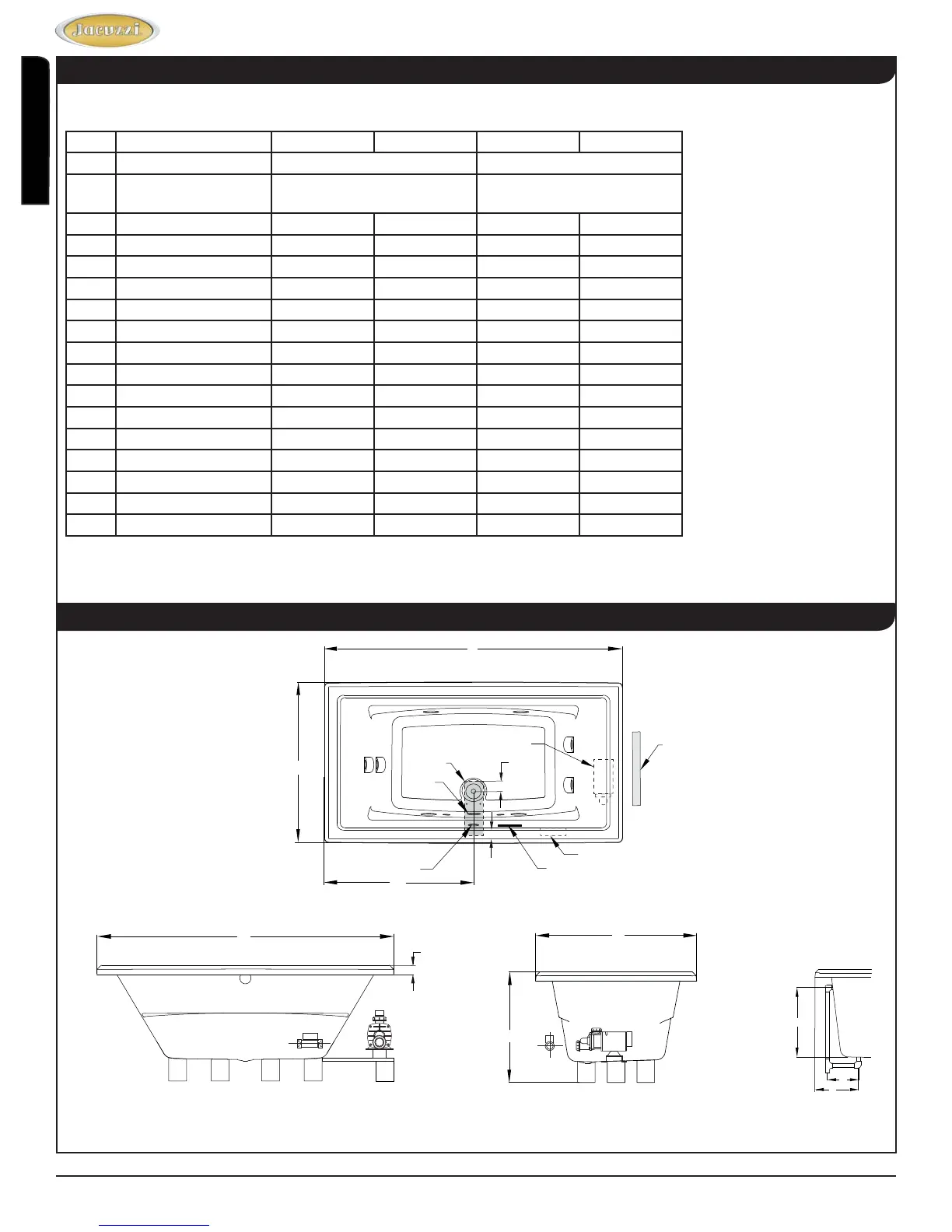

KEY DIMENSIONS
Specifi cations for 6636 and 7242
Letter Description English Metric English Metric
-
Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-
Cutout Template Provided P/N HQ06000
64" x 34" Drop-In Cutout
Template Provided P/N HQ46000
70" x 40" Drop-In Cutout
-
Total Weight 1042 lbs 474 kg 1266 lbs 574 kg
-
Floor Loading 63.4 lb/ft
2
309 kg/m
2
60.3 lb/ft
2
294.4 kg/m
2
-
Operating Gallons (Min/Max) 44G/ 78G 166.7L / 295L 57G/104G 216L/394L
-
Product Weight 142 lbs 65 kg 150 lbs 68 kg
L
Outer Length 65¾" 1670mm 72" 1829mm
W
Outer Width 36" 914mm 42" 1067mm
H
Overall Height 25" 635mm 25" 635mm
A
Overfl ow Height 17⅞" 454mm 17⅞" 454mm
B
Long Edge to Drain Center
11
/
/
16
16
15
15
"
303mm
11
/
/
16
16
15
15
"
303mm
C
Short Edge to Drain Center 33" 838mm 36" 915mm
D
Drain Shoe Length 7⅞" 200mm 7⅞" 200mm
E
Deck Height 2" 51mm 2" 51mm
F
Deck Width 4" 102mm 4" 102mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 356mm x 102mm
6636 7242
Side View End View Drain/Overfl ow
Control Panel
Overfl ow
Motor
Suction
Fitting
Heater
(G) Service
Access
3"
I
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
F
(Heater)
(Motor)
L
E
A
D
B
(Motor)
(Heater)
H
W
Note: Drain installation
is non-standard. Vertical
overfl ow connection
requires offset.
