Jacuzzi HD85000 - Specifications for 6042, 6642 and 7242

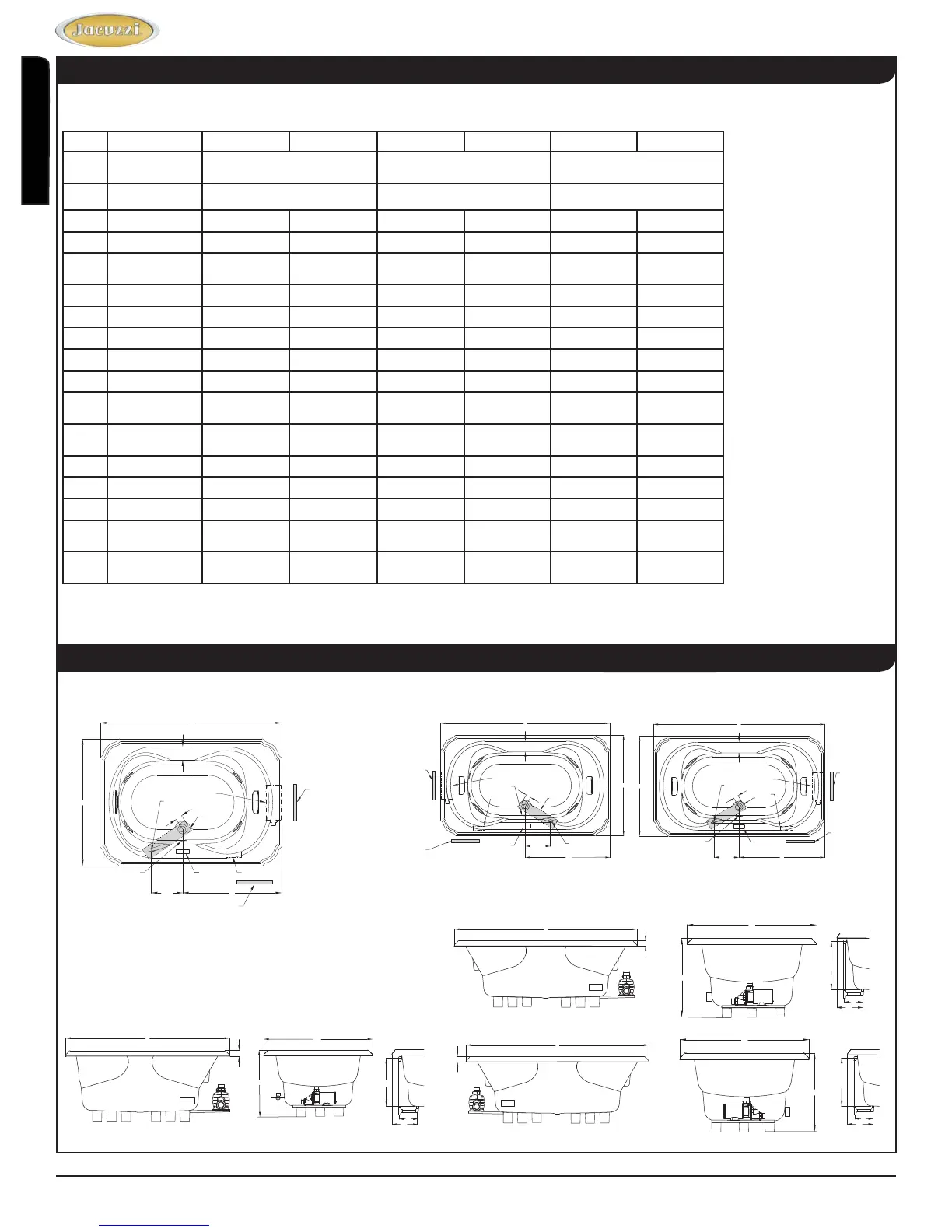

Technical Specifi cations Manual
Page 6
www.jacuzzi.com Technical Specifi cations
English
Side View
End View
Drain/Overfl ow
Bellavista™ Whirlpool Bath
KEY DIMENSIONS
Specifi cations for 6042, 6642 and 7242
Letter Description English Metric English Metric English Metric
-
Drain/Motor
Location
Center drain/Right end motor Center drain/Right end motor
Center drain/Right or Left end motor
-
Cutout Template Template Provided P/N P187000 Template Provided P/N P187000 Template Provided P/N P187000
-
Total Weight 1041 lbs 473 kg 1113 lbs 506 kg 1233 lbs 560 kg
-
Floor Loading 60.1 lb/ft
2
293 kg/m
2
57.8 lb/ft
2
282 kg/m
2
58.7 lb/ft
2
286 kg/m
2
-
Operating Gallons
(Min/Max)
63G / 78G 238.5L / 295L 69G / 88G 261.2L / 333L 84G / 95G 318L / 360L
-
Product Weight 141 lbs 64 kg 130 lbs 59 kg 142 lbs 65 kg
L
Outer Length 59¾" 1518mm 66" 1676mm 72" 1829mm
W
Outer Width
41¾
"
1060mm 42" 1067mm 42" 1067mm
H
Overall Height
26
"
660mm 26" 660mm 26" 660mm
A
Overfl ow Height
20
"
508mm
20
"
508mm
20
"
508mm
B
Long Edge to
Drain Center
11¾
"
298mm
11¾
"
298mm
11¾
"
298mm
C
Short Edge to
Drain Center
32½
"
826mm 35½" 902mm 36" 914mm
D
Drain Shoe Length
6
"
152mm
6
"
152mm
6
"
152mm
E
Deck Height
2
"
51mm
2
"
51mm
2
"
51mm
F
Deck Width
3
"
76mm
3
"
76mm
3
"
76mm
G
Service Access
Dimensions
12
" x 18"
305mm x 457mm
12
" x 18"
305mm x 457mm
12
" x 18"
305mm x 457mm
I
Floor Cutout for
Drain
17
" x 4"
432mm x 102mm
17
" x 4"
432mm x 102mm
17
" x 4"
432mm x 102mm
6042 6642 7242
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Overfl ow
Motor
Suction Fitting
(G) Primary
Service Access
(G) Secondary
Service Access
Control
Panel
Heater
3"
I
F
C
10.5"
W
L
(Heater)
(Motor)
E
L
(Motor)
W
H
A
D
B
Side View
End View
Drain/Overfl ow
A
D
B
Bellavista RH 7242
Bellavista LH 7242
Overfl ow
Motor
Heater
I
3"
Suction Fitting
(G) Primary
Service
10.5"
C
Control
Panel
L
F
W
L
F
W
C
Overfl ow
Motor
Heater
Suction
Fitting
3"
I
(G) Secondary
Service Access
(G) Primary
Service Access
Control
Panel
10.5"
(Heater)
(Motor)
L
E
H
(Motor)
W
A
D
B
(Heater)
(Motor)
L
E
H
(Motor)
W
Bellavista RH 6042 & 6646
Bellavista LH 7242
Bellavista RH 7242
Access
(G) Secondary
Service
Access
Bellavista RH 6042 & 6646
